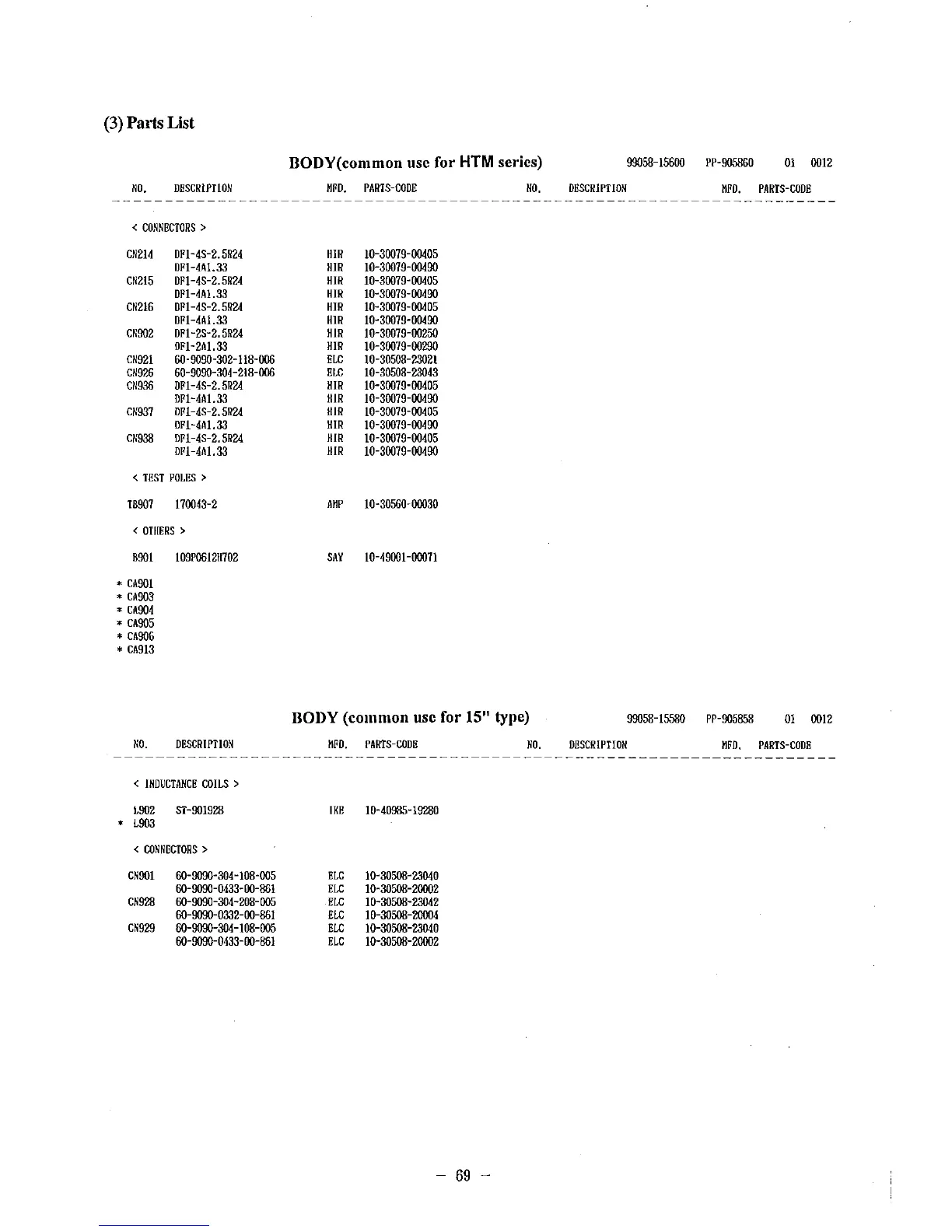

(3) Parts List
BODY(common use for HTM series)
99058-15600 PP-905860
01 0012
NO. DESCRIPTION
MFD. PARTS-CODE
NO. DESCRIPTION MFO. PARIS-CODE
< CONNECTORS >
CN214 DF1-4S-2.5R24 HIR 10-30079-00405
DF!-4H.33 IIIR 10-30079-00490
CN215
DF!-4S-2.5R24 HIR 10-30079-00405
DF1-4Al.33 HIR 10-30079-00490
CN216
DP1-4S-2.5R24 HIR 10-30079-00405
DF!-4Al.33 HIR 10-30079-00490
CN902 DP1-2S-2. 5R24 HIR 10-30079-00250
0Fl-2Al.33 HIR 10-30079-00290
CN921 60·9090-302-118-006 ELC 10-30508-23021
CN926
60-9090-304-218-006 BLC 10-30508-23043
CN936
OP1-4S-2.5R24 HIR 10-30079-00405
0Pl-4Al.33 IIIR I0-30079-00490
CN937 0Pl-4S-2.5R24 IIIR I0-30079-00405
DP1-4Al. 33 HIR 10-30079-00490
CN938 0Fl-4S-2.5R24 IIIR I0-30079-00405
0Fl-4Al. 33 IIIR 10-30079-00490
< 1EST POLES >
18907 170043-2
AMP 10-30560-00030
< OTHERS >
B901 109P061211702 SA! I0-49001-00071
* CA901
* CA903
* CA904
* CA905
* CA906
* CA913
BODY (common use for 15" type) 99058-15580 PP-905858
01 0012
NO. DESCRIPTION
IIFD. PARTS-CODE
NO. DESCRIPTION IIFD. PARTS-CODE
< INDUCTANCE COILS>
!,902 ST-901928 IKB 10-40985-19280
• l,903
< CONNECTORS >
CN901 60-9090-304-IOB-005 BLC 10-30508-23040
60-9090-0433-00-861
ELC 10-30508-20002
CN928 60-9090-304-208-005
ELC 10-30508-23042
60-9090-0332-00-861 BLC 10-30508-20004
CN929 60-9090-304-108-005
BLC 10-30508-23040
60-9090-0433-00-861
ELC 10-30508-20002
- 69 -
