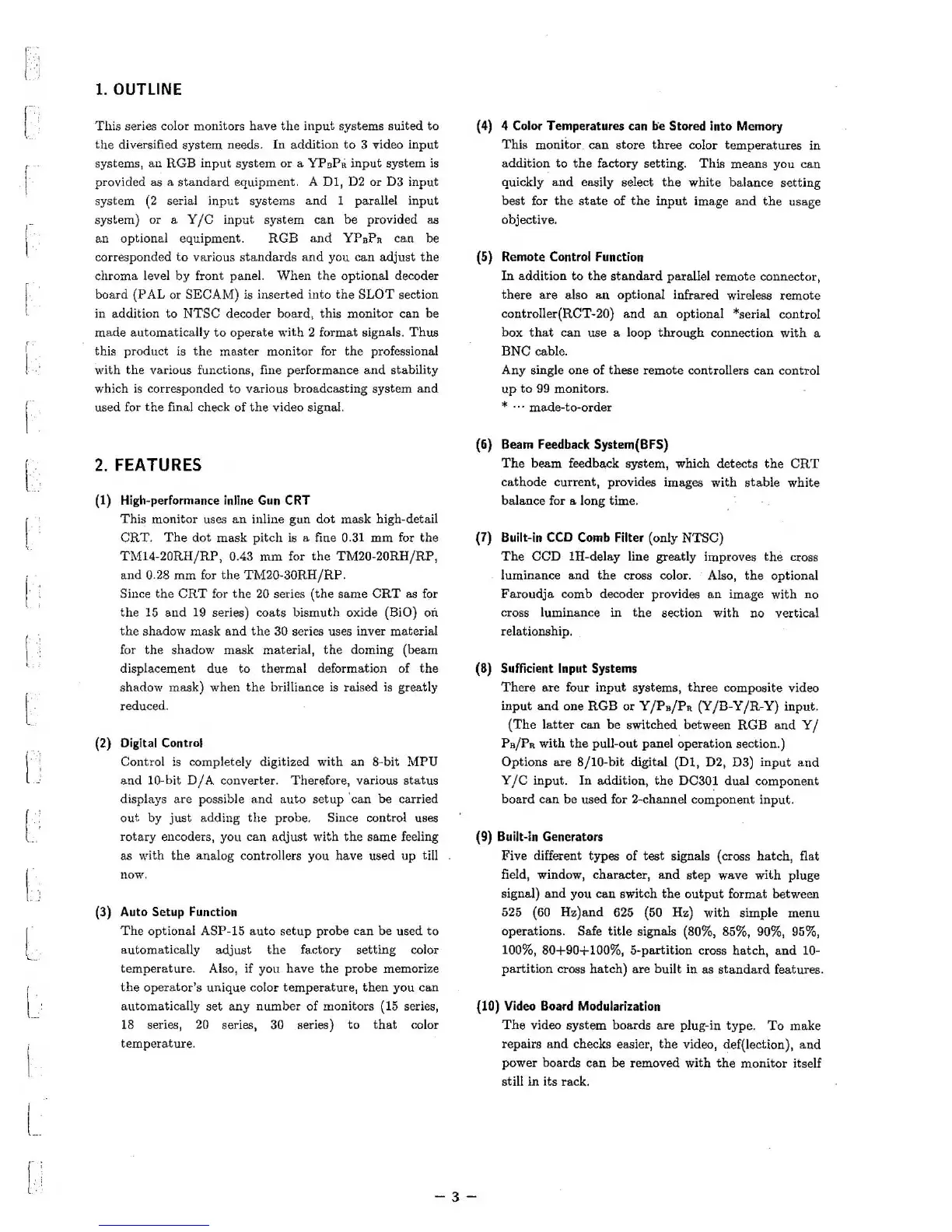

1. OUTLINE
This series color monitors have th e input systems suited to
the diversified system needs. In addition to 3 video input
systems, au RGB input system or a
YPoPn input system is
provided
as a stand ard equipmen t. A Dl, D2 or D3 input
syste m (2 serial inpu t systems and 1 parallel input
system) or a
Y / C inpu t system can be provided as
an optiona l equipm ent, RGB and
YPnPn can be
corresponded to various standard s and you can adjust the
chroma level by front pane l. When the optional decoder
board (P AL or SEC AM) is inserted into the SLOT section
in addition to NTSC decoder board, this monitor can be
made aut omatic ally to operate
with 2 format signals. Thus
th is product is the maste r monitor for th e professional
with the various functions, fine performa nce and stability
which is corresponded to various broadcasting system and
used for the final check of th e video signal.
2. FEATURES
(1) High-performance inline Gun CRT
This monitor uses an iuline gun dot mask high-deta il
CRT. The dot mask pitch is
a fine 0.31 mm for the
TM14-20RH / RP , 0.43 mm for th e TM20-20RH/ RP,
and 0.28 mm for the TM20-30RH/ RP.
Since the CRT for the 20 series (the same CRT as
f9r
the 15 and 19 series) coats bismuth oxide (BiO) on
th e shadow mask and th e 30 series uses inver material
for the shadow mask mat erial, th e doming (beam
displacement due to thermal deformation of the
shadow mask) when the brilliance is raised is greatly
reduced.
(2) Digital Control
Control is completely digitized with an 8-bit MPU
and 10-bit D / A converter . Therefore, various status
displays are possible and aut o setup
'can be carried
out by just adding th e probe. Since control uses
rotary encoders, you can adjust with the same feeling
as with the analog contr ollers you have used up till
now.
(3) Auto Setup Function
The optional ASP-15 auto setup probe can be used to
automat ically adjust the factory setting color
tem perature . Also, if you have the probe memorize
the operator's unique color temper ature, th en you can
automati cally set any number of monitors (15 series,
18 series, 20 series , 30 series) t o that color
temperat ure.
(4) 4 Color Temperatures can he Stored Into Memory
This monitor can store three color temperatures in
addition to the factory setting. This means you
can
quickly and easily select the whit e balance sett ing
best for th e state of the input image and the usage
objective .
(5) Remote Control Function
In addition to the standard parallel remote connector,
there
are also an opt ional infrared wireless remote
controller(RCT-2 0) and an optiona l *serial control
box that can use
a loop through connection with a
BNC
cable.
Any single one of these remote contro llers can control
up to 99 monitors.
*
.. · mad e-to-order
(6) Beam Feedback System(BFS)
The beam feedback system, which detec ts the CRT
cathode current, provides
images with stab le white
balanc e for
a long time.
(7) Built-in CCD Comb Filter ( only NTSC )
The CCD lH -delay line greatl y improves th e cross
luminance and the cross color. Also, the optional
Faroudja comb decoder provides
an image with no
cross luminance in the section with no vertical
relationsh ip.
(8) Sufficient Input Systems
Th ere are four input systems, thr ee composite video
input and one RG B or
Y/ PB/Pn (Y/ B-Y/R -Y) input.
(Th e lat ter can be switched between RGB and Y /
Pa/Pa with the pull-out pan el ~peration section.)
Optio ns are
8/ 10-bit digital (Dl , D2, D3) input and
Y / C input. In addition , th e DC301 dual component
board can be used for 2-chann el component input .
(9) Built-in Generators
Five different types of test signals ( cross hatch, flat
field, window, chara cter,
and step wave with pluge
signal) and you
can switch the outp ut format between
525 (60 Hz)and 625 (50 Hz) with simp le menu
operations. Safe title signals (80%, 85%, 90%, 95%,
100%, 80+90+100 %, 5-partition cross hatch, and
10-
partition cross hat ch) are built in as sta ndard features .
(10) Video Board Modularization
Th e video syste m boards are plug-in type. To make
repairs and checks
easier, th e video, def(lection), and
power boards can be removed with the monitor itself
still in its rack.
-3 -
