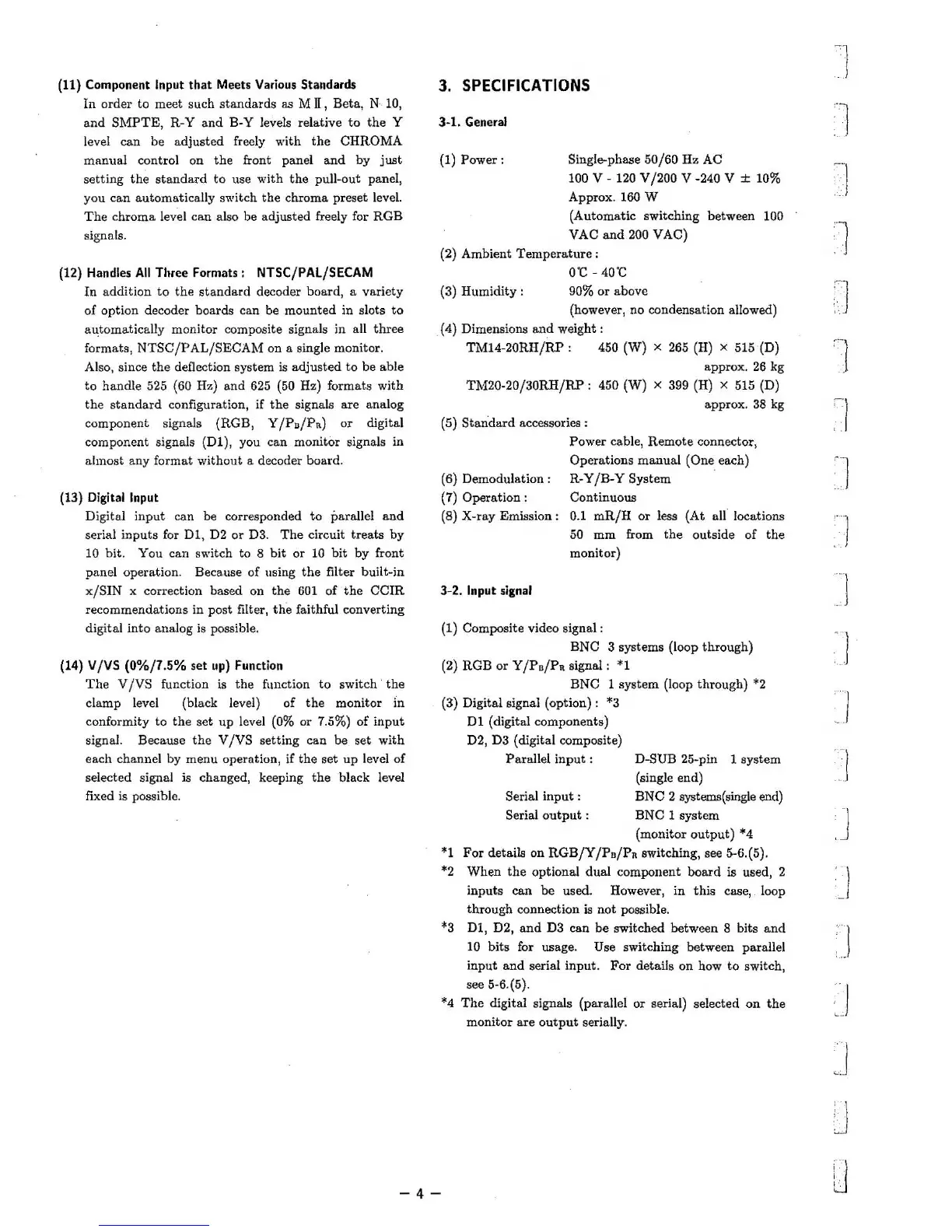

(11) Component Input that Meets Various Standards
In order to meet such standards as M Il , Beta, N-10,
and SMPTE, R-Y and B-Y levels relative to the Y
level can be adjus ted freely
with the CHROMA
manual contr ol on th e front pan el and by just
setting the standard to use
with the pull-out panel,
you can automatically switch the chroma preset level.
The chroma level can also be adjusted freely for RGB
signals.
(12) Handles All Three Formats: NTSC/PAL/SECAM
In addition to the standard decoder board, a variety
of option decoder boards can be mounted in slots to
automatically monitor composite signals in all three
formats , NTSC/PAL/SECAM on a single monitor.
Also, since the deflection system
is adjusted to be able
to handle 525 (60 Hz) and 625 (50 Hz) formats with
the standard configuratio n, if the signals are analog
component signals (RGB, Y / Pn/Pn) or digital
component signals (Dl ), you can
monitor signals in
almost any format without a decoder board .
(13) Digital Input
Digital input can
be corresponded to parallel and
serial inputs for Dl, D2 or D3. The circuit treats by
10 bit. You can switch to 8 bit or 10 bit by front
panel operation . Because of using the filter built-in
x/S IN x correction based on the 601 of the CCIR
recommendations in post filter,
the faithful converting
digital int o analog is possible.
(14) V /VS (0%/7 .5%
set up) Function
The V /VS function is the function to switch · the
clamp level (black level) of the monitor in
conformity to the set up level (0% or 7.5%) of input
signal. Because the V /VS setting can be set with
each channel by menu operation, if the set up level of
selected signal is changed, keeping the black level
fixed is possible .
3. SPECIFICATIONS
3-1. General
(1) Power: Single-phase 50/ 60 Hz AC
100 V - 120 V /200 V -240 V
± 10%
Approx. 160 W
(Autom atic switching between 100
VAC and 200 VAC)
(2) Ambient Temp erature :
O'C - 40'C
(3) Humidity :
90% or above
(however, no condensatio n allowed)
(4) Dimensions
and weight:
TM14-20RH/RP : 450 (W) x 265 (H) x 515 (D)
approx. 26 kg
TM20-20/30RH/RP: 450 (W) x 399 (H) x 515 (D)
approx. 38 kg
(5) Standard accessories:
Power cable, Remote connector,
Operations
manua l (One each)
(6) Demodulation:
(7) Operation :
R-Y /B-Y System
.
Continuous
(8)
X-ray Emission: 0.1 mR/H or less (At all locations
50 mm from the outside of the
monitor)
3-2. Input signal
(1) Composite video signal:
BNC 3 systems (loop through)
(2) RGB or Y
/Pn/Prt signal : *1
ENC 1 system (loop th rough) *2
(3) Digital signal (option) : *3
Dl (digital components)
D2, D3 (digita l composite)
Parallel input :
Serial input :
Serial output :
D-SUB 25-pin 1 system
(single end)
BNC 2
systems(single end)
ENC 1 system
(monitor output) *4
*1 For details on RGB/Y
/Po/Pn switching, see 5-6.(5).
*2 When the optional dual component
board is used, 2
input s can be used. However, in this case, loop
through connection
is not possible.
*3 Dl, D2, and D3 can be switched between 8 bits and
10 bits for usage. Use switching between parallel
input and serial input. For details on how to switch,
see 5-6.(5).
*4 The digital signals (parall el or serial) selected on the
monitor are output serially.
-4-
]
