Option 01- Rear Output Kit

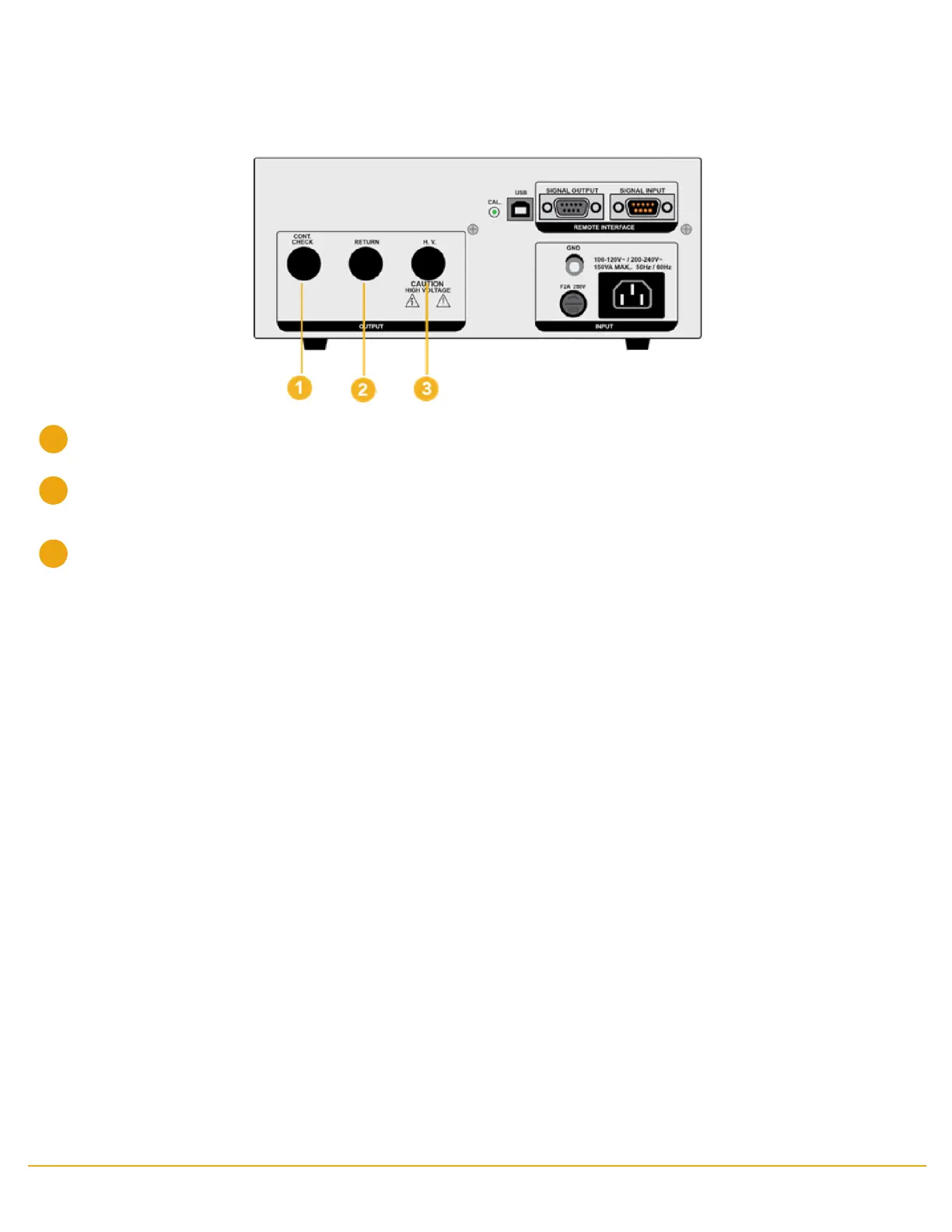

This option provides three output connections on the rear panel of the tester. These are the same as the front panel HV, RETURN
and CONT. CHECK connections.
Continuity Jack Provides the connection for checking ground continuity.
Return Jack For the connection of the black return test lead or three-prong receptacle adapter box. This jack is always
active when performing a test.
High Voltage Jack For the connection of the red high voltage test lead or three-prong receptacle adapter box. The
jack is recessed for safety when this lead is not being used. This jack is always active when performing a test.
Option 03 – USB interface
This option may be added as a serial type communication protocol. This option provides all of the function control of the USB
interface. The Type B USB connector labeled “USB” is for connection of the SCI 290 Series Testers to any compatible PC. When
selecting USB Interface, the protocol for interfacing and communicating with a PC can be found in Appendix D: Remote Bus
Interface: USB of this manual.
Option 04 – 10 Memory Option
This option increases the total number of memory locations on the tester from 5 memories to 10 memories. With this option,
the tester will display memories M0 to M9 for a total of 10 memory locations.
