INSTALLATION
INSTALLATION METHOD
36 5
550

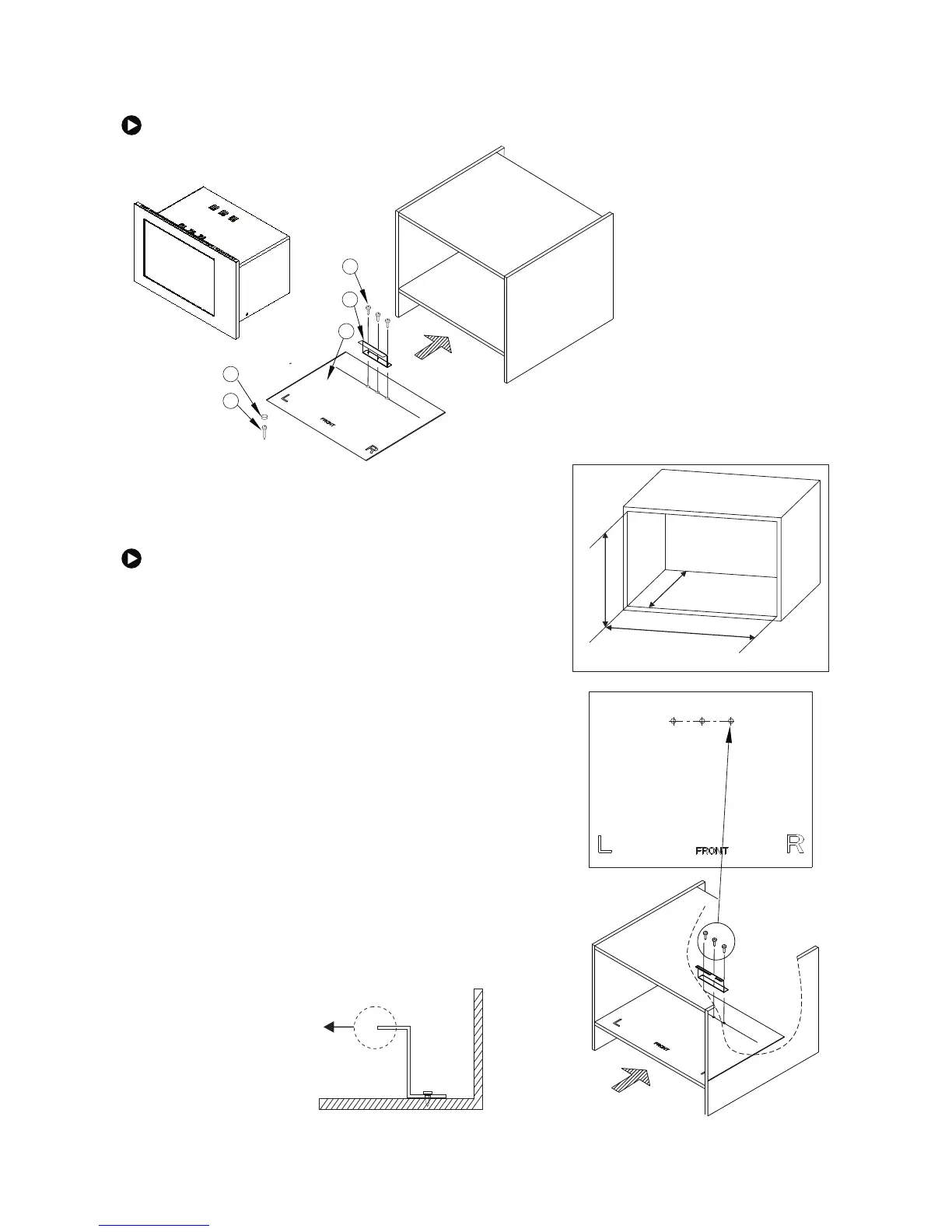

1: Make sure the cabinet dimenision are as follows:
550 (depth) 56 5mm (width) x 36 5mm (height)
2: Put the indicator chart paper into the cabinet, and assemble
the orientation in the position with three screw, this position has
marked in the indicator chart paper
Attention:
1. Indicator chart should aligned with the left edge, right edge
and front edge
2. The orientation fixing is shown as per picture 3
front
1. The Indicator Chart Paper
2. Orientation
3. Bolts M4 × 10mm
4. Screw Cover
5. Bolts M4 × 35mm
Assemble Indicator Figure
