7
screws, or appropriately sized bolts and nuts if attaching to I-beams.
NOTE: Always install the bracket to a minimum of 2 x 4 studding.

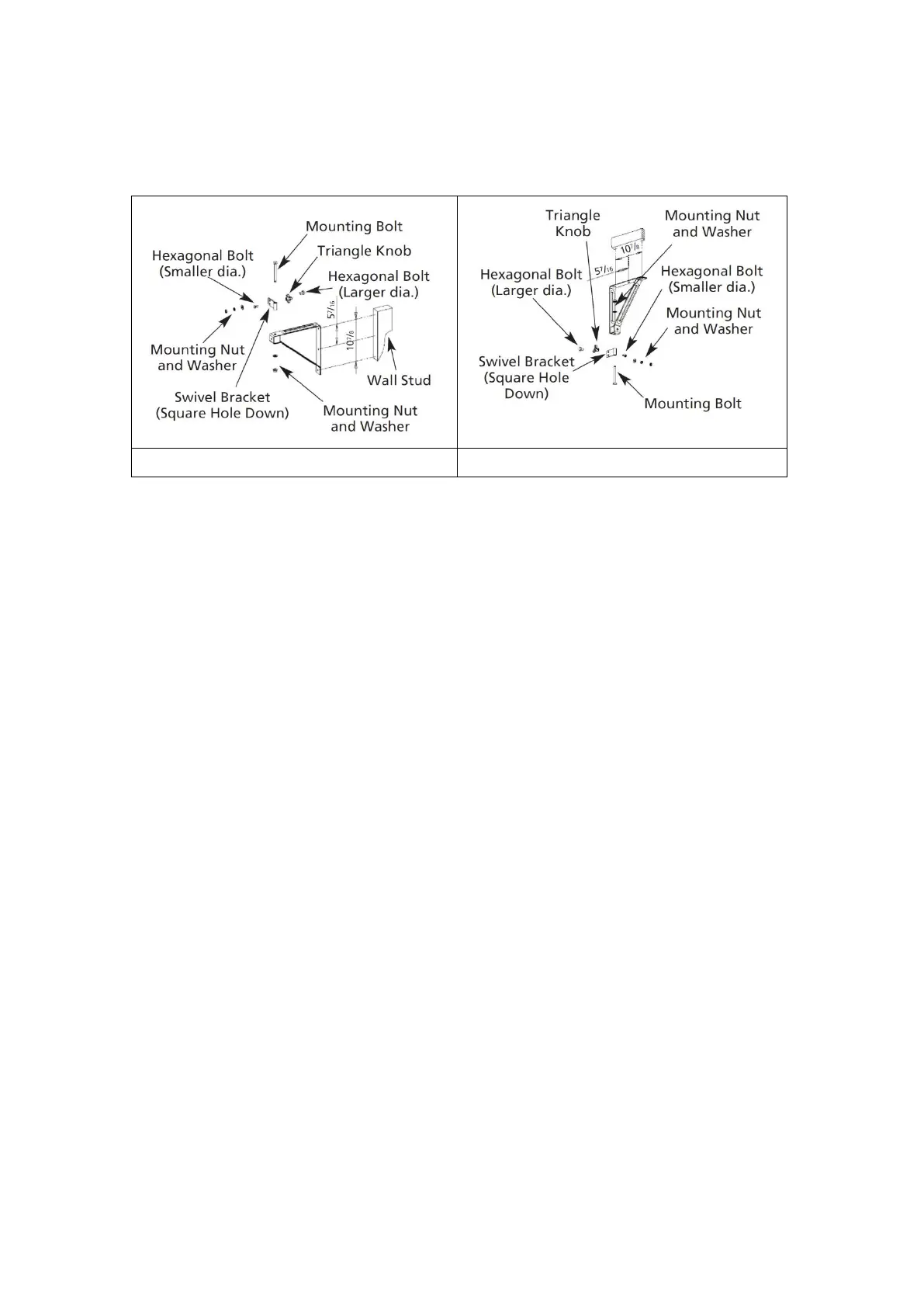

4. Assemble the swivel bracket as shown. The bracket has three holes; be
sure square hole is specified in the illustration.
Assemble the motor to swivel bracket:
1. Position the swivel bracket in the motor yoke and align the pivot hole
with the round hole in the swivel bracket.
2. Insert the larger diameter bolt in the pivot hole and install the lock
nut, finger-tight.
3. Insert the smaller diameter bolt in the slot in the motor yoke (or
support bracket) and square hole in the pivot bracket and install
triangle knob, finger-tight.
4. While holding the motor at the desired angle, tighten the smaller
diameter bolt.
5. Tighten larger bolt to 200-230 in. lbs. and smaller bolt to 150-160 in.
lbs. being careful to maintain the desired position.
