ESPRIT INBUILT MANUAL 2014
Quality & Value In Gas Log Fires
7
INSTALLATION CLEARANCES FOR INBUILT MODELS
IMPORTANT: All distances shown are MINIMUM. ILLUSION Gas Log appliances UGL62NG ,UGL69NG, UGL62LP
and UGL69LP must only be installed with the minimum distances shown below.
Note that these appliances have a DRAFT DIVERTER at the rear of the unit, which exits at the heater mantel and
must not be altered, obstructed or blocked in any way. Modications or obstructions to the draft diverter or exit may
cause a hazardous situation.

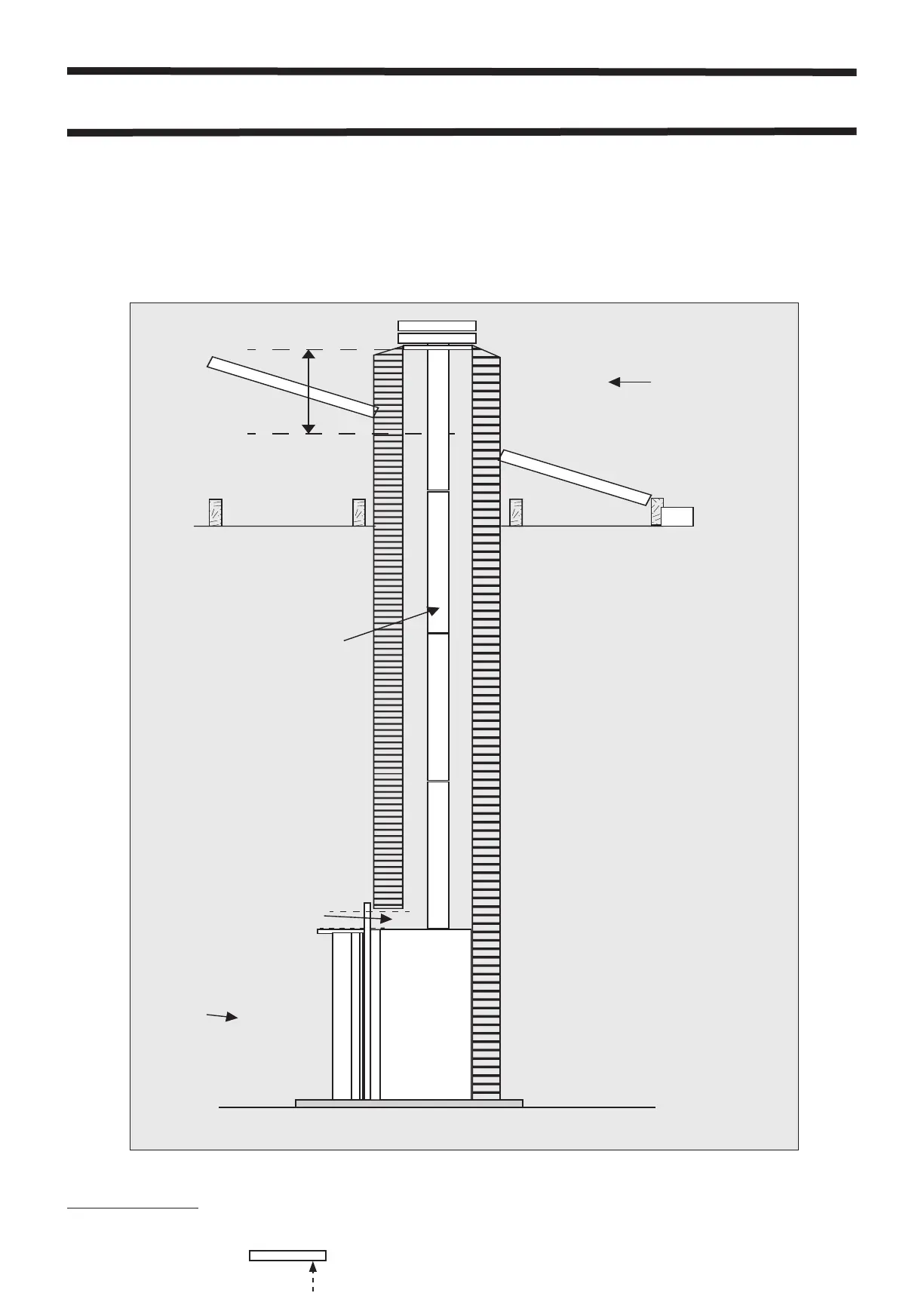

INSTALLATION OPTION 1
ESPRIT
INBUILT
GAS FIRE
EXTERNAL CHIMNEY WALL
INTERNAL CHIMNEY WALL
FLASHING
SUPPLIED BY INSTALLER
APPROVED GAS COWL
100mm ACTIVE FLUE PIPE
NOTE: ALL FLUE PIPES MUST
BE INSTALLED WITH THE
CRIMPED END FACING UP
500mm MINIMUM
THE RECOMMENDED MINIMUM
DISTANCE FROM THE TOP OF
THE APPLIANCE TO THE
UNDERSIDE OF ANY
COMBUSTIBLE TIMBER FRAMING
IS 70mm PROVIDED THAT THE
GAP BETWEEN THE ACTIVE FLUE
PIPE AND ANY COMBUSTIBLE
MATERIAL IS A MINIMUM OF
25mm, OR THE GAP BETWEEN
THE OUTER CASE AND ANY
COMBUSTIBLE MATERIAL IS A
MINIMUM OF 10mm
TYPICAL ESPRIT INBUILT
CHIMNEY INSTALLATION
REFER TO INSTALLATION
INSTRUCTIONS FOR THE
ESPRIT INBUILT
FLUE PIPE
Minumum distance
from underside of any
combustible surface such
as a mantel, to the top
of the heater is 350mm.
