ESPRIT
INBUILT
GAS FIRE
EXTERNAL CHIMNEY WALL
INTERNAL CHIMNEY WALL
FLASHING
SUPPLIED BY INSTALLER
APPROVED GAS COWL
NOTE: ALL FLEXIBLE FLUE
PIPES MUST BE PROPERLY
SECURED AND AN APPROVED
GAS COWL FITTED.
500mm MINIMUM
THE RECOMMENDED MINIMUM
DISTANCE FROM THE TOP OF
THE APPLIANCE TO THE
UNDERSIDE OF ANY
COMBUSTIBLE TIMBER FRAMING
IS 70mm PROVIDED THAT THE
GAP BETWEEN THE ACTIVE FLUE
PIPE AND ANY COMBUSTIBLE
MATERIAL IS A MINIMUM OF
25mm. THIS ALSO INCLUDES
FLEXIBLE FLUE WHEN USED.

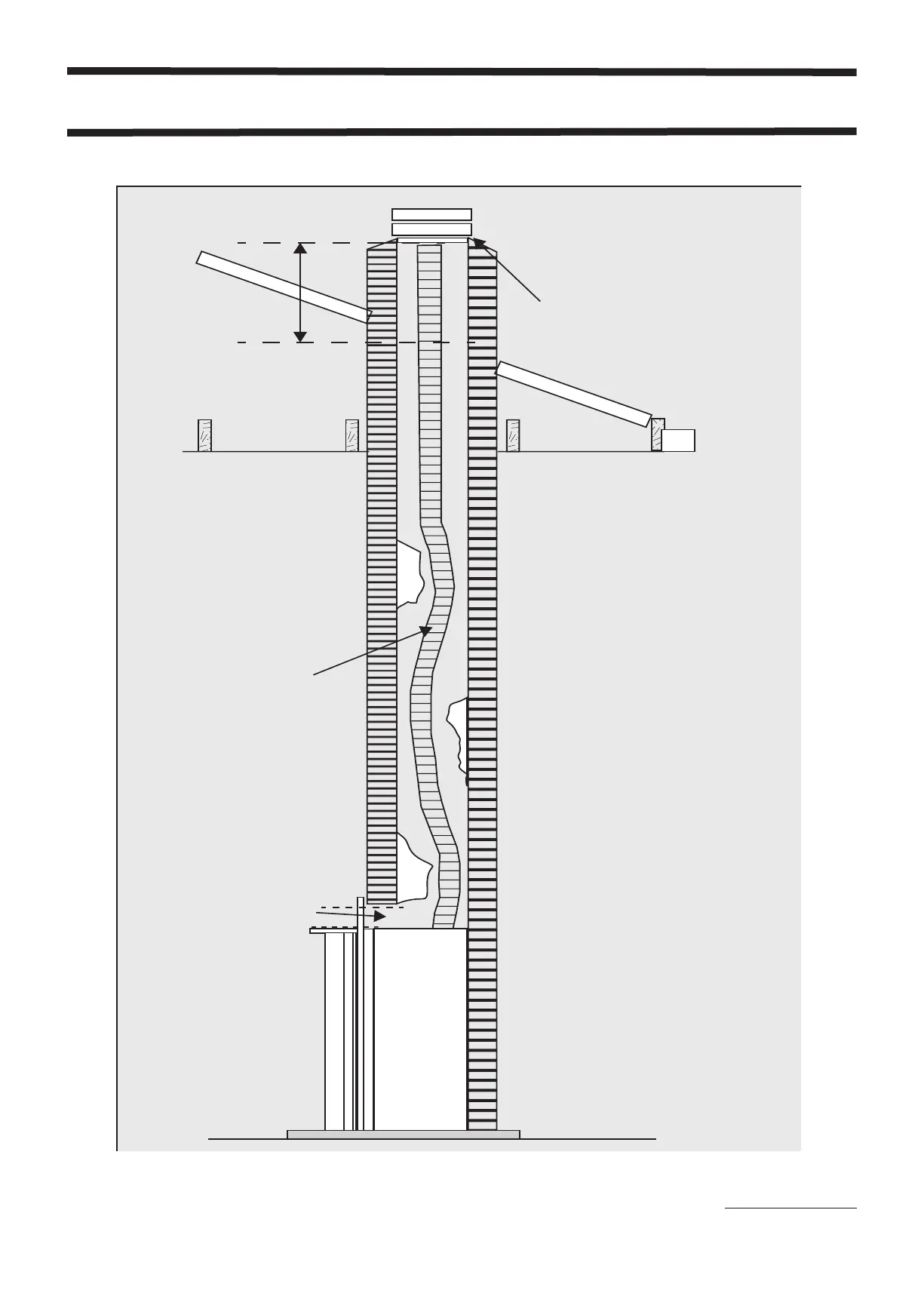

TYPICAL ESPRIT INBUILT
CHIMNEY INSTALLATION
USING FLEXIBLE FLUEING
REFER TO INSTALLATION
INSTRUCTIONS FOR THE
ESPRIT INBUILT
100mm FLEXI FLUE PIPE
NOTE: IN THE EVENT THAT A
STANDARD CHIMNEY FLUE KIT CAN
NOT BE FITTED DUE TO OBSTRUCTIONS
IN THE CHIMNEY, AN APPROVED
FLEXIBLE FLUE PIPE CAN BE USED.
REFER TO YOU ILLUSION DEALER FOR
MORE DETAILS.
