Illustra PRO - Specifications; Electrical Specifications; Environmental Specifications; Mechanical Details and Dimensions

Illustra Pro PTZ Outdoor Housing
15
Specifications
Electrical (combined dome and housing)
• Input Voltage 22 to 30Vac, 50/60 Hz
NEC Class 2/Certified Limited Power Source
Maximum operation current 2.5A. Certified Limited Power Source
Environmental
• Operating Temperature –40°C to 50°C
(–40°F to 122°F)
• Relative Humidity 0 to 95% non-condensing
• Storage Temperature –10°C to 50°C
(14°F to 122°F)
• Wind loading Sustained winds of 240Km/hour (150 miles/hour) when properly installed and
mounted
• Enclosure rating IP66 / NEMA 4
• Suitable for altitudes <3200m

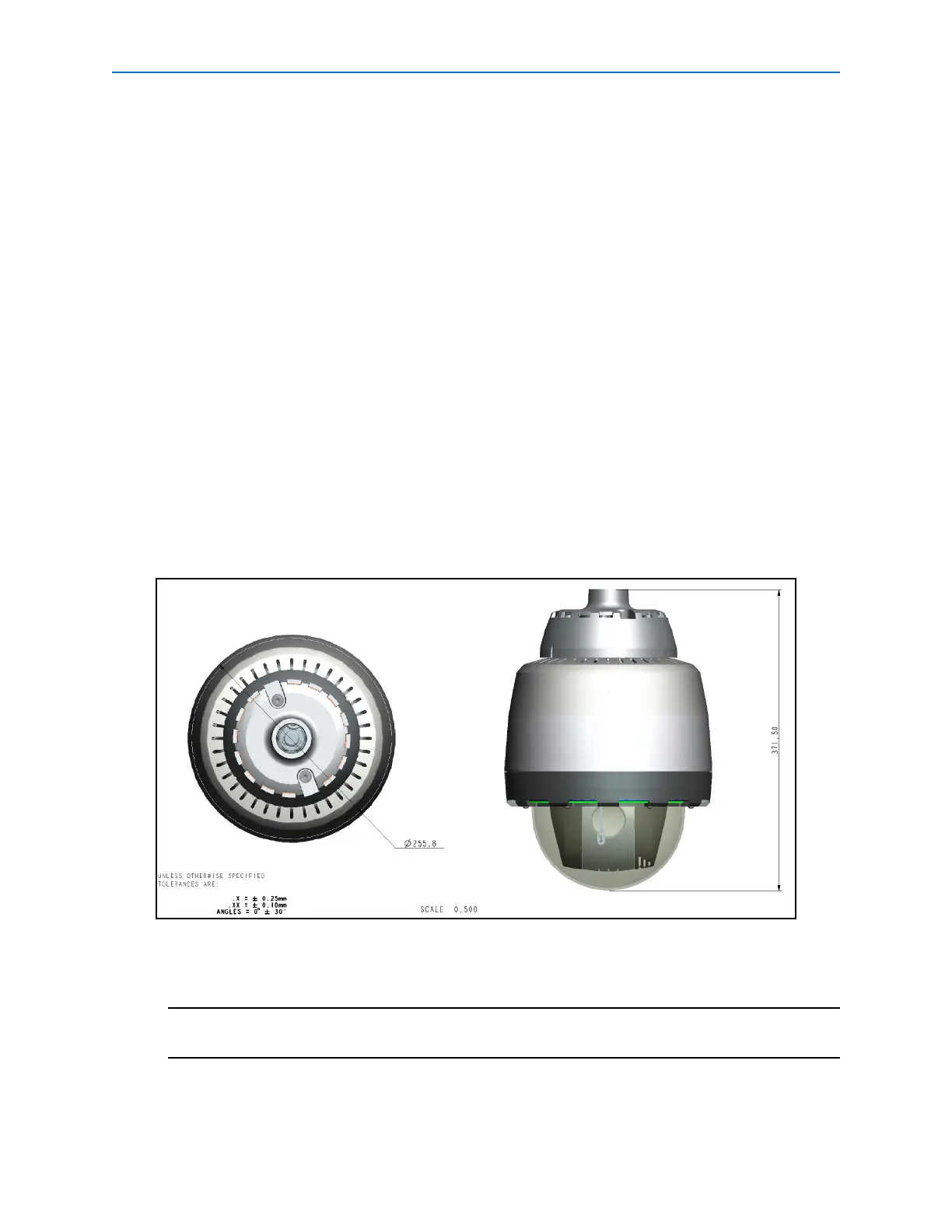

Mechanical Details and Dimensions
Dimensions are in mm
Weight Fully Assembled: 6.45Kg (14.22lbs)
Note
Fully assembled weight is the total weight attached to the mount, this includes the pendant adapter
assembly.
Housing: 2.09Kg (4.61lbs)
Camera: 1.85Kg (4.08lbs)
