14

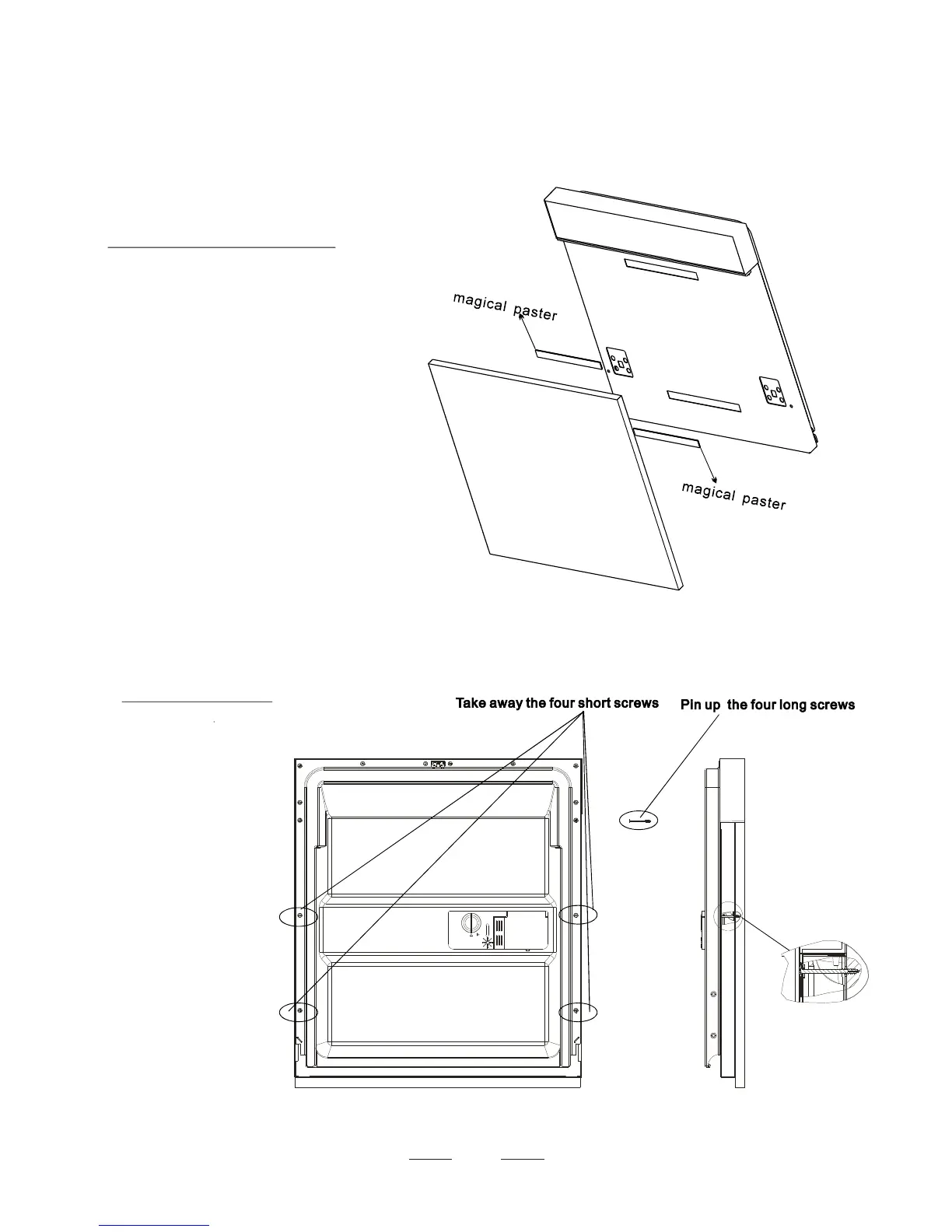

Installationofaestheticpanel
【】Figure4a
2magicalpasterAandmagicalpasterBbedisjoinedon,magicalpasterAontheaestheticwoodenpaneland
feltedmagicalpasterBoftheouterdoorofdishwasher(seefigure4a).Afterpositioningofthepanel,fixthepanel
ontotheouterdoorbyscrewsandbolts(Seefigure4b)
Installationofaesthetic
woodenpanel
【】Figure4b
.takeawaythefour
shortscrews
.pinupthefourlong
screws
1
2
