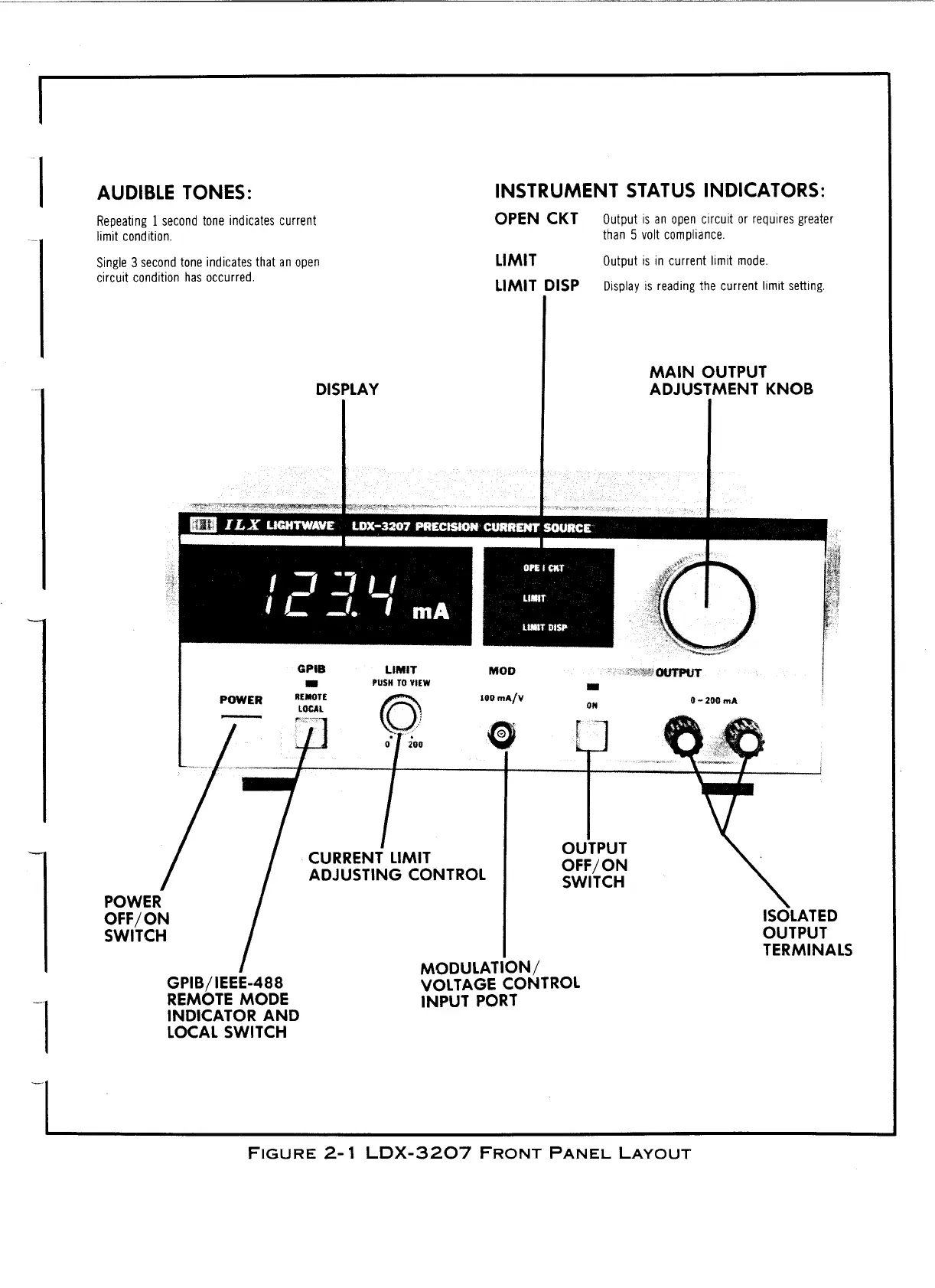

AUDIBLE TONES:
Repeating
1
second tone indicates current
limit condition.
Single
3
second tone indicates that
an
open
circuit condition has occurred.
INSTRUMENT STATUS INDICATORS:
OPEN CKT
Output is an open c~rcuit or requires greater
than
5
volt compliance.
LIMIT
Output is in current limit mode.
LIMIT DlSP
Display is reading the current limit settmg.
DISPLAY
MAIN OUTPUT
ADJUSTMENT KNOB
PUSH
TO
VIEW
OUTPUT
TERMINALS
GPIB/IEEE-488 VOLTAGE CONTROL
REMOTE MODE INPUT PORT
INDICATOR AND
LOCAL SWITCH
