CHAPTER
1
GENERAL
INFORMATlaY

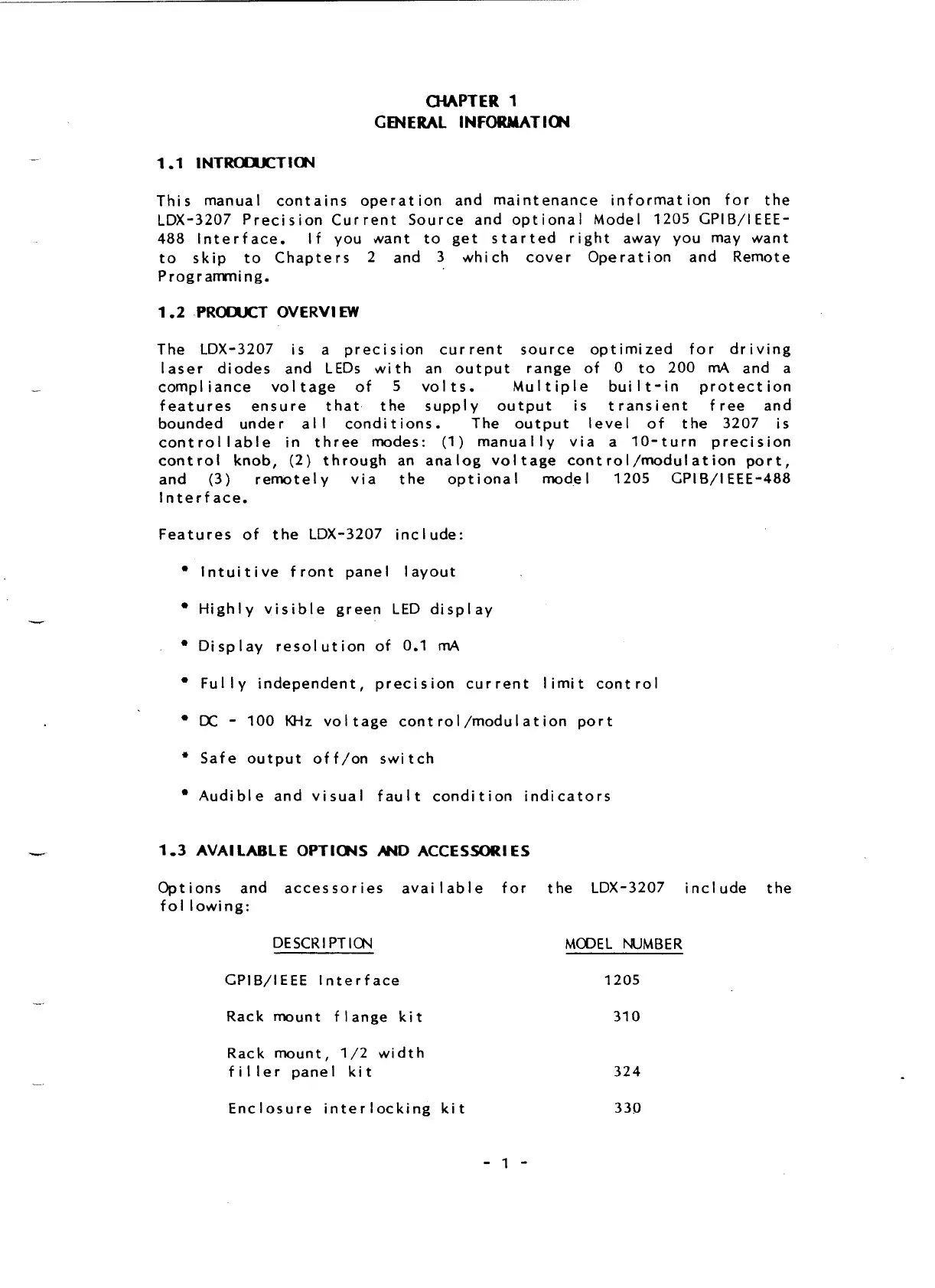

This manual contains operat ion and maintenance informat ion for the
LDX-3207 Precision Current Source and optional Model 1205 GPIB/IEEE-
488 Interface. If you want to get started right away you may want
to skip to Chapters 2 and 3 which cover Operation and Remote
Programming.
1.2
.PROOUCT
OVERVI
EW
The LDX-3207
is
a precision current source optimized for driving
laser diodes and LEDs with an output range of 0 to 200
mA
and a
compl iance voltage of 5 volts. Multiple bui
l
t-in protect ion
features ensure that the supply output
is
transient free and
bounded under all conditions. The output level of the 3207
is
controllable in three modes: (1) manually via a 10-turn precision
control knob, (2) through an analog voltage control/rnodulation port,
and (3) remotely via the optional model 1205
GPIB/IEEE-488
Interface.
Features of the LDX-3207 include:
Intuitive front panel layout
Highly visible green LED display
Display resolution of 0.1
rnA
Fully independent, precision current limit control
CC
-
100
KHz
voltage control/rnodulation port
"
Safe output off/on switch
Audible and visual fault condition indicators
1.3
AVAl LABLE OPTIONS
AND
ACCESSOR1 ES
Opt ions and accessories avai lable for the LDX-3207 include the
fol lowing:
DESCKl PT lCN
CPIB/IEEE Interface
MODEL NUMBER
Rack mount
f
l
ange kit 31
0
Rack mount, 1/2 width
filler panel kit
Enclosure inter locking kit 339
