15
35
36
37

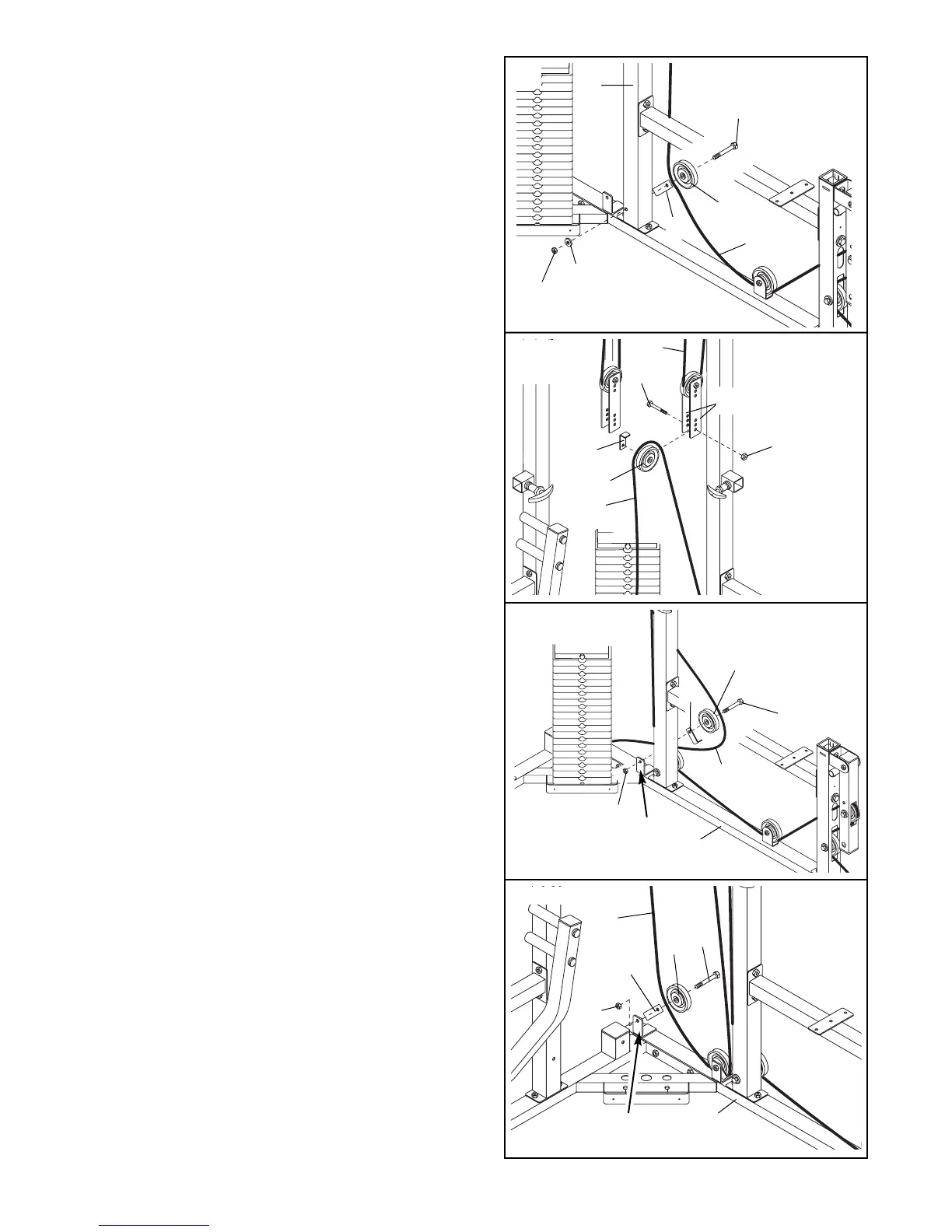

34. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the Pulley and a Cable Trap (25) to the
Butterfly Upright (1) with a 3/8” x 4” Bolt (59), a 3/8”
Flat Washer (48), and a 3/8” Nylon Jamnut (63). Be
sure that the Cable Trap is turned to hold the
Cable in place.
35. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the Pulley and a Cable Trap (25)
between the lowest holes of the Adjustable Pulley
Plates (23) hanging from the Butterfly Cable (73)
with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut
(50). Be sure that the Cable Trap is turned to
hold the Cable in place.
36. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the Pulley and a Cable Trap (25) to the
bracket on the Butterfly Base (4) with a 3/8” x 1 3/4”
Bolt (57) and a 3/8” Nylon Jamnut (63). Be sure
that the Cable Trap is turned to hold the Cable
in place.
37. Note: For convenience, the weights assembled
in step 8 are not shown in the following draw-
ings.
Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the Pulley and a Cable Trap (25) to the
bracket on the Butterfly Base (4) with a 3/8” x 1 3/4”
Bolt (57) and a 3/8” Nylon Jamnut (63). Be sure
that the Cable Trap is turned to hold the Cable
in place.
34
1
72
59
63
48
25
24
24
72
54
73
Bracket
63
72
4
57
24
25
63
72
25
Bracket
24
25
50
4
57
23
To Next Page
