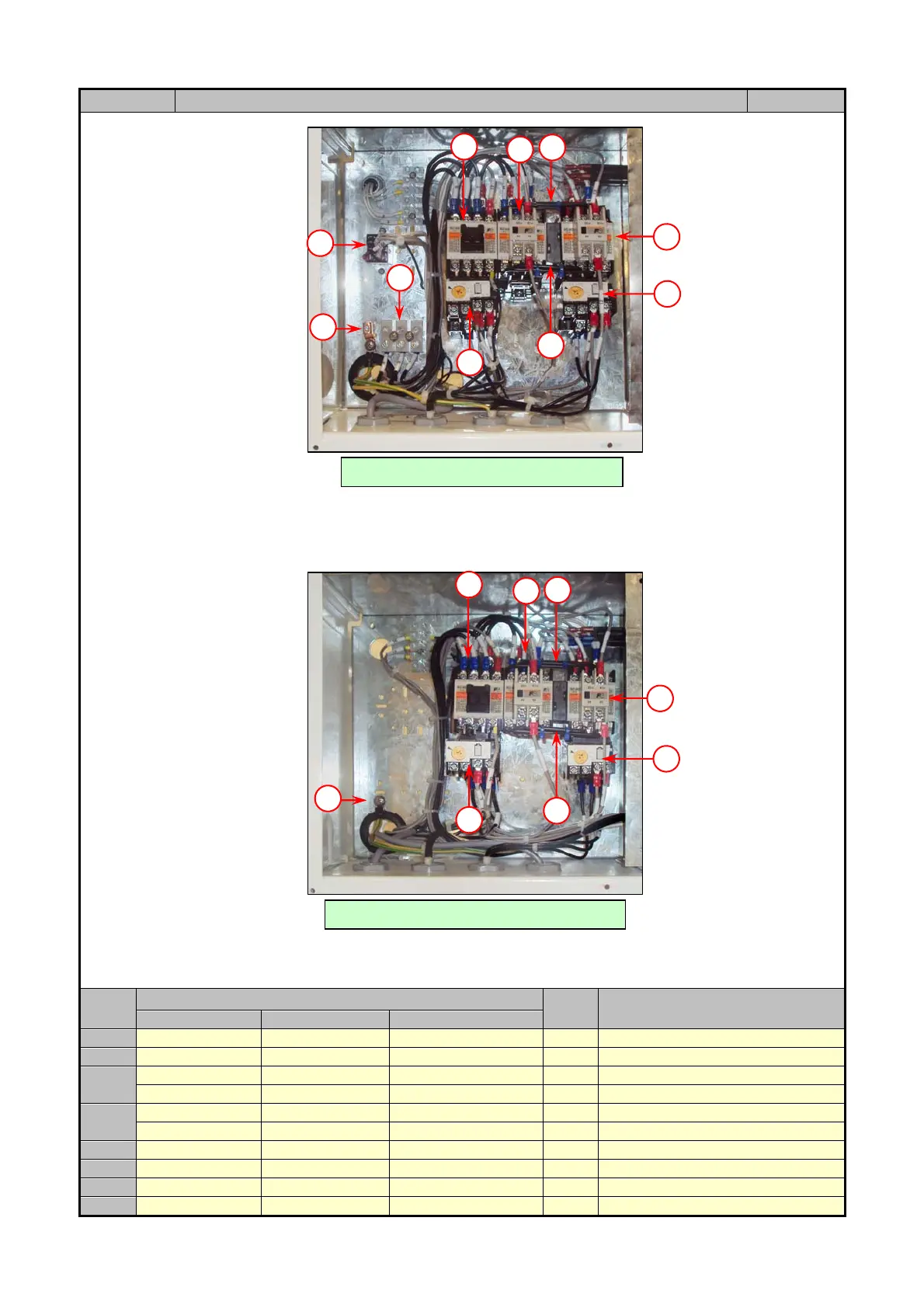

Image DE 30 - Parts List: Electrical Control Box (Rear Side - Gas;Heating); Electrical Control Box Parts (Rear Side - Gas;Heating)

Section 8
Parts List: Electrical Control Box for Reversing (Rear Side)
Page 8
Item
Part No.
Qty. Description
DE30 DE 50 DE 75
1
A0-E009-017 A0-E009-017 A0-E009-017 1 Relay Coil 24 VAC 50/60Hz.
2
A0-E004-065 A0-E004-065 A0-E004-065 2 Magnetic contactor Coil 24VAC.
3
A0-E025-052 A0-E025-053 A0-E025-053 2 Overload (208-240V)
A0-E025-051 A0-E025-052 A0-E025-052 2 Overload (380-415V)
4
A0-E004-065 A0-E004-065 A0-E004-065 2 Magnetic contactor
A0-E024-011 A0-E024-011 A0-E024-011 2 Auxiliary contact
5
A0-E036-006 A0-E036-006 A0-E036-006 1 Mechanical interlock
6
A0-E036-007 A0-E036-007 A0-E036-007 2 Power connection kit for reversing
7
A0-E055-001 A0-E055-001 A0-E055-001 1 Connector, Ground lug
8
A0-E021-031/1 A0-E021-031/1 A0-E021-031/1 1 Terminal block
Model: Electrical Control Unit -Heating Type
3
8
1
7
2
4
5
4
6
3
2
3
4
5
4
3
6
7
Model: Electrical Control Unit-Gas Type
