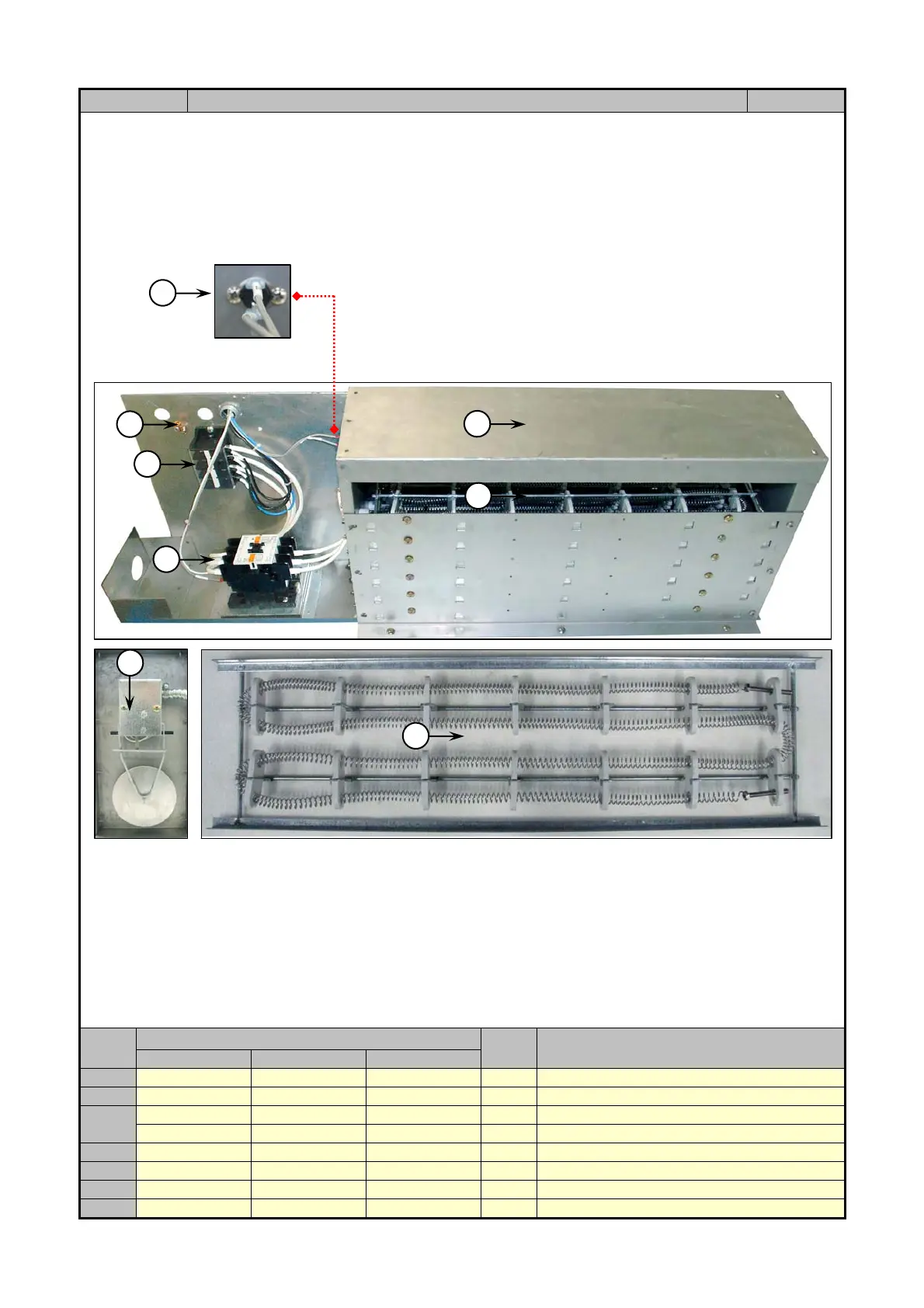

Image DE 30 - Parts List: Electric Element Heating Unit; Electric Element Heating Unit Parts

Section 8
Parts List: Electric Element Heating Unit
Page 12
Item
Part No.
Qty. Description
DE30 DE 50 DE 75
1
A0-E055-001 A0-E055-001 A0-E055-001 1 Connector, Ground lug
2
A0-E021-031/2 A0-E021-031/2 A0-E021-031/2 1 Terminal block
3
A0-E004-072 A0-E004-072 A0-E004-076 1 Magnetic contactor for heater
A0-E004-076 A0-E004-076 - 1 Magnetic contactor (50/60Hz./208-240V./3Ph.)
4
A0-E016-013 A0-E016-013 A0-E016-013 1 Thermostat for high limit
5
A0-E013-004 A0-E013-004 A0-E013-005 1 Electric heater (Complete set)
6
A0-E005-009 A0-E005-009 A0-E005-009 6,9 Electric heater (Heater coil)
7
A0-E014-014 A0-E014-014 A0-E014-014 1 Micro switch
7
6
5
2
1
3
6
4
