Image IMSB63121 - Part List

18

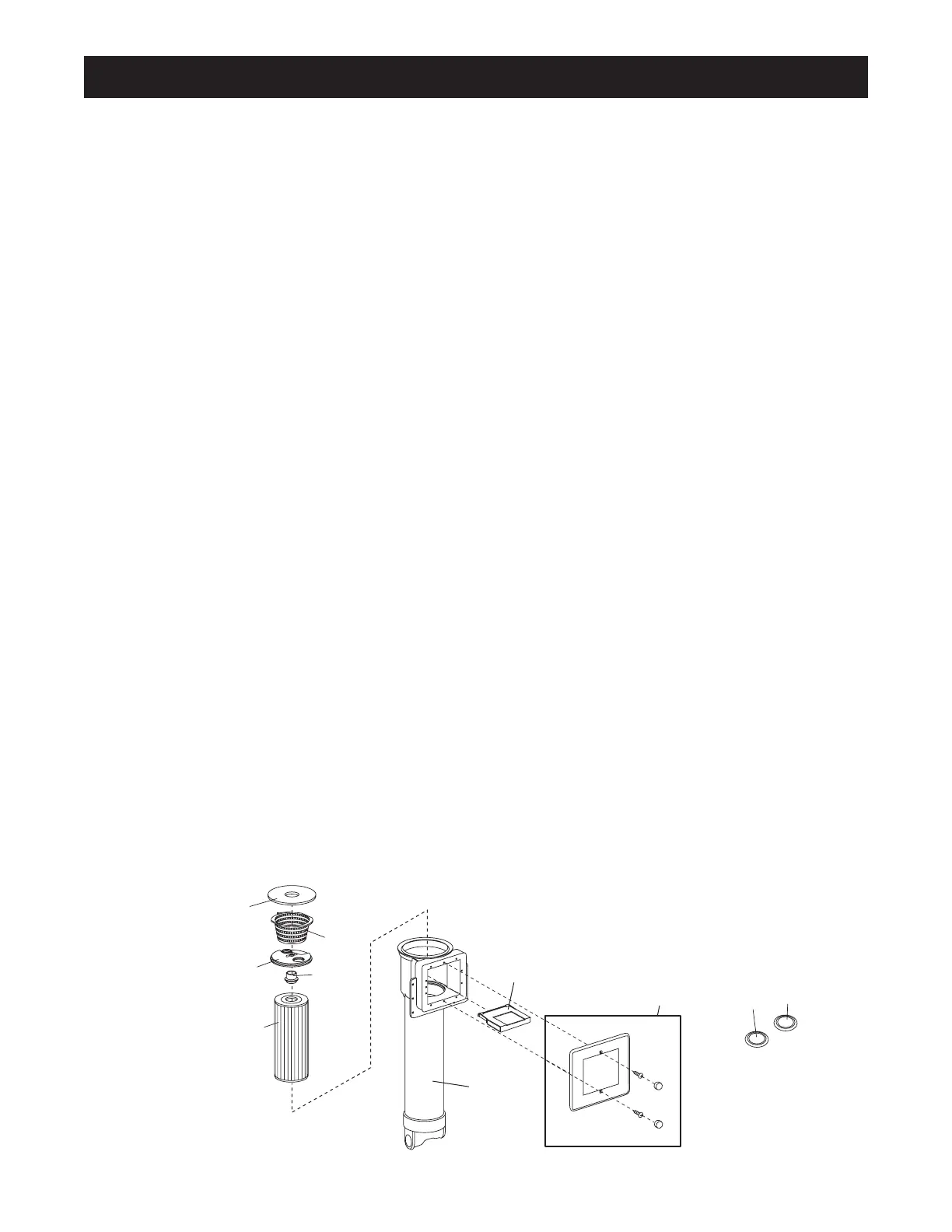

Part List—Model No. IMSB63121/IMSG63121 R0902A
1 1 Thermometer Fitting
2 2 Access Panel
3 1 Volcano Jet
4 1 Two-speed Motor/Pump*
5 2 Short Panel
6 1 Rotator
7 32 #10 x 2” Sheet Metal Screw
8 1 Filter Cover
9 4 #10 x 1 1/2” Sheet Metal Screw
10 1 Two-speed Motor Power Cord
11 1 Spa Cover
12 6 Pivot Ring
13 4 Jet Pump/Motor O-ring
14 1 Console with Overlay
15 1 Skimmer Housing*
16 1 Filter Cartridge
17 1 Basket
18 4 Suction Cover Assembly
19 2 Heater Gasket
20 1 One-speed Motor/Pump*
21 1 One-speed Motor Power Cord
22 2 Rubber Isolator Pad
23 8 Rubber Washer
24 12 1/4” Washer
25 4 Corner Panel
26 9 Medium Nozzle
27 2 Drain Plug
28 2 Drain Plug O-ring
29 1 Cover Ring
30 4 Buckle
31 8 #4 x 3/4” Screw
32 9 Medium Jet Housing
33 1 Diverter Plate
34 3 Air Control Knob
35 9 Nozzle Housing
36 6 Small Rotator
37 1 Large Rotary Jet
38 7 Face Ring
39 7 Small Nozzle
40 13 Jet Ring
41 7 Nozzle Bushing
42 7 Nozzle Retainer Ring
43 7 Flared Nozzle
44 8 Jet Housing
45 1 Light Cover, Red
46 1 Light Cover, Blue
47 1 Filter Door
48 1 Cartridge Plug
49 1 Face Plate Assembly
50 8 1/4” x 1 1/2” Screw
51 8 1/4” Lock Washer
52 2 Collar With Screw
53 1 Electronics Pack*
54 1 Overlay
# 2 Ground Wire
#2Key
# 1 User’s Manual
# 1 Large Warning Sign
# 1 Warning Sign
# 1 Light Bulb
# 2 Motor Mount Board*
# 3 Pillow
* Indicates a part that is serviceable only by service
technicians.
# Indicates a non-illustrated part.
Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
45
46
47
15*
16
17
8
33
48
49
