18

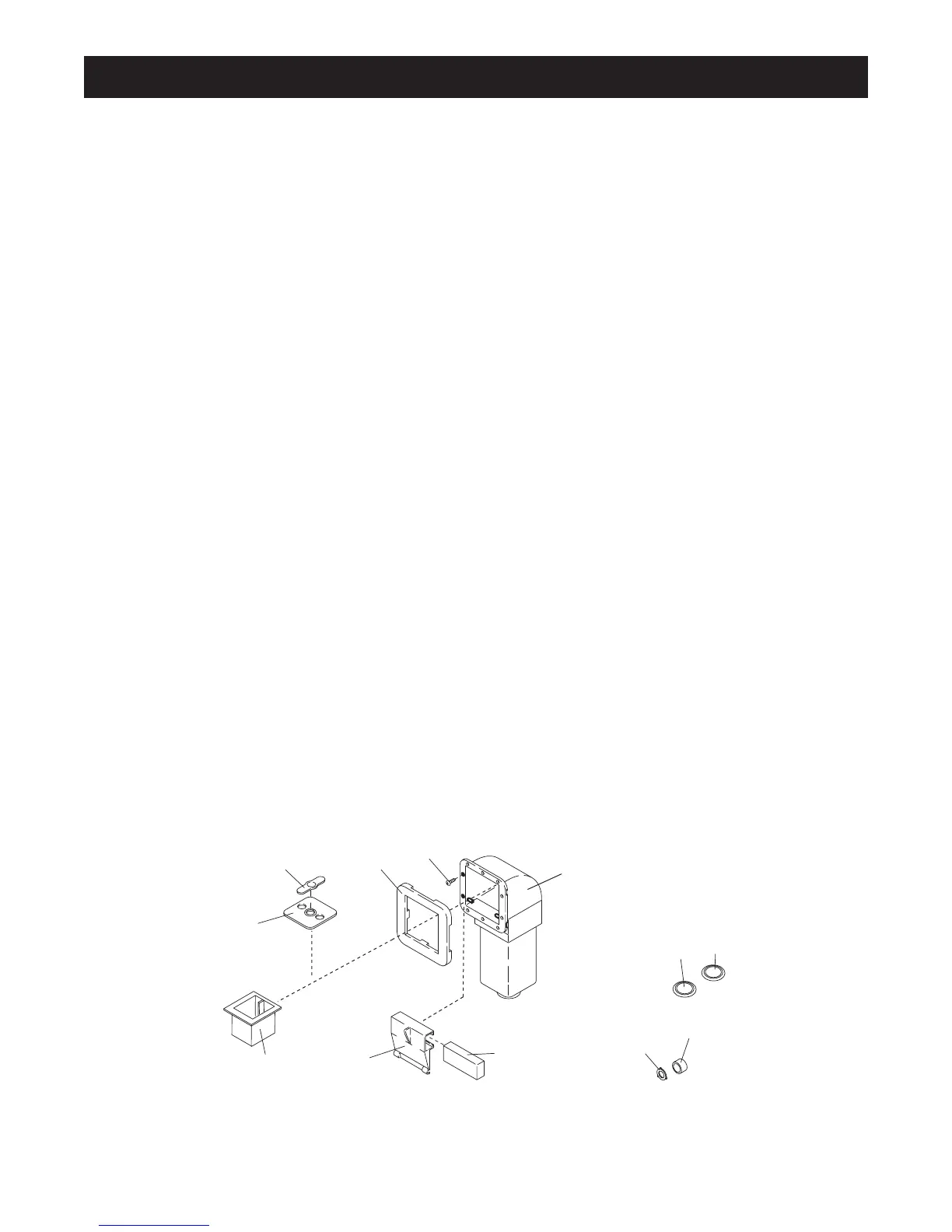

Part List—Model No. IMSB63910/IMSG63910 R1101A
1 1 Thermometer Fitting
2 1 3-wire Power Cord
3 2 Filter Cover with O-Ring
4 2 Filter O-Ring
5 2 Filter
6 2 Rubber Isolator
7 1 Blue Light Cover
8 1 Red Light Cover
9 12 #10 x 1” Sheet Metal Screw
10 1 2-speed Pump
11 1 Spa Cover
12 6 Dual Rotary Jet Face
13 4 Jet Pump/Motor O-ring
14 1 Heater/Electronics Package*
15 4 Medium Jet Housing
16 4 #10 x 1 1/4” Screw
17 4 Suction Cover
18 4 Air Control Knob
19 1 1-speed Pump
20 1 4-wire Power Cord
21 1 Diverter
22 1 Basket
23 1 Console Overlay
24 1 Filter Door
25 4 Access Panel
26 4 Buckle
27 8 #4 x 3/4” Screw
28 10 #8 1 1/2” Screw
29 1 Console with Overlay
30 1 Hose Washer
31 8 Flat Washer
32 1 Diverter Valve
33 1 Trim Plate
34 1 Foam, Weir
35 1 Volcano Jet
36 4 Nozzle Housing
37 20 Small Rotator
38 1 Large Rotary Jet
39 1 Face Ring
40 1 Small Nozzle
41 21 Jet Ring
42 1 Nozzle Bushing
43 21 Pivot Ring
44 4 Medium Nozzle
45 2 Drain Plugs
46 32 #10 x 2” Sheet Metal Screw
47 1 Pillow
48 2 Drain Plug O-ring
49 2 On/Off Valve Handle
50 1 Hose Cap
51 1 Skimmer Housing*
52 6 Dual Rotary Jet
53 4 Neck Jet
54 1 Whirlpool Jet
55 1 Large Rotary Jet
# 2 Ground Wire
#2Key
# 1 User’s Manual
# 1 Large Warning Sign
# 1 Warning Sign
# 1 Light Bulb
# 4 Corner Panel
* Indicates a part that is serviceable only by service
technicians.
# Indicates a non-illustrated part.
Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
