18

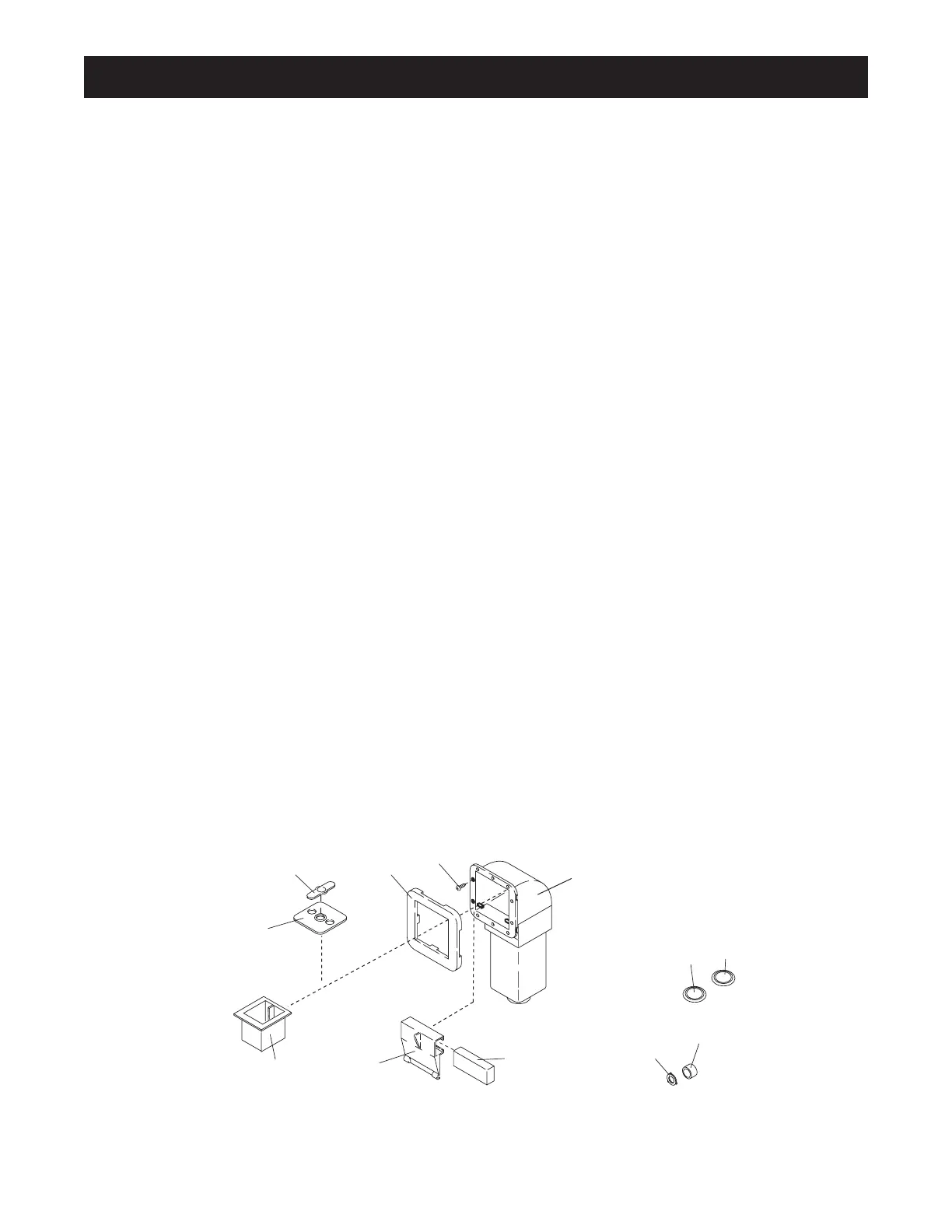

Part List—Model No. IMSB63102/IMSG63102 R0901A
1 1 Thermometer Fitting
2 2 Long Access Panel
3 1 Volcano Jet
4 1 Two Speed Motor/Pump
5 2 Short Access Panel
6 1 Rotator
7 32 #10 x 2” Sheet Metal Screw
8 1 Filter Cover
9 12 #10 x 1 1/2” Sheet Metal Screw
10 1 Two Speed Motor Power Cord
11 1 Spa Cover
12 6 Pivot Ring
13 4 Jet Pump/Motor O-ring
14 1 Console with Overlay
15 1 Skimmer Housing*
16 1 Filter
17 4 Suction Cover Screw
18 4 Suction Cover
19 2 Heater Gasket
20 1 One Speed Motor/Pump
21 1 One Speed Motor Power Cord
22 2 Rubber Isolater Pad
23 1 Hose Washer
24 8 1/4” Washer
25 4 Corner Panel
26 9 Medium Nozzle
27 2 Drain Plug
28 2 Drain Plug O-ring
29 1 Cover Ring
30 4 Buckle
31 8 #4 x 3/4” Screw
32 9 Medium Jet Housing
33 1 Filter Cover O-ring
34 3 Air Control Knob
35 9 Nozzle Housing
36 6 Small Rotator
37 1 Large Rotary Jet
38 7 Face Ring
39 7 Small Nozzle
40 13 Jet Ring
41 7 Nozzle Bushing
42 7 Nozzle Retainer Ring
43 7 Flared Nozzle
44 8 Jet Housing
45 1 Light Cover, Red
46 1 Light Cover, Blue
47 1 Diverter
48 1 Basket
49 1 Filter Door
50 10 #8 x 1 1/2” Screw
51 1 Hose Washer
52 1 Diverter Valve
53 1 TrimPlate
54 1 Foam Weir
55 1 Overlay
56 1 Electronics Pack*
# 2 Ground Wire
#2Key
# 1 User’s Manual
# 1 Large Warning Sign
# 1 Warning Sign
# 1 Light Bulb
# 2 Motor Mount Board
# 3 Pillow
* Indicates a part that is serviceable only by service
technicians.
# Indicates a non-illustrated part.
Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
