IMB MB9018B - Debugging Method; Model Selection; Speed Regulation Mode; Wheel Speed Adjustment

8
6、Debugging method
6.1. Model selection

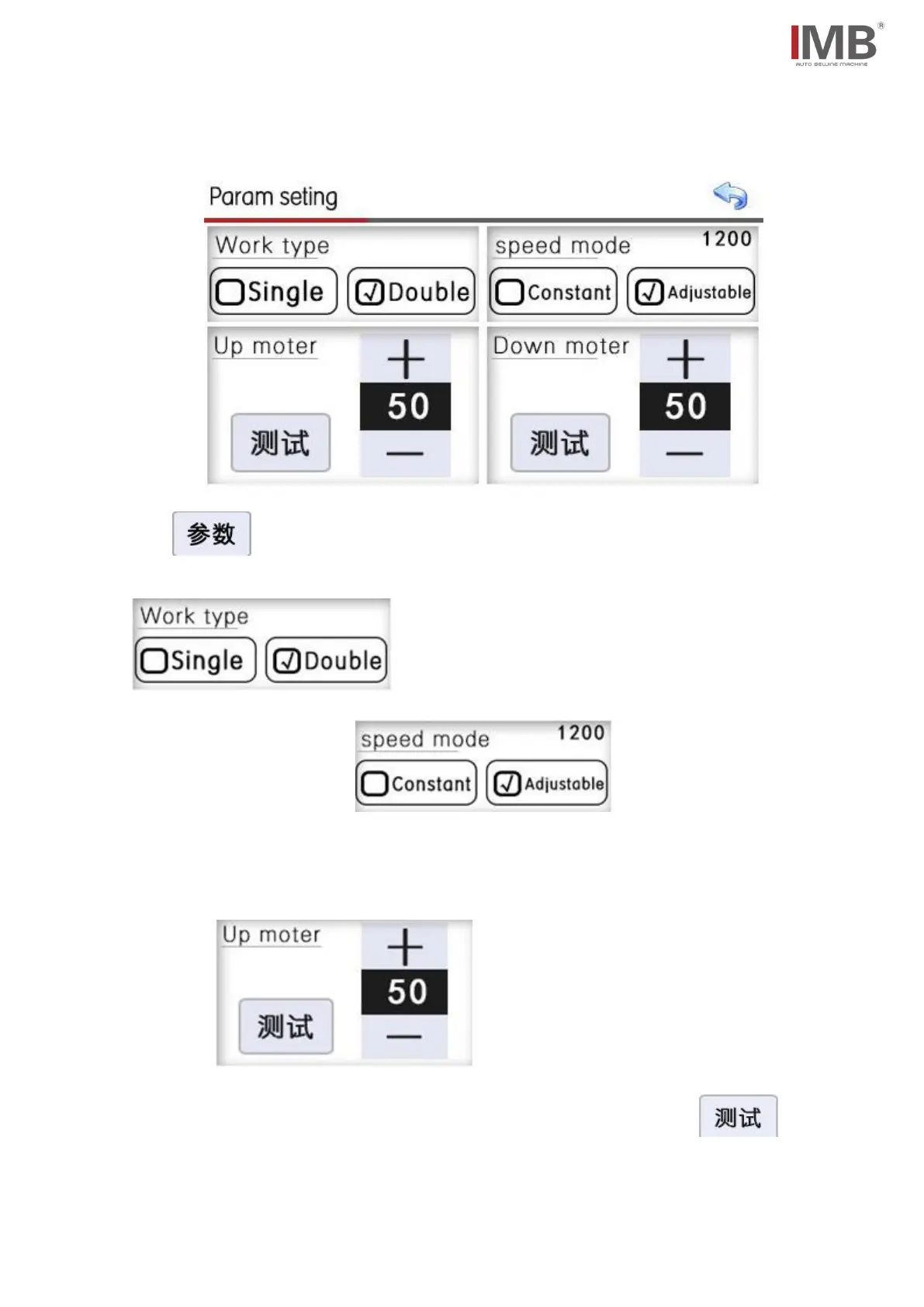

Click the button of 4.1 - (3) - B touch screen monitoring interface，Pop up the
interface shown in the figure above, and select dual motor
6.2. Speed regulation mode
Select constant speed sewing or adjustable speed sewing in parameter setting interface
Constant：Front pedal motor rotates at a fixed speed；
Adjustable：The rotation speed of motor increases with the increase of pedal force。
6.3. Wheel speed adjustment
Click on the parameter setting interface, Push
button to adjust the speed of upper motor，Speed range 10% - 100%，Click Button
speed measurement。
