CHANGING A LED LIGHT ASSEMBLY
The cabinet interior is illuminated by a LED light strip fitting located at the front
of the top inner panel.
To change the light assembly:
· Ensure the mains power to the unit has been turned off.
· Open the front cabinet door(s).
· Unscrew the screws holding the LED assembly in place.
· Carefully lower the LED assembly down and disconnect the 2 wires from the
unit.
· The LED light assembly should now be free to fully remove from the unit.
· To fit the replacement unit.
· Place the new LED light assembly inside the unit, re connect the 2 wires
from the unit to the new LED light assembly.
· Re fit the LED light assembly inside the unit by using the screws.
· Re-connect the mains power and ensure the light illuminates by means of
the switch.

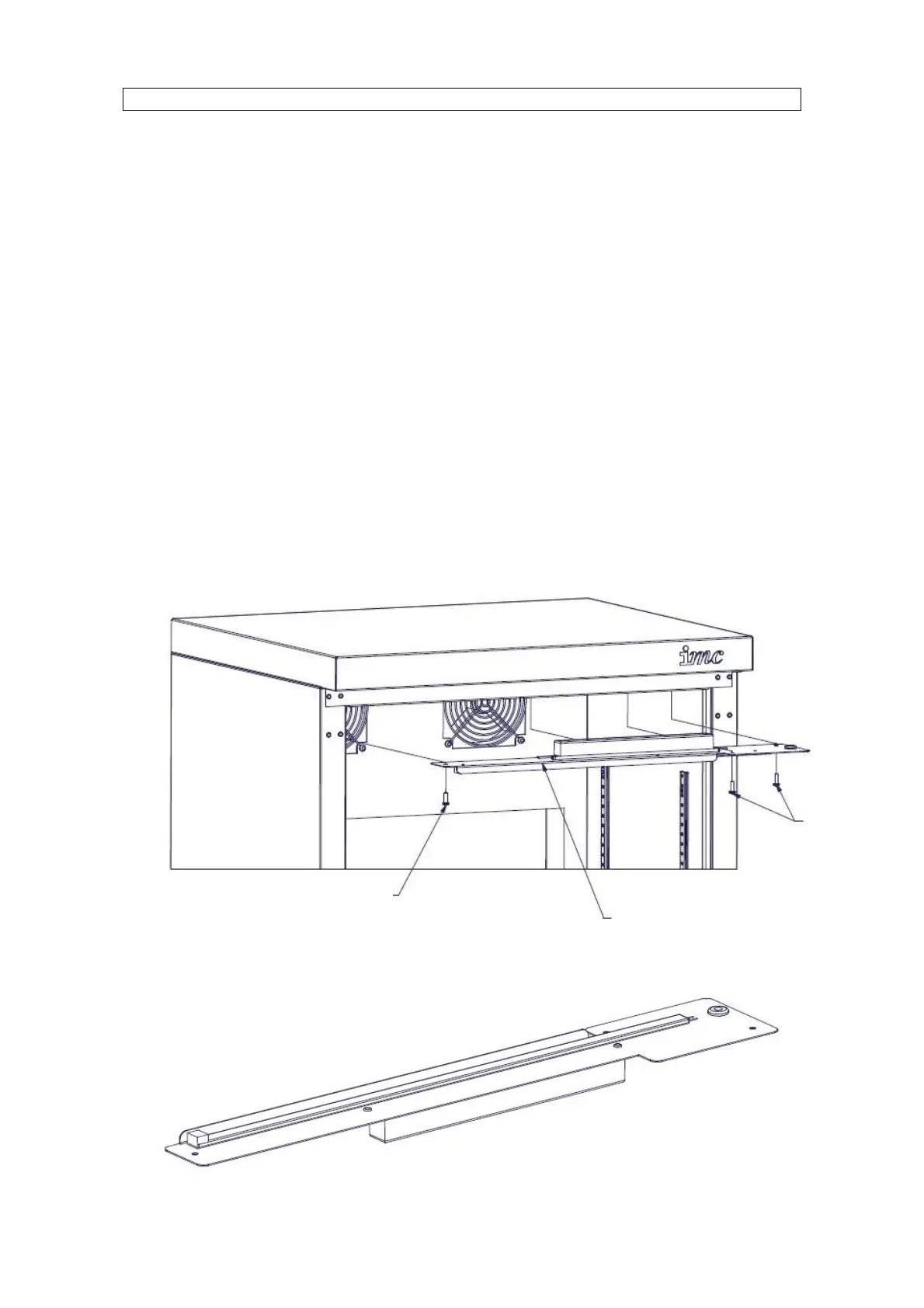

Fixing
Screws
Fixing
Screw
LED Light
Assembly
LED Light
Assembly
