Nemo 96 HD+

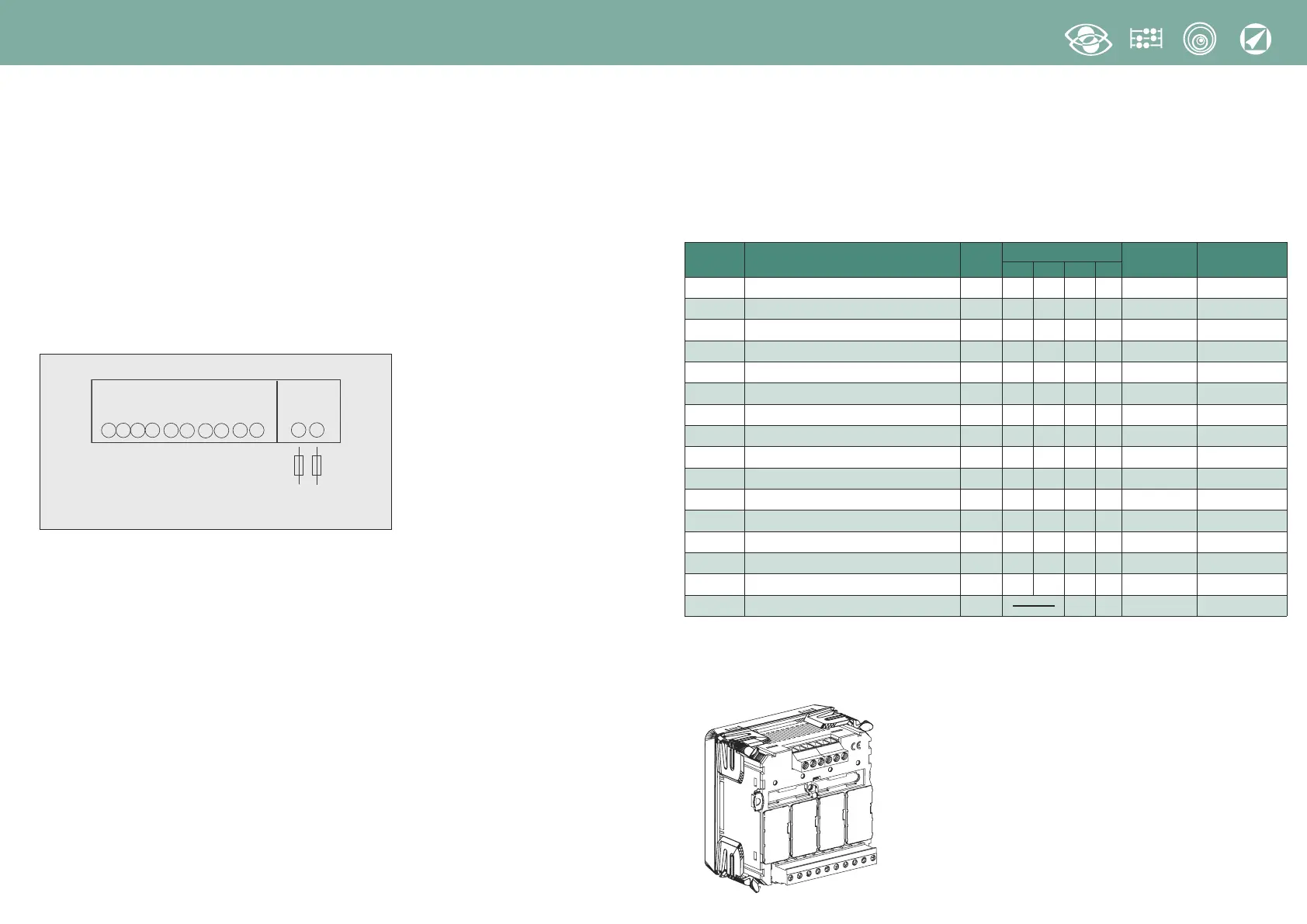

Auxiliary Supply
Terminals 20 and 21
Auxiliary supply direct or alternating current electrical supply which is necessary for
proper working of the device.
Please verify that the available supply voltage meets the one shown on the data label of
the meter (voltage value and any frequency).
Where a double voltage is shown (for instance 80...265Vac / 110...300Vdc) the meter can be
fed with alternating voltage 80...265Vac or direct voltage 110...300Vdc.
In case of direct voltage supply please respect the shown polarities 20+ and 21-.
F : 1A gG
INPUT
VOLTAGE
CURRENT
2
58 1
3
6
9
4
7
11
20
AUX.
SUPPLY
21
+
–
F
Optional Modules
In the meter up to four optional modules can be connected.
Communication modules are as an alternative to them (they cannot coexist).
For the options pulse outputs, analog output and alarms, it is possible to connect one or two
modules. In the table are listed module composition constrictions: max. number of modules and
connection position. (see table)
IF96018 is lodged in 2 slots
1
On the table it is shown the firmware version of the meter which thesupports the function of
the extra module.
By using an IF96001 (RS485) or IF96002 (RS232) communication
module it is possible to update the firmware version (starting from
2.00 version)
directly on field, with the help of a PC and the
download software.
A
B
C
D
Code Description
N.
Max.
Position
Firmware
2
Technical
Note
A B C D
IF96001 RS485 Communication 1
•
All NT675
IF96002 RS232 Communication 1
•
All NT676
IF96003 2 energy pulse outputs 2
• • • •
All NT677
IF96004 2 analogue outputs 0/4...20mA 2
• •
1.08 NT678
IF96005 2 alarms 2
• • • •
All NT679
IF96006 Neutral current 1
•
1.08 NT683
IF96007A PROFIBUS Communication 1
•
3.12 NT682
IF96009 LONWORKS Communication 1
•
2.00 NT684
IF96010 I/O 2 Inputs SPST - 2 Outputs SPST 2
• •
2.06 NT702
IF96011 I/O 2 Inputs 12-24Vcc - 2 Outputs SPST 2
• •
2.06 NT703
IF96012 RS485 - Energy value storage 1
•
2.06 NT704
IF96013 MBUS Outputs 1
•
2.06 NT707
IF96014 BACNET Outputs 1
•
2.08 NT743
IF96015 ETHERNET Outputs 1
•
2.00 NT785
IF96016 Measure Temperature 1
•
2.30 NT810
IF96018
1
Radio Communication 1
• •
2.33 NT856
