Nemo D4-L+
1.2 Connection
selects the connection
↵
Confirms
Select the desired connection and scrupulously respect the linked wiring diagram.
The selectable wiring diagrams are:
1.3 Power Demand
Combined power:
activa (W), reactiva (VAr) , apparent (VA)
selects power
↵
confirms
1.4 Current delay time and average power
Selectable delay time: 5, 8, 10, 15, 20, 30, 60 minutes
The selected time is valid both for the current and the average power
selects the time value
↵
confirms

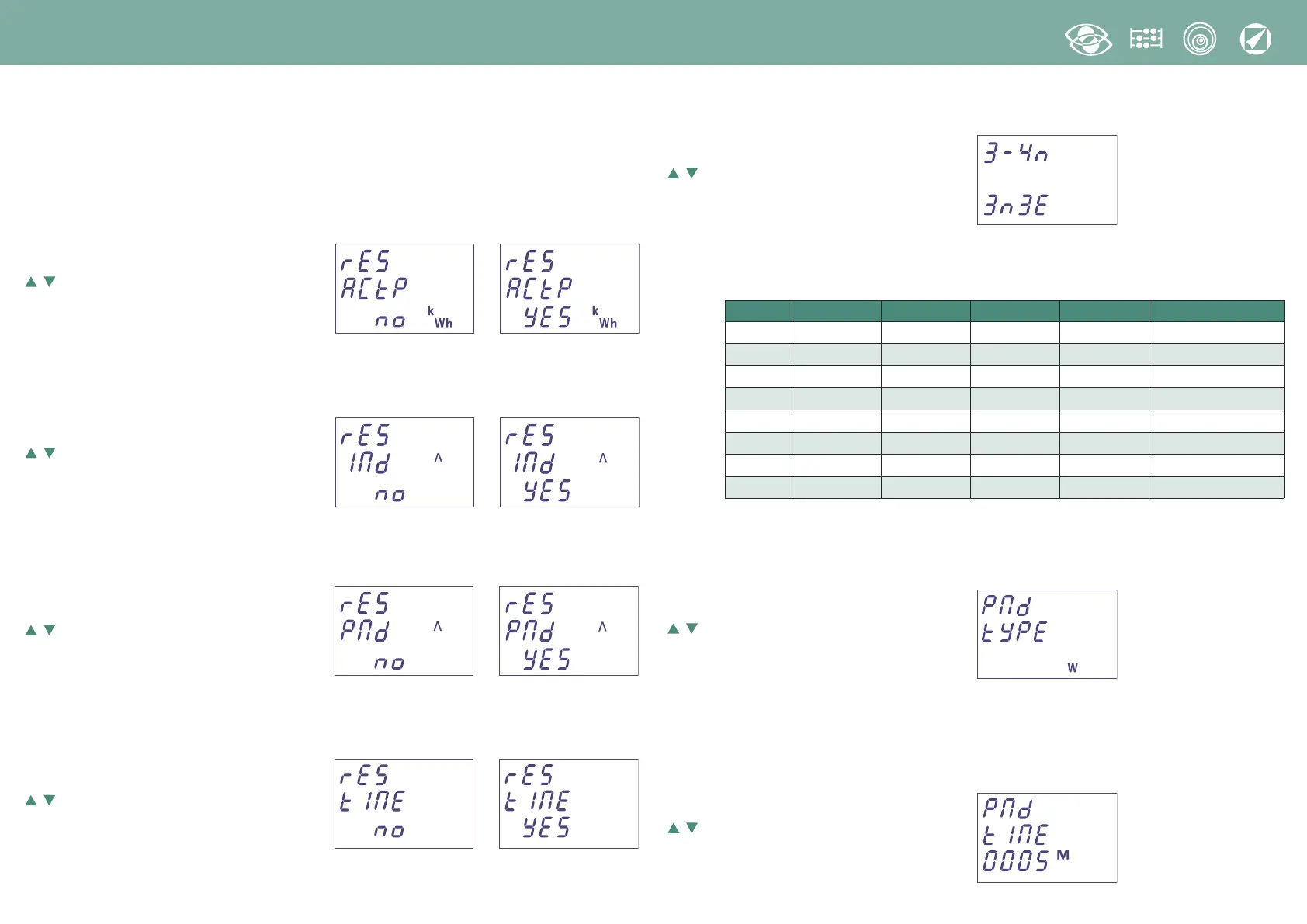

1.1 Resets
Possibility to reset the performed counts
1.1a Partial Active Energy
Reset no (no) or yes (YES)
selects no or YES
↵
confirms
1.1b Current Max. Demand
Reset no (no) or yes(YES)
selects no or YES
↵
confirms
1.1c Power Max. Demand
Reset no (no) or yes(YES)
selects no or YES
↵
confirms
1.1d Run Hour Meter (working hours and minutes)
Reset no (no) or yes(YES)
selects no or YES
↵
confirms
Symbol Line Load n°CT external Wiring Connection
1N1E Single-phase - 1 S 1000/305
3-1E 3-phase 3 wires Balanced 1 S 1000/357
3N1E 3-phase 4 wires Balanced 1 S 1000/358
3-2E 3-phase 3 wires Unbalanced 2 S 1000/306 Aron L1 - L2
3-2E 3-phase 3 wires Unbalanced 2 S 1000/307 Aron L1 - L3
3-2E 3-phase 3 wires Unbalanced 2 S 1000/308 Aron L2 - L3
3-3E 3-phase 4 wires Unbalanced 3
S 1000/309
3N3E 3-phase 4 wires Unbalanced 3 S 1000/310
