Nemo D4-L+
1.5 RS485 Communication (where provided)
According to the models, this meter can be without communication or equipped with
RS485 ModBus RTU / TCP or RS485 BACNET communication.

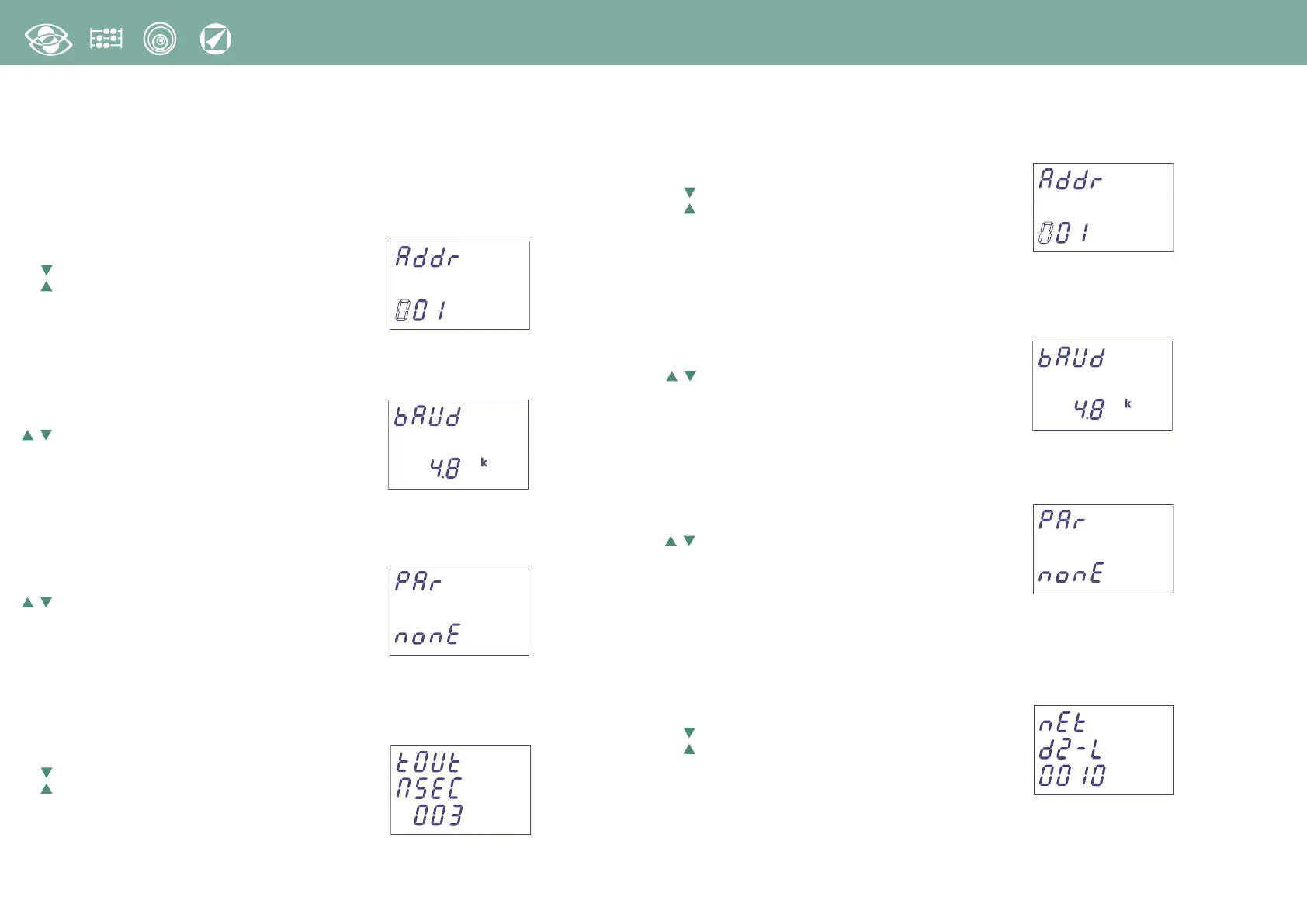

1.5a RS485 ModBus RTU / TCP Communication
Address number: 1...255

oves the cursor
 increases the loaded value

↵
confirms
Transmission speed: 4,8 – 9,6 – 19,2 kbit/s
selects speed

↵
confirms
Parity bit: none – even – odd
 selects parity

↵
confirms
Waiting time before answer (time-out): 3...100ms
moves the cursor
 increases the loaded value

↵
confirms
It is usually advisable to load 003 (3ms). If, in the connection to other interfaces the
communication is lacking, try to increase the value.
1.5b RS485 BACNET Communication
Address: 0...127
moves the cursor
 increases the loaded value

↵
confirms
Transmission speed: 9,6 – 19,2 – 38,4 - 76,8 kbit/s
selects speed

↵
confirms
Parity bit: none – even – odd
 selects parity

↵
confirms
Network address: 0...4000
moves the cursor
 increases/decreases the loaded value

↵
confirms
