IMER INTERNATIONAL S.p.A.
H110VF - H110VR
35
GB

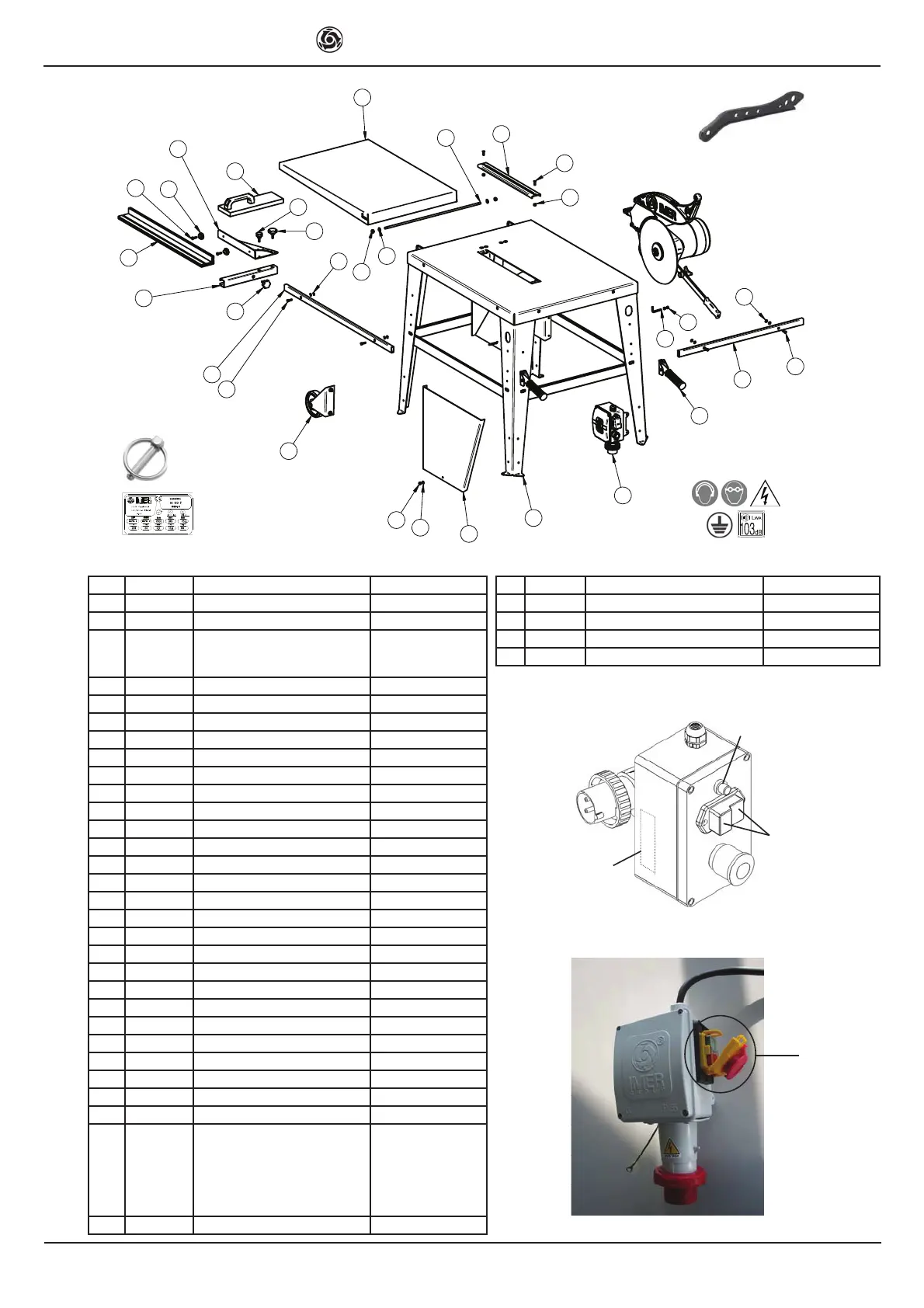

REF. PART NO. DESCRIPTION NOTES
1 3226826 FRAME
2 3223122 BLADE GUARD
3
3227086
3228282
3223155
ELECTRICAL PANEL
220-230V
380V
110V
4 3223321 HOOK M6X30
5 2223280 NUT 5588 M6
6 2222607 SCREW TSPEI 5933 M6X20
7 2224530 WASHER 6592 D.6X12.5
8 3223118 PROTRACTOR LONG GUIDE
9 3223119 PROTRACTOR SHORT GUIDE
10 2222189 SCREW
11 3223117 TIE ROD
12 3223116 PROTRACTOR
13 3214898 KNOB M8X25
14 2224140 WASHER 6593 D.8X18
15 3223279 KNOB M6X20
16 3204865 KNOB M6
17 3223129 GUIDE
18 2222016 SCREW TE 5739 M6X20
19 3210623 NUT 7474 M8
20 2222540 SCREW TCEI 5931 M6X20
21 3223114 BLADE GUARD
22 3223300 COMPLETE HANDLE
23 3223301 COMPLETE WHEEL
24 3223322 PUSHER HANDLE
25 3223120 PROTRACTOR GUIDE
26 3227085 ADDITIONAL TABLE
27 3223133 WORKPIECE PUSHER
28 3223316 ADHESIVE LABELS
29
3227087
3227088
3227090
3227091
3227089
3231332
DATA PLATE
H110F 230V-50HZ
H110F 380V-50HZ
H110R 230V-50HZ
H110R 380V-50HZ
H110R 110V-50HZ
H110R 220V-60Hz
30 3223143 SPLIT PIN 8X70
18
20
9
20
6
5
10
10
14
7
7
7
16
19
13
13
21
12
11
8
25
2
17
15
22
23
4
24
26
1
3
Fig. 11
27
30
29
28
220V-230V
31
33
32
380V
34
RIF. COD. DESCRIZIONE NOTE
31 3230206 CAPACITOR 60F
32 3209337 SWITCH 230V
33 3296471 THERMIC SWITCH
34 3228761 COMPLETE 380V SWITCH
