IMER INTERNATIONAL S.p.A.
H110VF - H110VR
36
GB
REF. PART NO. DESCRIPTION NOTES
1 3226828 MOTOR SUPPORT
2 3226829 SUPPORT
3 3226818 RIVING KNIFE
4 3223136 DISC
5 3223132 BLADE GUARD
6
3223148
MOTOR
230V/50HZ
3231268 220V/60HZ
3223153 380V/50HZ
3223154 110V/50HZ
7 3227376 HANDLE
8 3224763 BEARING 6305 2RS
9 3228071 SPINDLE
10 2222076 SCREW TE 5739 M8X25
11 3227375 SHIM
12 3210623 NUT 7474 M8
13 3226747 SCREW TTCQ 5732 M8X40
14 3223319 KNOB M8
15 3223277 KNOB
16 3223150 SCREW TCEI 7984 M8X16
17 3227870 SCREW TEFR TRIL M8X16
18 1229346 TAB 6604-A 8X7X25
19 3227631 PIN 6364 6X22
20 3227986
INTERNAL
FLANGE
21 3223127
EXTERNAL
FLANGE
22 3208541 NUT M20X1.5 SX
23 2224380 WASHER 12X25
24 3223147 GUARD
25 2222064 SCREW TE 5739 M8X16
26 3201339 SCREW TSPEI 5933 M8X25

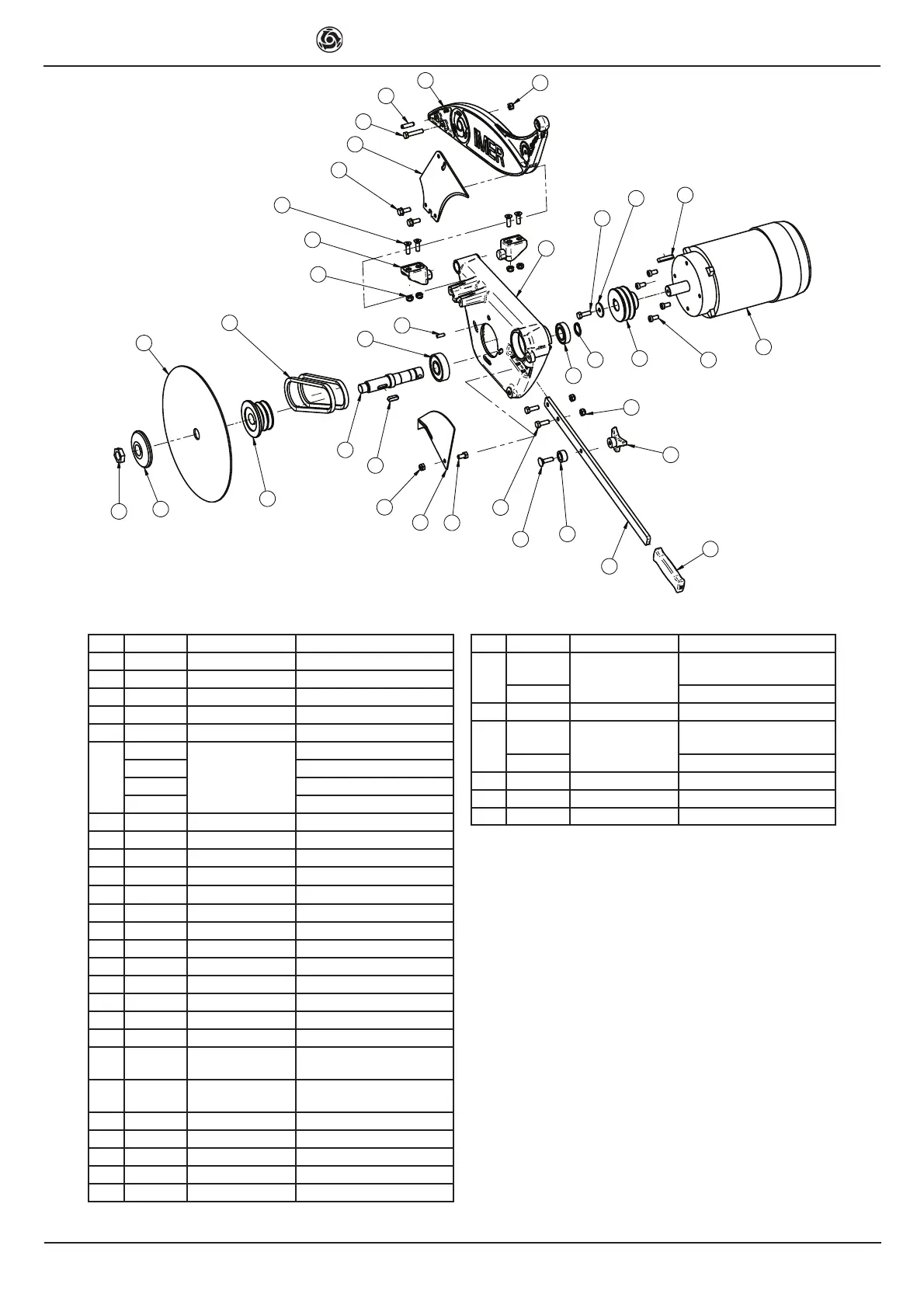

Fig. 12
23
18
17
25
10
10
29
27
26
22
12
12
12
19
30
16
15
13
14
8
20
21
28
5
4
24
3
9
1
2
11
7
32
31
6
33
12
27 2229345 TAB 8X7X40
28
3223128
PULLEY
COD. 1188481 - 1188482 -
1188483 - 1188484 - 1188480
3231330 COD. 1188485
29 2224190 WASHER D.8X32
30
3223131
BELT
COD. 1188481 - 1188482 -
1188483 - 1188484 - 1188480
3231331 COD. 1188485
31 2204451 BEARING 6005 2RS
32 3223320 SEEGER 7436 AS 25X2
33 2222088 SCREW TE 5737 M8X40
