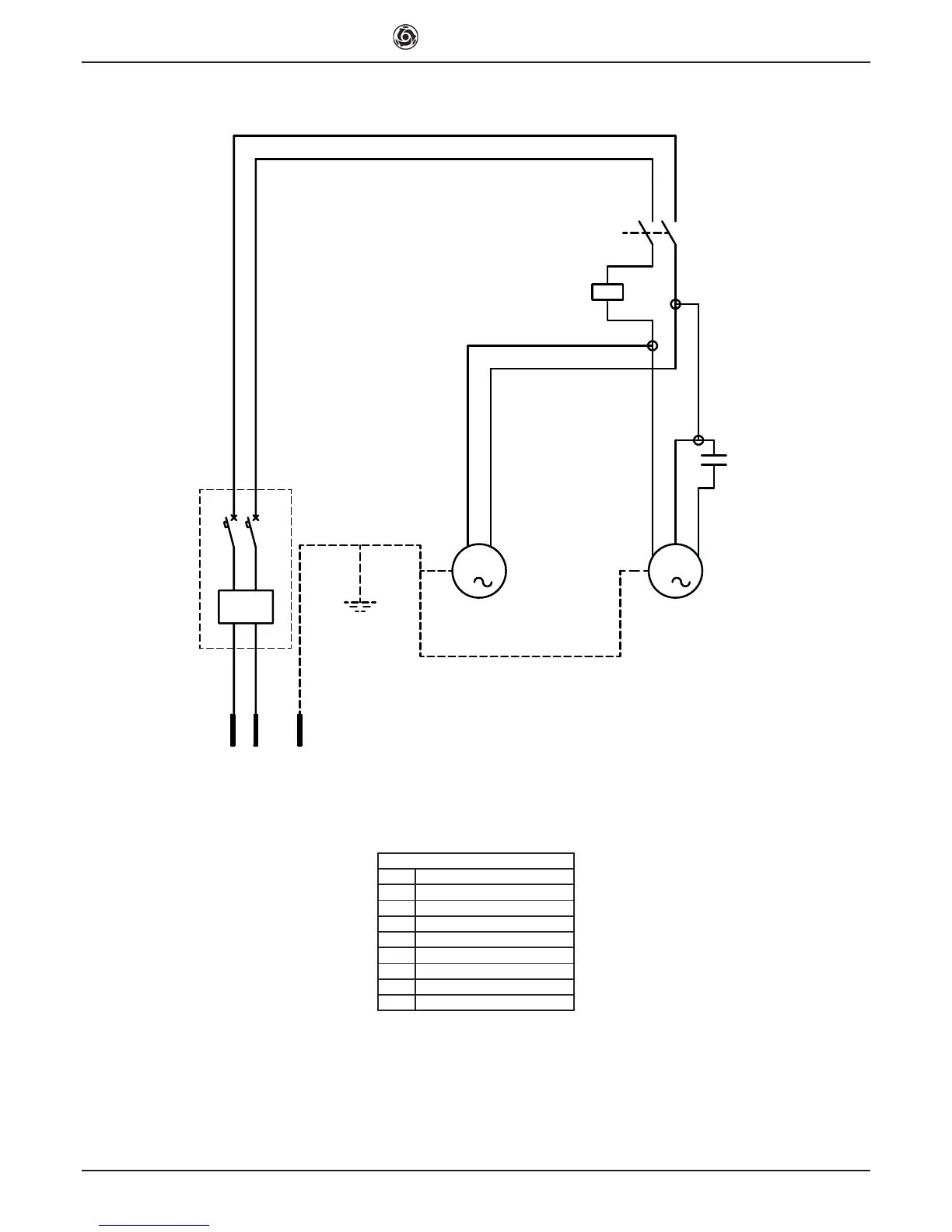

WIRING DIAGRAM
REF. DESCRIPTION
S1 CONTROL SWITCH
C1 CAPACITOR
PE EARTHING CABLE
N NEUTRAL LINE CABLE
L1 PHASE LINE CONDUCTOR
M1 BLADE MOTOR
M2 PUMP MOTOR
ID CURRENT CIRCUIT BREAKER
L1
N
PE
M1
M2
11
S1
U<
I d
C1
