IMER COMBI 250 VA - Water Hose

IMER U.S.A. Inc.
COMBI 250 VA
14
8
14
5
1
3
15
2
13
4
7
9
11
12
10
17
19
18
27
24
21
22
23
26
25
20
16
6

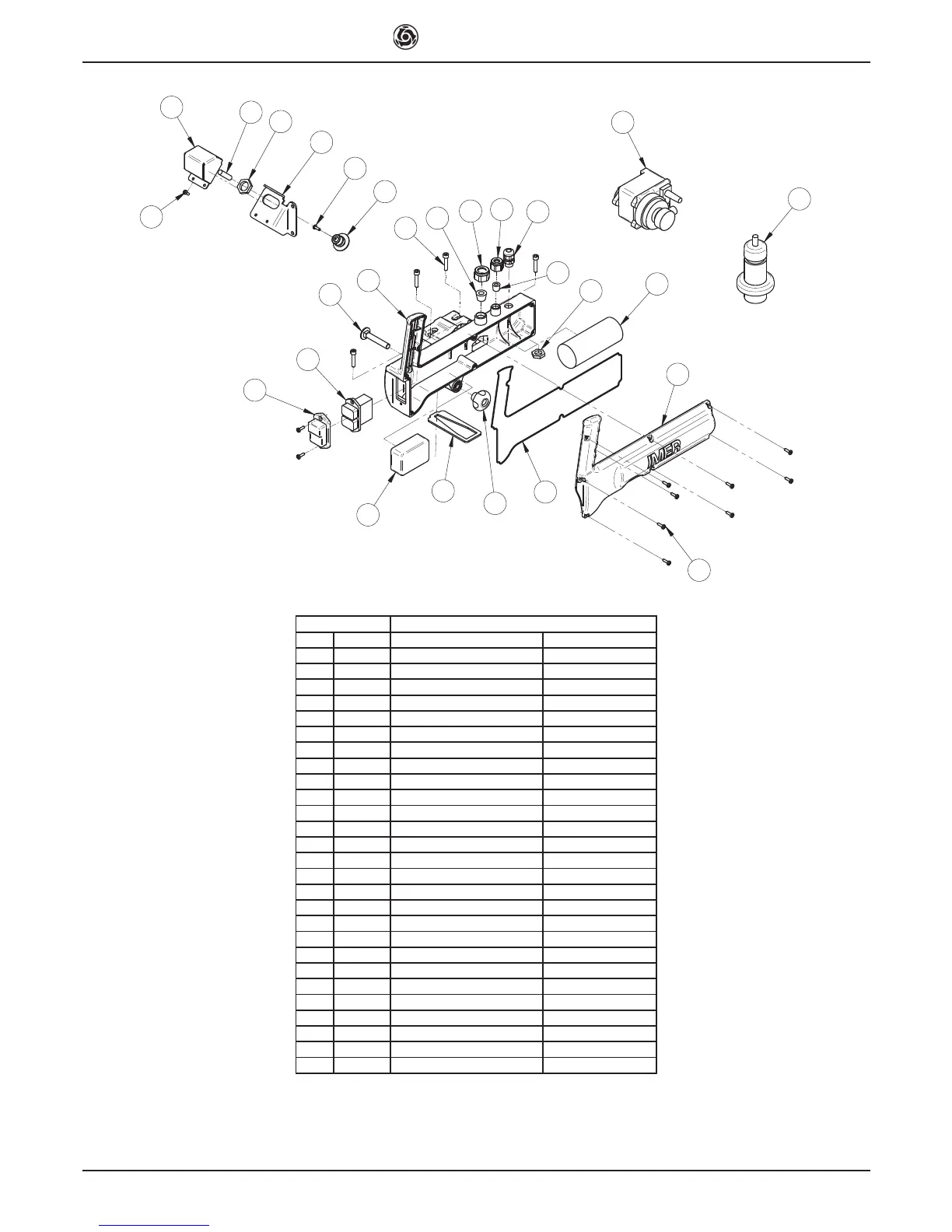

TAV. 5 - ELECTRIC PANEL
REF. CODE DESCRIPTION NOTES
1 3227467 JUNCTION BOX
2 3210114 GASKET
3 3210231 COVER
4
3231055
CAPACITOR
5 3210233 SWITCH
6 3209340 LEAKAGE PROTECTION
7 3225596 GASKET
8 3233422 WATER PUMP
9 3226095 CABLE GLAND LOCKING RING PG 16
10 3226101 CABLE GLAND GROMMET PG 16
11 3226098 CABLE GLAND LOCKING RING PG 11
12 3226100 CABLE GLAND GROMMET PG 11
13 3210116 BOLT TCTC 4,2X16
14 2222540 BOLT TCEI 5931 6X20
15 3210096 BOLT TTCQ 5732-65 M8X60
16 2284866 HANDWHEEL 180-40-M8
17 3224630 PLUG + ELECTRIC CABLE
18 3227508 CABLE CLAMP PG 9
19 3227487 CABLE GLAND NUT PG 9
20 3227481 SUPPORT
21 3227483 ADJUSTMENT BLOCK
22 3227489 CABLE GLAND NUT M20x1.5
23 3228250 LASER
24 3207155 BOLT TC PH 7687 M4X10
25 3227482 COVER
26 3228251 POWER SUPPLY
27 2222424 BOLT TC PH 6954 4.2X9.5
Water Hose
2242365
