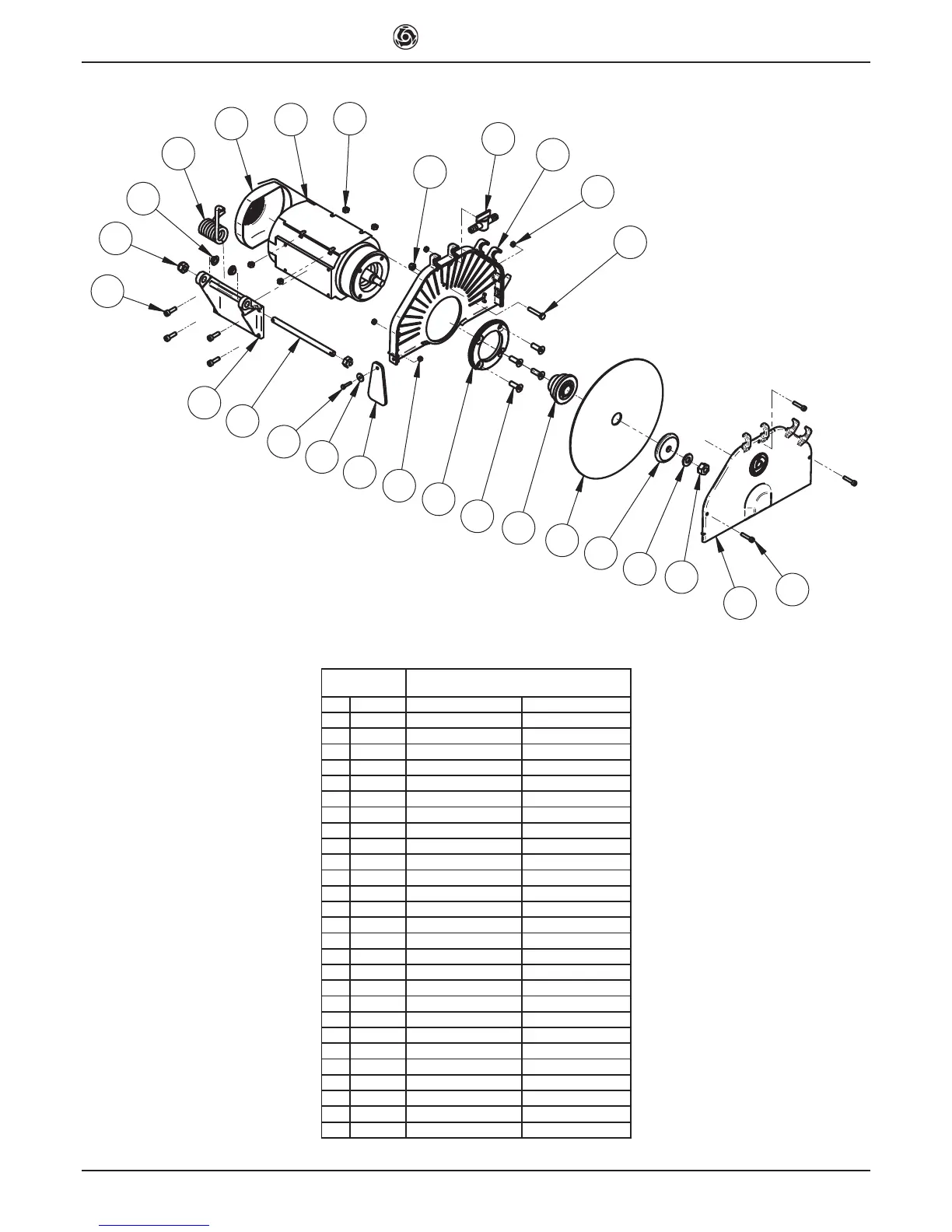

TAV. 4 - BLADE PROTECTION MOTOR
ASSEMBLY
REF. CODE DESCRIPTION NOTES
1 L000034 MOTOR
2 3230255 ENGINE SUPPORT
3 3210087 SPRING
4 3211935 BLADE GUARD
5 3210043 SPACER BRACKET
6 3210238 INNER FLANGE
7 1193
782 BLADE
8 3210046 OUTER FLANGE
9 3211933 BLADE GUARD
10 2224535 WASHER
11 2222587 BOLT TSPEI 5933 M8X20
12 3204399 BOLT TCEI 5931 M5X25
13 3207884 COCK
14 3209060 BOLT TE 8.8 5737 M6X35
15 2222001 BOLT TE 8.8 5737 M4X20
16 2223352 NUT 5588 D.5
17 2223920 NUT 7474 M10
18 2223926 NUT 7473 M4
19 3210050 SPRAY SHIELD
20 3210053 NUT 5588 M12 Z SX
21 2222540 BOLT TCEI 5931 M6X20
22 2224380 WASHER 6592 D.12X25
23 2223280 NUT 5588 M6
24 2223924 NUT 7473 M6
25 3230251 BUSHING GFM-1012-6
26 3230250 GOUPILLE
27 3230644 FAN COVER
7
15
21
23
16
17
18
22
10
11
12
13
14
2
5
6
8
19
20
9
4
1
24
3
25
26
27
3234385
Fan
