IMER COMBI 250 VA - Page 11

IMER U.S.A. Inc.
COMBI 250 VA
11

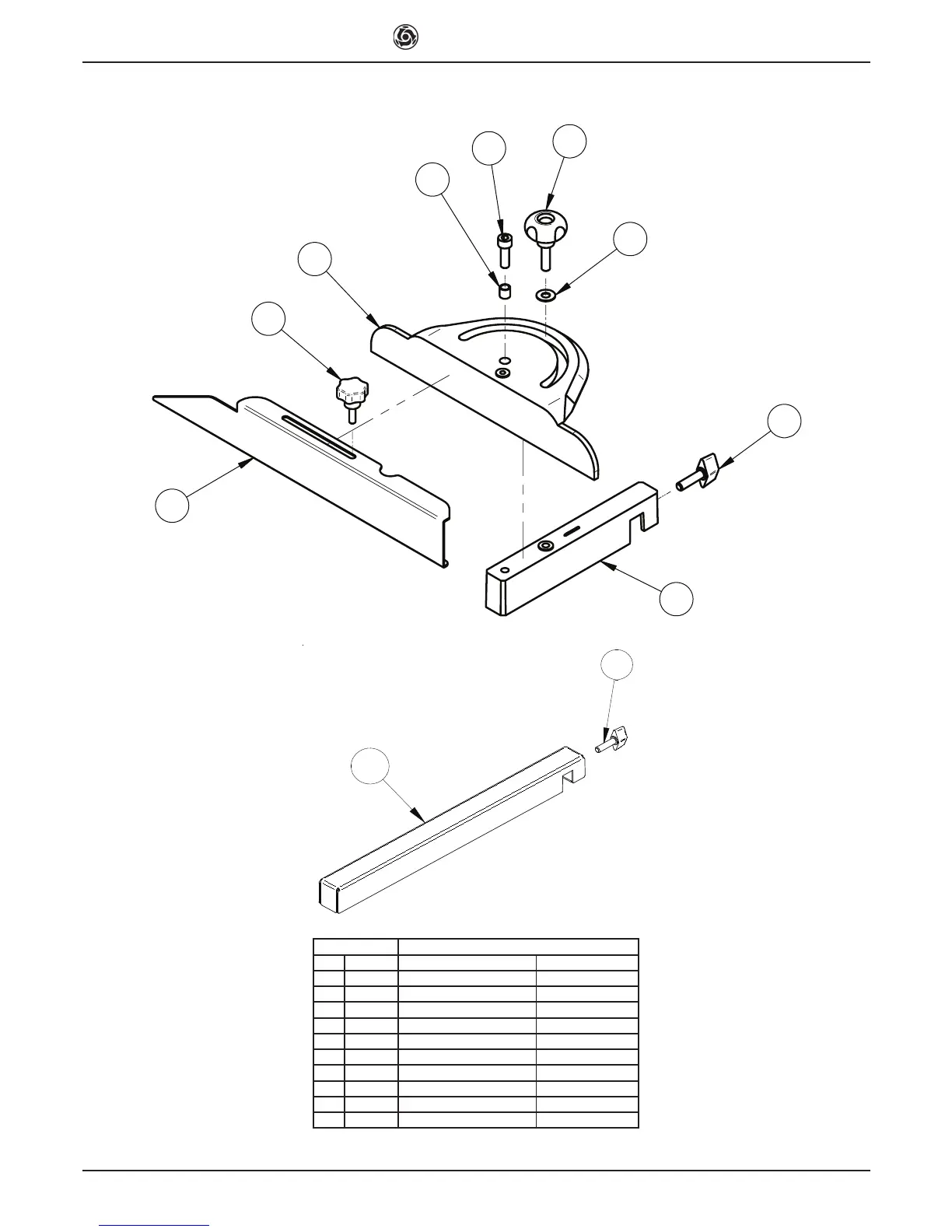

3226358 TAV. 3 - COMPLETE GONIOMETER
REF. CODE DESCRIPTION NOTES
1 3230617 GONIOMETER SUPPORT
2 3230616 GONIOMETER
3 3226360 SLIDING ROD
4 2224140 WASHER 6593 D.8X18
5 3207939 HANDWHEEL M8X30
6 3211381 HANDWHEEL M8X30
7 3223279 HANDWHEEL M6X20
8 3230638 SPACER
9 2222511 BOLT TCEI 5931 M8X25
10 3231271 BAR
9
4
5
6
7
1
2
3
8
10
6
Complete
3226358
