IMER COMBI 250 VA - Page 10

IMER U.S.A. Inc.
COMBI 250 VA
10

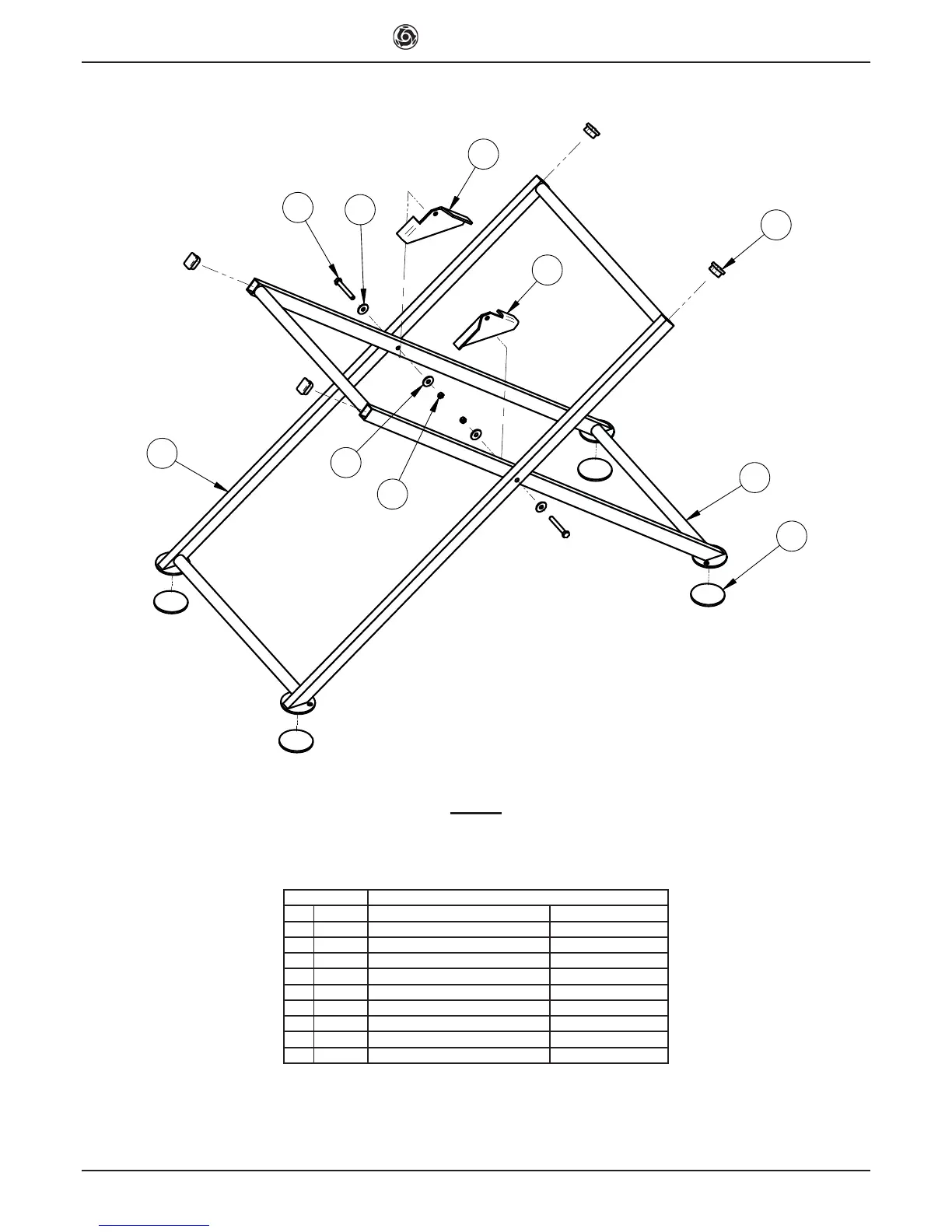

FIG. 6
TAV. 2 - COMPLETE FRAME
REF. CODE DESCRIPTION NOTES
1 3210641 EXTERNAL TRESTLE ELEMENT
2 3210645 INTERNAL TRESTLE ELEMENT
3 3207193 RIGHT RABBET
4 3207194 LEFT RABBET
5 1222030 BOLT TE 8.8 5737 M8X60 Z
6 2223923 NUT 7473 M8
7 2224204 WASHER 6593 D.8X24 Z
8 3210646 RUBBER COAITING
9 3206205 TERMINAL
1
2
5
6
7
7
9
3
4
8
Stand Complete
3210080
