IMER COMBI 250 VA - Page 16

IMER U.S.A. Inc.
COMBI 250 VA
16
3
2
1
4
6
7
8
5

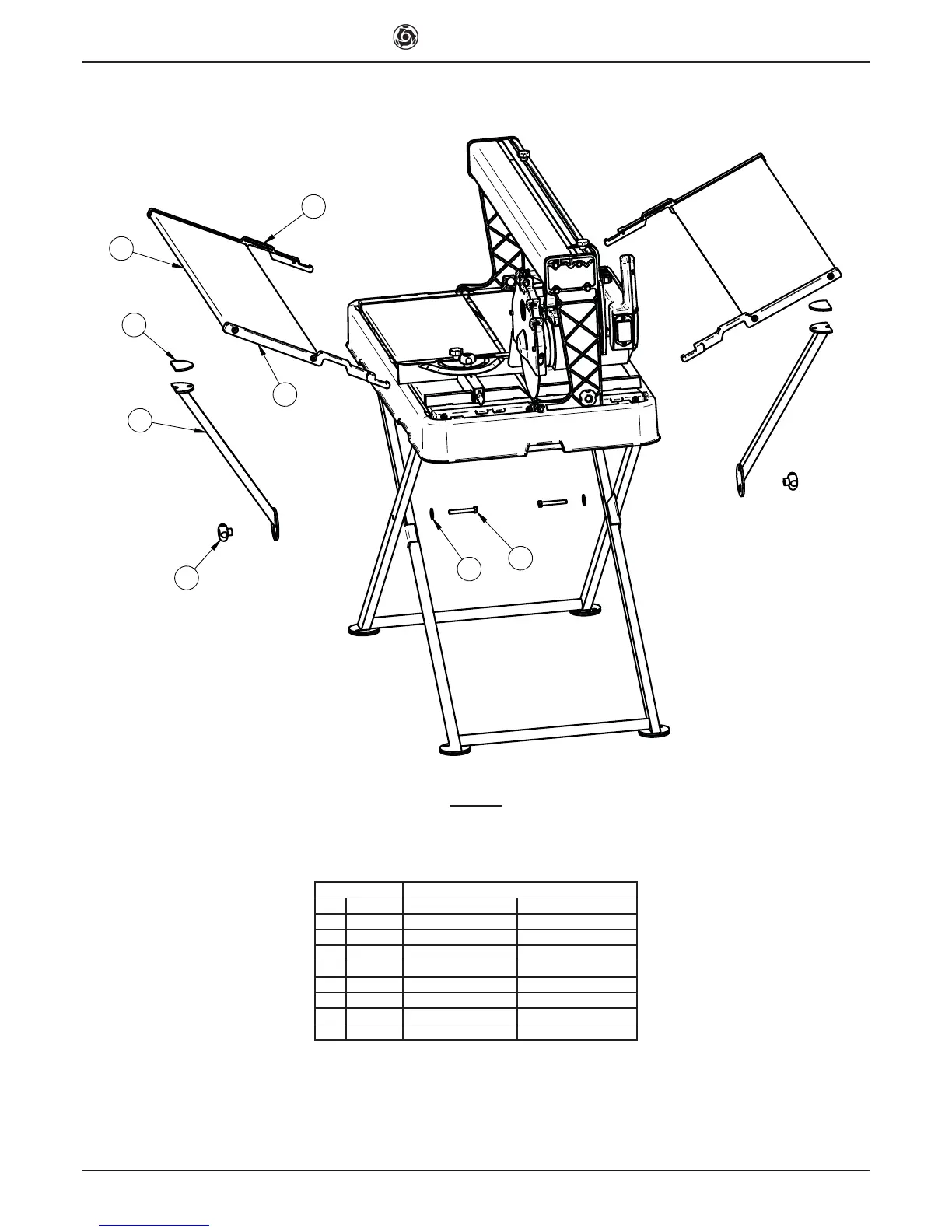

FIG. 7
COD.1188166 TAV. 7 - SIDE ROLLER
REF. CODE DESCRIPTION NOTES
1 3226145 SUPPORT
2 3226146 SUPPORT
3 3226066 SIDE ROLLER
4 3226233 SUPPORT
5 3210646 RUBBER COAITING
6 2284866 HANDWHEEL M8X30
7 2224204 WASHER 6593 D.8X24 Z
8 1222030 BOLT TE 8.8 5737 M8X60 Z
Screw
2222607
Complete
1188166
