MORTARMAN 120 PLUS

10
2
24
33
19
11
31
6
8
26
32
30
17
27
23
9
5
12
15
1
18
14
25
3
22
21
16
8
8
7
4
20
29
34

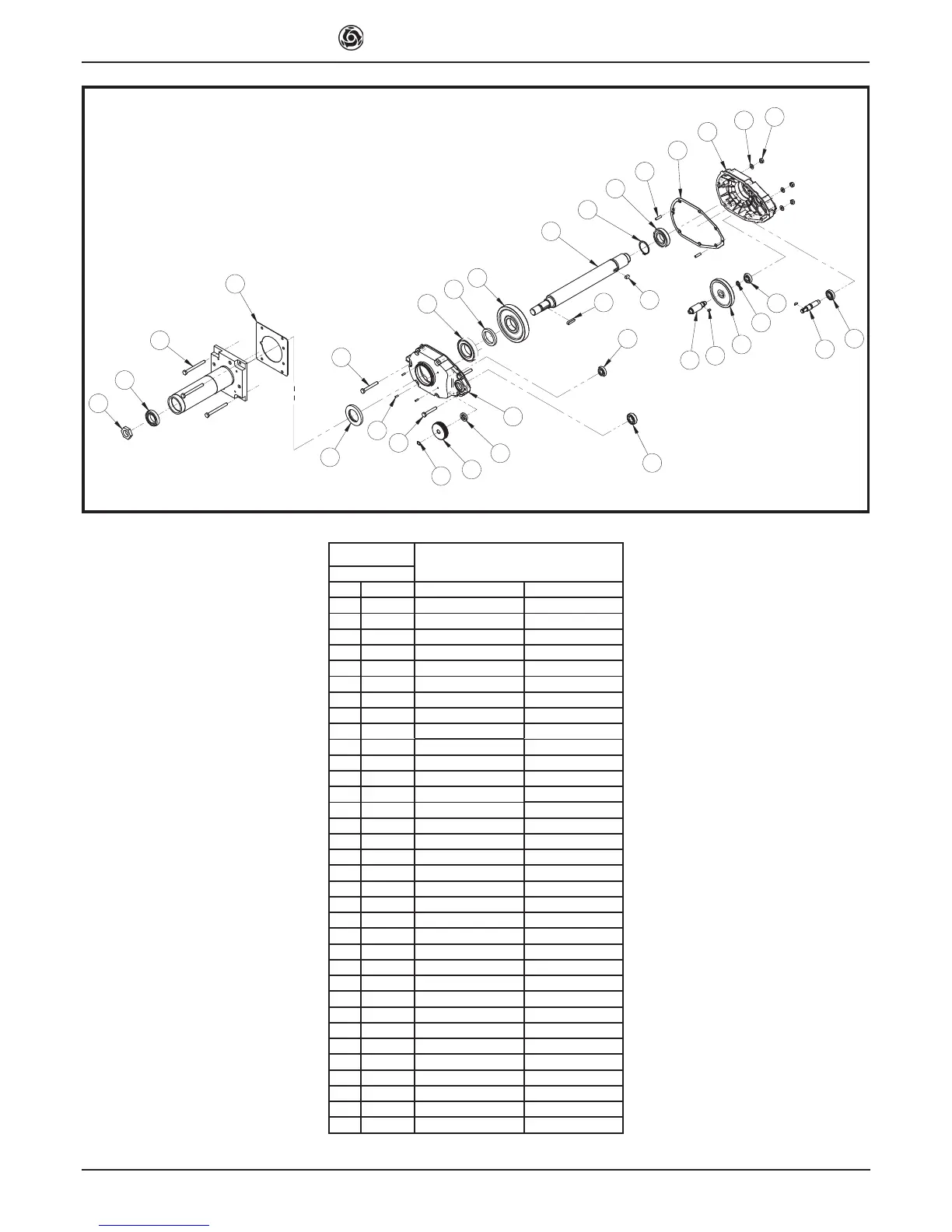

7$9
*($5%2;

5() &2'( '(6&5,37,21 127(6
1 3209514 GEAR BOX CASING
2 2204569 BEARING 6211
3 3213282 BEARING 6208
4 3226384 MAIN SHAFT
5 3208970 GEAR
6 3208983 BEARING 6204
7 3213178 KEY 10X8X20
8 3209682 BEARING 6302
9 3208966 SPACER BRACKET
10 1227330 STOP RING E 15
11 2227207 STOP RING E 55
12 3208975 PINION
13 2229250 KEY 5X5X15
14 3209801 GEAR
15 3208979 PULLEY
16 3226386 GEAR BOX CASING
17 2227320 STOP RING E 20
18 3209799 SHAFT
19 2224340 WASHER 6592 D.10X21 Z
20 2223650 NUT 5588 M10
21 2222145 BOLT 5737 M10X80 Z
22 3226388 OIL SEAL 90X55X10
23 3200094 OIL SEAL 35X20X7
24 2222148 BOLT 5737 M10X65 Z
25 3209811 GASKET
26 3213180 PIN D.8X30
27 2229259 KEY 6X6X14
28 3226390 BUSHING
29 2204505 BEARING 6008
30 1222694 BOLT 5737 M10X110 Z
31 2229555 KEY 10X8X40
32 3226451 PIN D.5X16
33 2223836 NUT 5589 M30X2
34 3234539 SPACER
