IMER STEP 120 - Page 97

97
IMER INTERNATIONAL S.p.A.
STEP 120

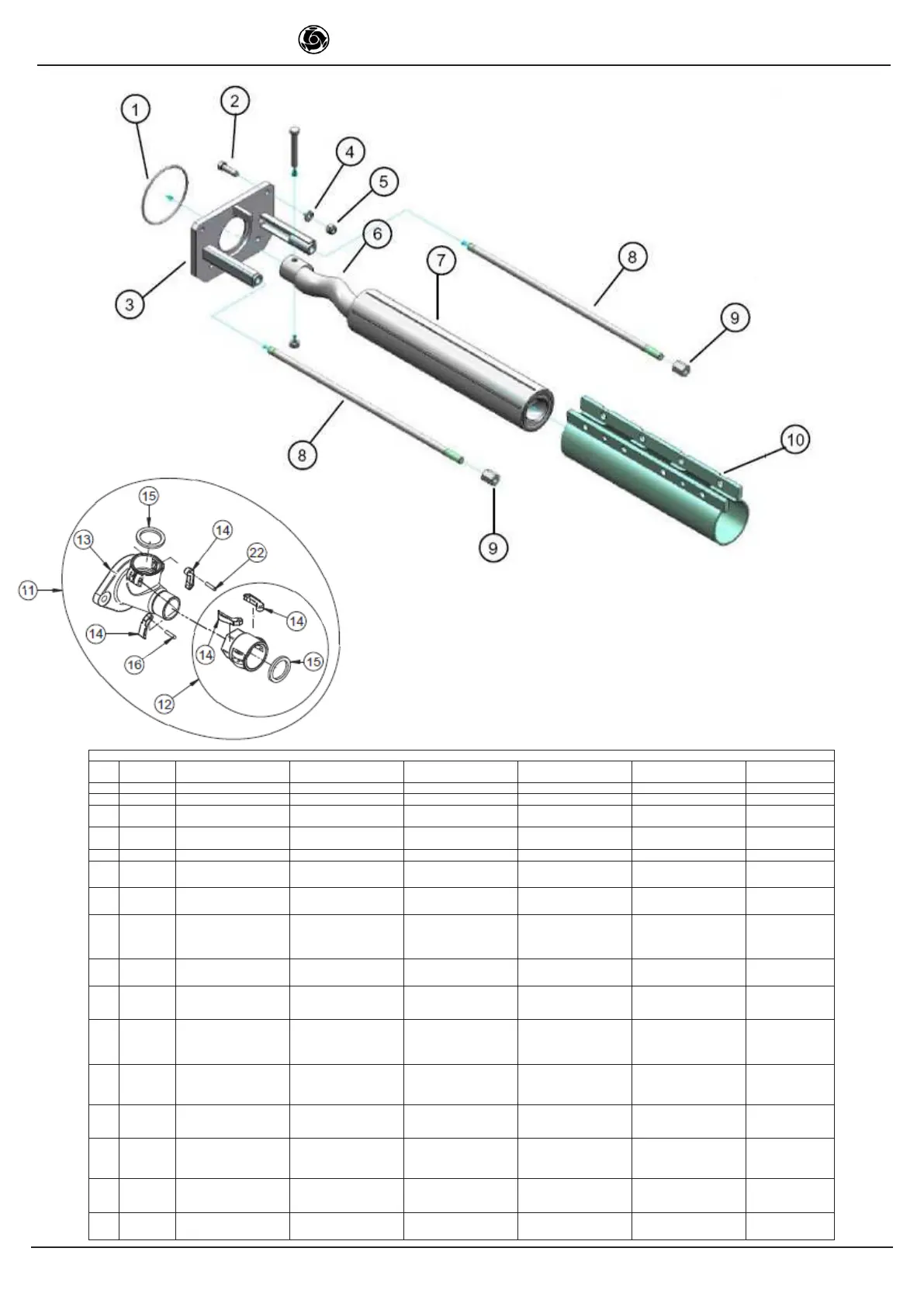

TAV.16 - 1107088 KIT POMPA 2L6 - KIT POMPE 2L6 - KIT PUMP 2L6 - KIT PUMPE 2L6 - KIT BOMBA 2L6
Rif. Cod. I F GB D E Note
1 3224356 ANELLO OR BAGUE RING RING ANILLO OR 4525
2 2222036 VITE VIS SCRW SCHRAUBE TORNILLO TE M12x40
3 3224354
FLANGIA SUPPORTO
VITE 2L6
FLASQUE SUPPORT DE
VIS 2L6
SCREW SUPPORT
FLANGE 2L6
HALTERUNGSFLANSCH
SCHNECKE 2L6
BRIDA SOPORTE TOR-
NILLO 2L6
4 2224380 RONDELLA RONDELLE PLATE PLAIN WASHER
FLACHE UNTER-
LEGSCHEIBE
ARANDELA PLANA ø12x25
5 2223930 DADO ECROU NUT MUTTER TUERCA M12
6 1107078 ROTORE 2L6 ROTOR 2L6 ROTOR 2L6 ROTOR 2L6 ROTOR 2L6 2L6
7 1107077 STATORE 2L6 STATOR 2L6 STATOR 2L6 STATOR 2L6 ESTATOR 2L6 2L6
8 3224357
TIRANTE COLLETTORE
DI MANDATA 2L6
TIRANT DE COL-
LECTEUR DE REFOULE-
MENT2L6
DELIVERY MANIFOLD
STAY 2L6
VERSTREBUNG
DRUCKSEITIGE SAM-
MELLEITUNG2L6
TIRANTE COLECTOR DE
IMPULSIÓN 2L6
9 3224395 DADO M16 SPECIALE ECROU SPECIAL SPECIAL NUT SPEZIALMUTTER TUERCA ESPECIAL
10 3224334 STRETTORE VITE SERRE JAQUETTE SCREW CLAMP
DROSSELSTÜCK
SCHNECKE
APREDATOR TORNILLO
11 3228329
COLLETTORE DI MAN-
DATA COMPLETO
COLLECTEUR DE RE-
FOULEMENT COMPLET
DELIVERY MANIFOLD
COMPLETE
DRUCKSEITIGE SAM-
MELLEITUNG
COMPLETE
COLECTOR DE IMPUL-
SIÓN
COMPLETO
12
3224492
ATTACCO A CAMME
DN50 F-2" G-F
RACCORD EXENTRI-
QUE DN50 F-2" G-F
CAM-LOCK COUPLING
DN50 F-2"" G-F
NOCKENANSCHLUSS
DN50 B-2" GAS-B
CONEXIÓN DE LEVA
DN50 F-2" G-H
DN50 F-2" G F
13 3224390
COLLETTORE DI
MANDATA
COLLECTEUR DE
REFOULEMENT
DELIVERY MANIFOLD
DRUCKSEITIGE SAM-
MELLEITUNG
COLECTOR DE IMPUL-
SIÓN
14
3224498
LEVA ATTACCO A
CAMME
LEVIER LEVER HEBEL PALANCA DN 25-35-50
15 3224499
GUARNIZIONE ATTACCO
A CAMME DN 50
JOINT DE RACCORD À
CAMES DN 50
SEAL CAM COUPLING
DN 50
DICHTUNG F. NOCKE-
NANSCHLUSS DN 50
GUARNICIÓN RACOR
TIPO CAMLOCK DN 50
DN50
16 3226640 SPINA GOUJON PIN STIFT CHAVETA
TAV.16
