IMER INTERNATIONAL S.p.A.
SYNTESI 190 - 250 - 300 - 350 EL
30
TAV. 5
1
2
3
5
1
1
4
6
TAV. 5

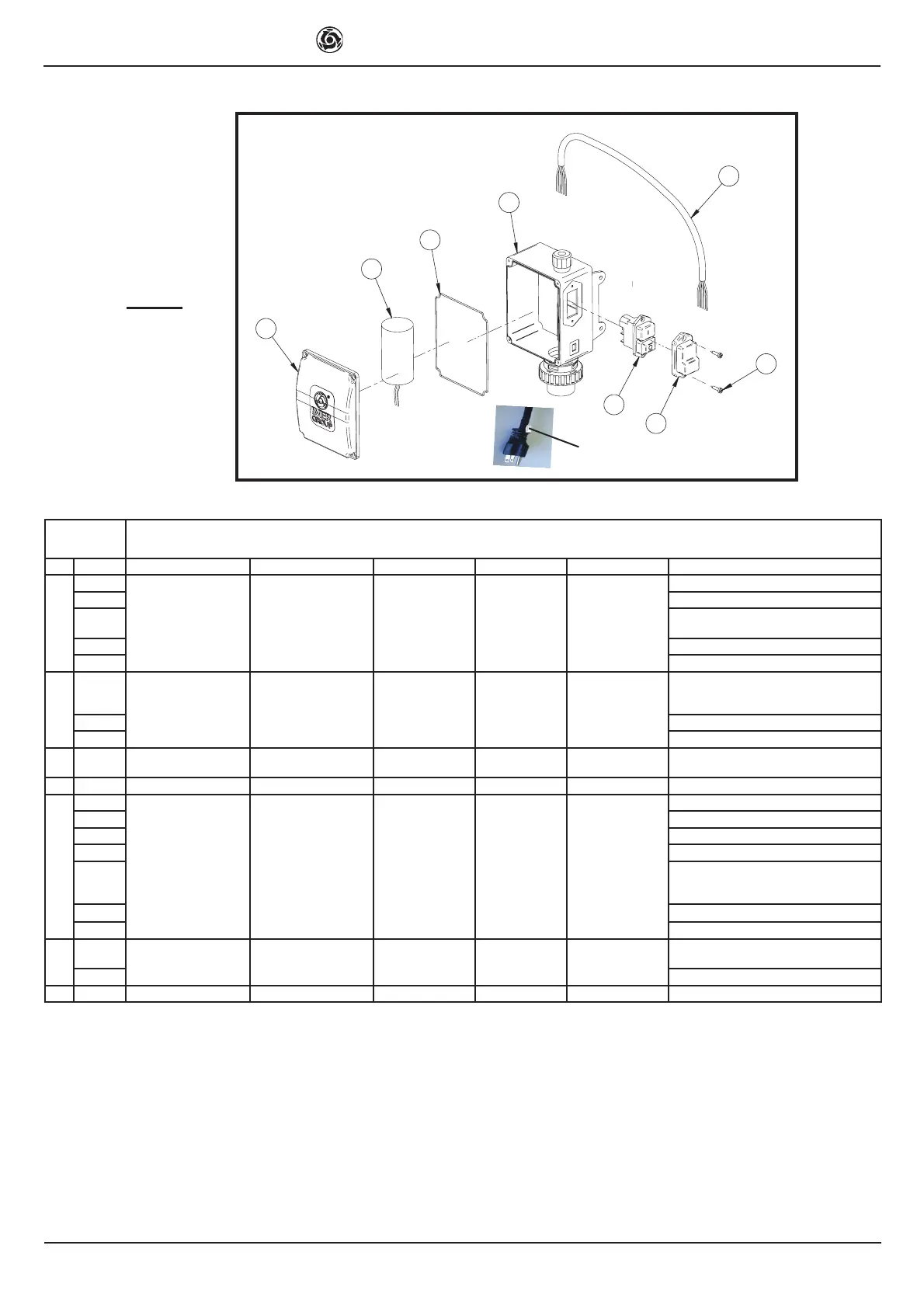

QUADRO ELETTRICO MONOFASE - TABLEAU ELECTRIQUE MONOPHAS - SINGLE-PHASE ELECTRICAL PANEL
SCHALTTAFEL EINPHASENVERSORGUNG - CUADRO ELÉCTRICO MONOFÁSICO
RIF. COD. I F GB D E NOTE
1
3228752
CASSETTA ELETTRICA %2Ì7,(5e/(&75,48( JUNCTION BOX GEHÄUSE CAJA ELÉCTRICA
COD. 1105650 - 1105700
3228754 COD. 1105703
3228753
COD. 1105750 - 1105752 - 1105800 - 1105801
(1105800-A Version Australia)
3228755 COD. 1105803
3234949 COD. 1105802
2
3209337
INTERRUTTORE INTERRUPTEUR SWITCH SCHALTER INTERRUPTOR
COD. 1105650 - 1105700 - 1105750
1105752 - 1105800 - 1105801
(1105800-A Version Australia)
3210872 COD. 1105703 - 1105803
3234950 COD. 1105802
3 3209340
PROTEZIONE
TRASPARENTE
PROTECTION
TRASPARENTE
LEAKAGE
PROTECTION
PROTECCIÓN
TRASPARENTE
PROTECCION
4 3210116 VITE VIS BOLT SCHRAUBE TORNILLO
5
3229078
CONDENSATORE CONDENSATEUR CAPACITOR KONDENSATOR CONDENSADOR
COD. 1105650 - 1105700 (450V 35µF)
3213013 COD. 1105703 (250V 120µF)
3229080 COD. 1105750 - 1105800 (450V 60µF)
3210707 COD. 1105803 (250V 110µF)
3209504
COD. 1105752
(1105800-A Version Australia)
(450V 50µF)
3231995 COD. 1105801 (450V 60 µF)
3229797 COD. 1105802 (250V 100 µF)
6
3226030
CAVO ELETTRICO &Æ%/(e/(&75,48( ELECTRIC CABLE STROMKABEL CABLE ELÉCTRICO
COD. 1105650 - 1105700 - 1105750
1105752 - 1105800 - 1105801 - (1105800/A)
3228762 COD. 1105703 - 1105803 -1105802
7 3209542 SPINA PER USA CHEVILLA PIN STECKER CLAVIJA 1105802
7
