MANCANZA FIAMMA /NO FLAME (E140901X) 20 di/of 33
The check of the output pressure (a.k.a. pressure available to the nozzle) should be made following the
directions listed below.
Turn off the machine completely. Close the gas valve that supply the machine. Go on the back side, open
the side panel of the machine and locate the gas valve shown in the figure. Open the screw contained in the
pressure tap "P out" using a screwdriver (the screw, although completely loose, can’t get out of his socket).

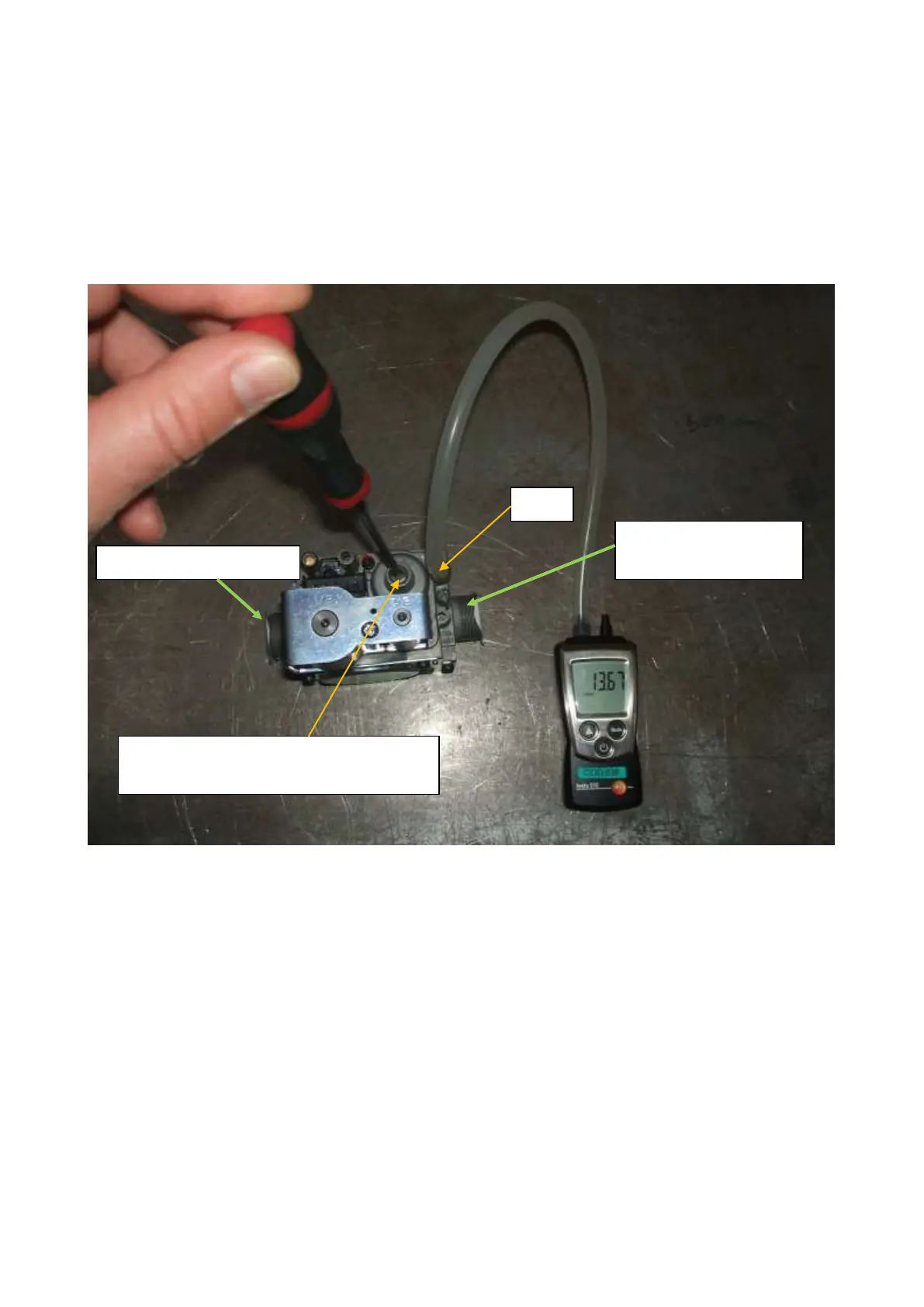

Connect your pressure gauge meter to the "P out" plug and slowly open the gas valve. Start a 90°C drying
cycle and check the value indicated by the instrument.
The correct output pressure must be equal to the pressure rating stated in the table in section here below.
VALVE’S INTERNAL PRESSURE
REGULATORE
GAS OUTLET (TO
THE NOZZLES)
To Next Page
