Imesa MCA 1500 - MCM (Im7 & Plc)

MANCANZA FIAMMA /NO FLAME (E140901X) 31 di/of 33

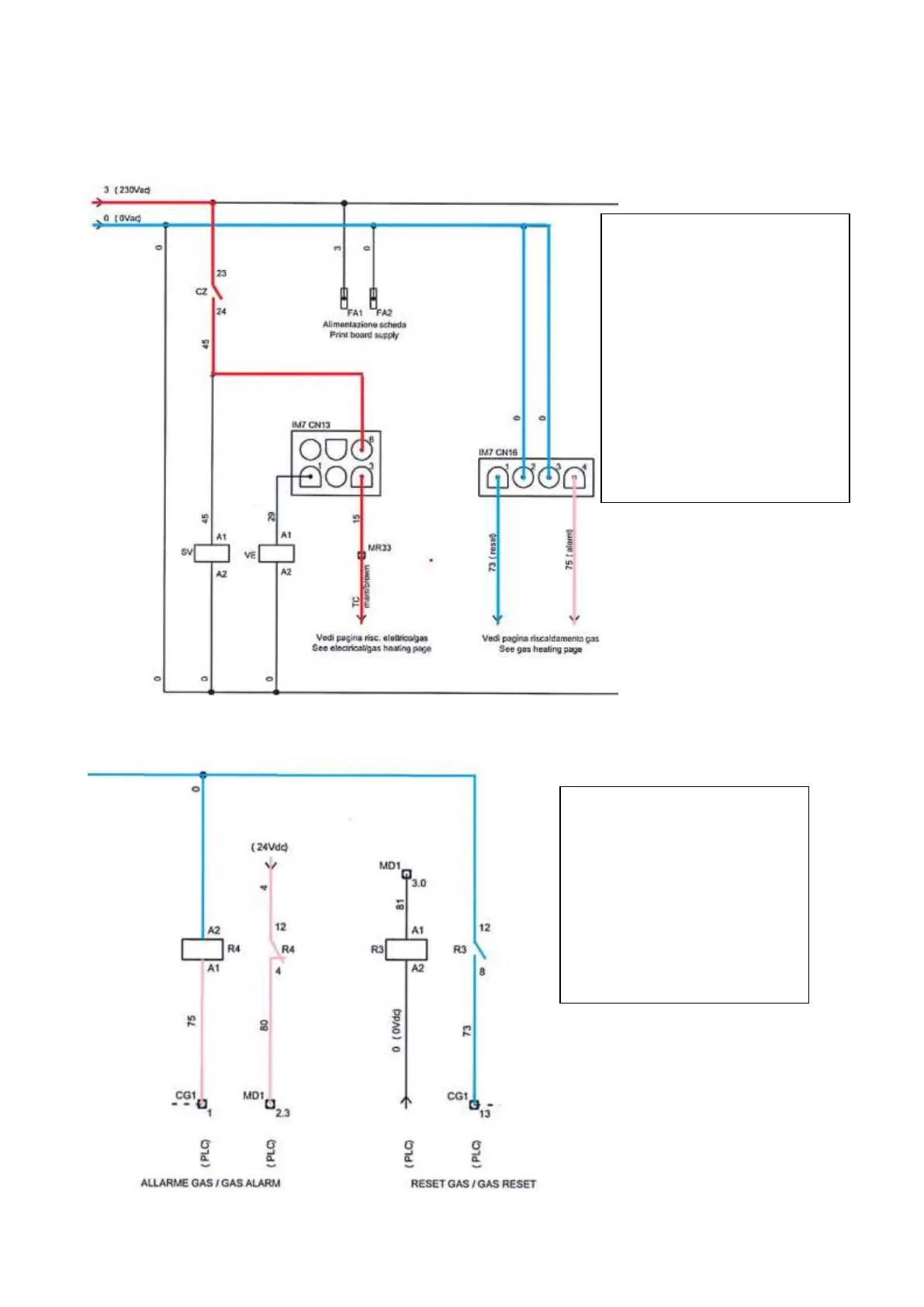

5.b MCM (IM7 & PLC)
LOGIC CARD CONNECTION (IM7 – MCM)
(HEATING CONTROL AND ERROR SIGNAL)
PLC CONNECTION (MCM)
(HEATING CONTROL AND ERROR SIGNAL)
WIRE N° 0 = NEUTRAL WIRE
WIRE N° 15 = HEATING
SIGNAL (230V~ SEND TO GAS
IGNITION UNIT)
WIRE N° 73 = RESET SIGNAL
FOR THE GAS IGNITION UNIT
(SEND TO GAS IGNITION
UNIT)
WIRE N° 75 = ALARM SIGNAL
(PHASE SIGNAL COMING
FROM THE GAS IGNITION
UNIT)
WIRE N° 0 = NEUTRAL WIRE
WIRE N° 73 = RESET SIGNAL
FOR THE GAS IGNITION UNIT
(SEND TO GAS IGNITION
UNIT)
WIRE N° 75 = ALARM SIGNAL
(PHASE SIGNAL COMING
FROM THE GAS IGNITION
UNIT)
