Imesa MCA 1500 - Page 22

MANCANZA FIAMMA /NO FLAME (E140901X) 22 di/of 33
U.M.
MCA 1500
MCA 1800
MCA 2100
CONSUMO GAS
GAS CONSUMPTION
kW
22
24,6
26
Ø
¾
¾
¾
m
3
/h (G20)
2,9
3,3
3,4
Kg/h (GPL / LPG)
2,0
2,2
2,3
According to the consumption (flow rate) of the machine, the diameter of the pipeline has to be suitably
dimensioned according to the length of the pipe itself. The following table shows, for example, the sections
recommended by the UNI 7129 norm.

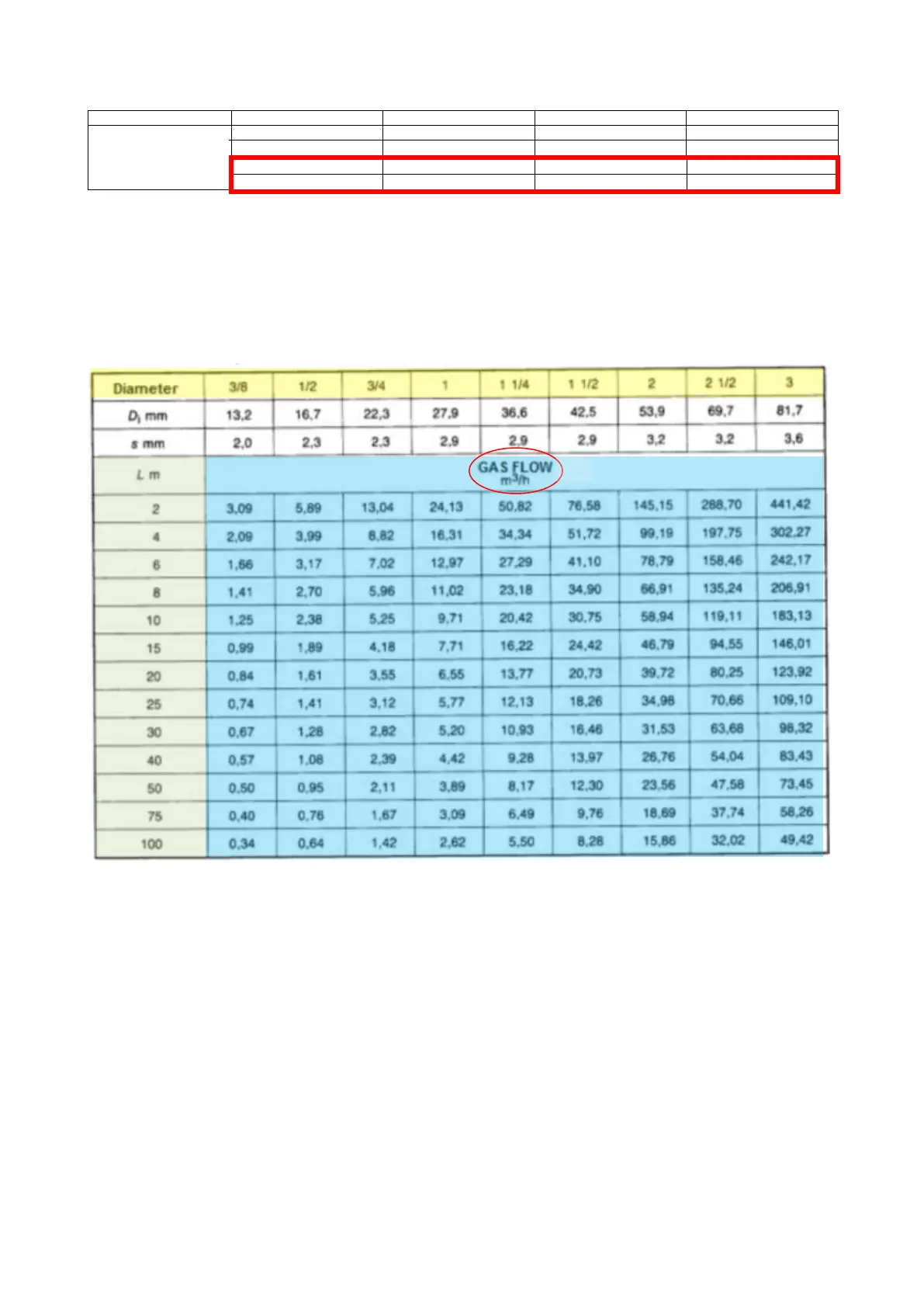

Prospect A III – Gas volume (m
3
/h at 15°C) for natural gas, density set to 0.6, stainless steel pipelines,
maximum pressure drop = 0.1 mBar
*
