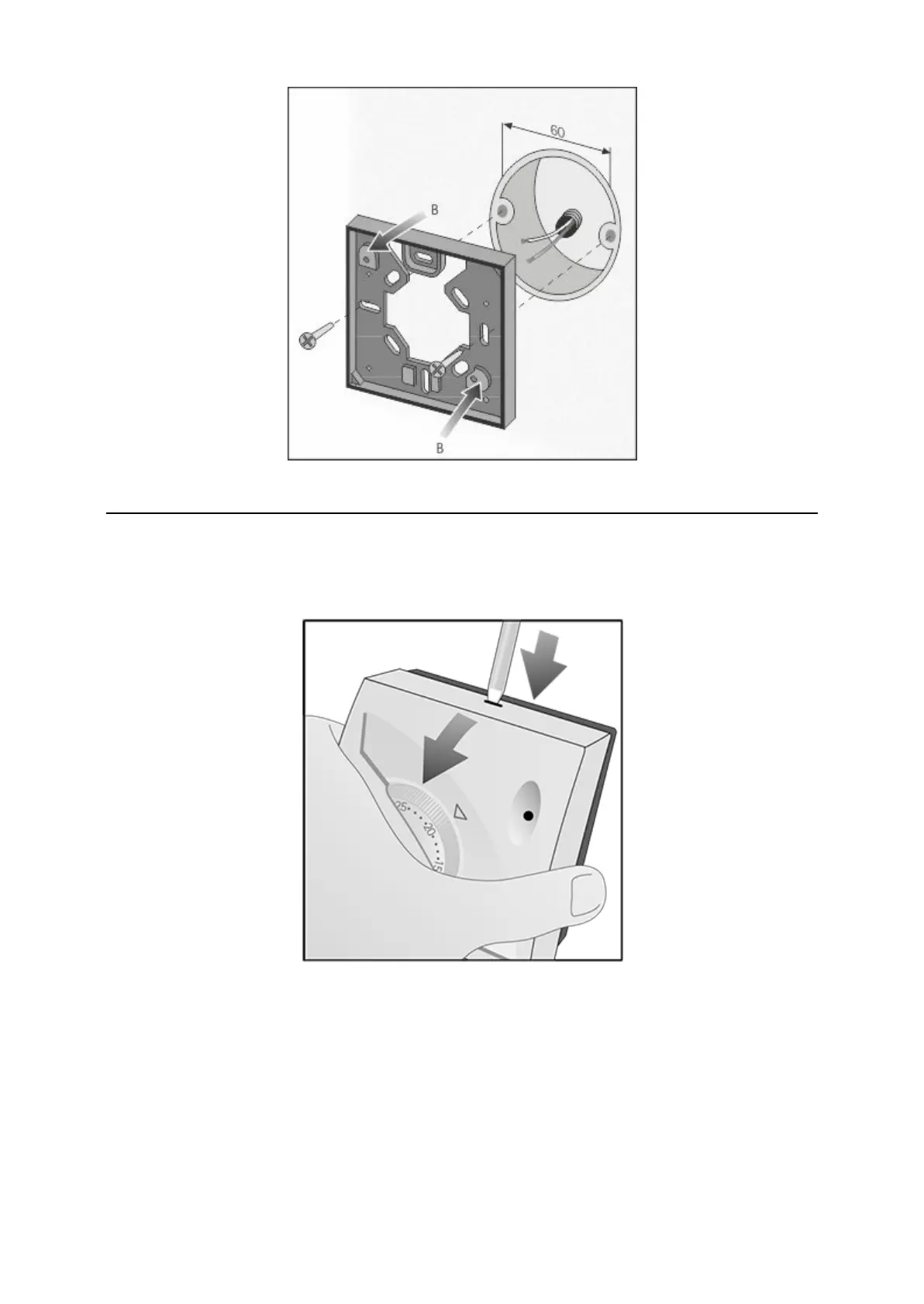

FIG. 7
B) Remove the front cover from the thermostat base by releasing the provided clip (g.8), then x it to the wall
(or to the sub-base tting) through the provided holes (g.9) and tighten it by means of suitable screws having
max of 3,5 mm.
FIG. 8
