IMKO TRIME-FM - Inserting T3 into the TECANAT Tube

14
4.2 Inserting T3 into the TECANAT tube

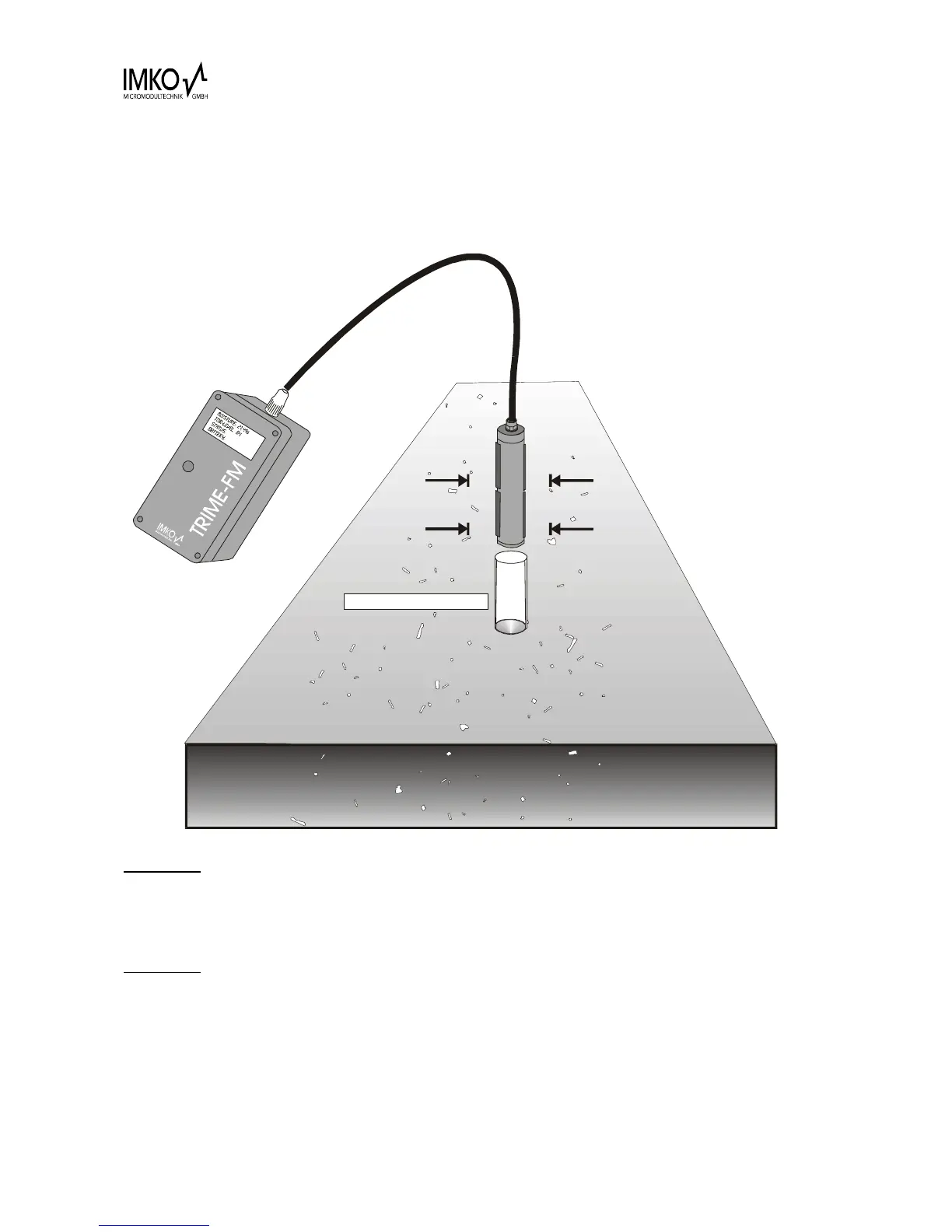

When you are going to work with your TRIME-T3 tube access probe:
Press the spring mounted wave-guides to the probe body when you insert the T3 probe into the tube!
Thereby you avoid ripping off the spring mounted wave-guides.
Please note
Should you use new T3 probes (eight wave-guiding plates instead of two) in old GFK tubes, we advice
to carefully chamfer the inner top side of the GFK tube. Thereby you avoid ripping off the spring
mounted wave-guides.
Please note
With the T3 comes three aluminium rods, which can be screwed together. They can be used to
orientate the T3 probe in the borehole.
