AUDAX TOP ErP and Integrated System

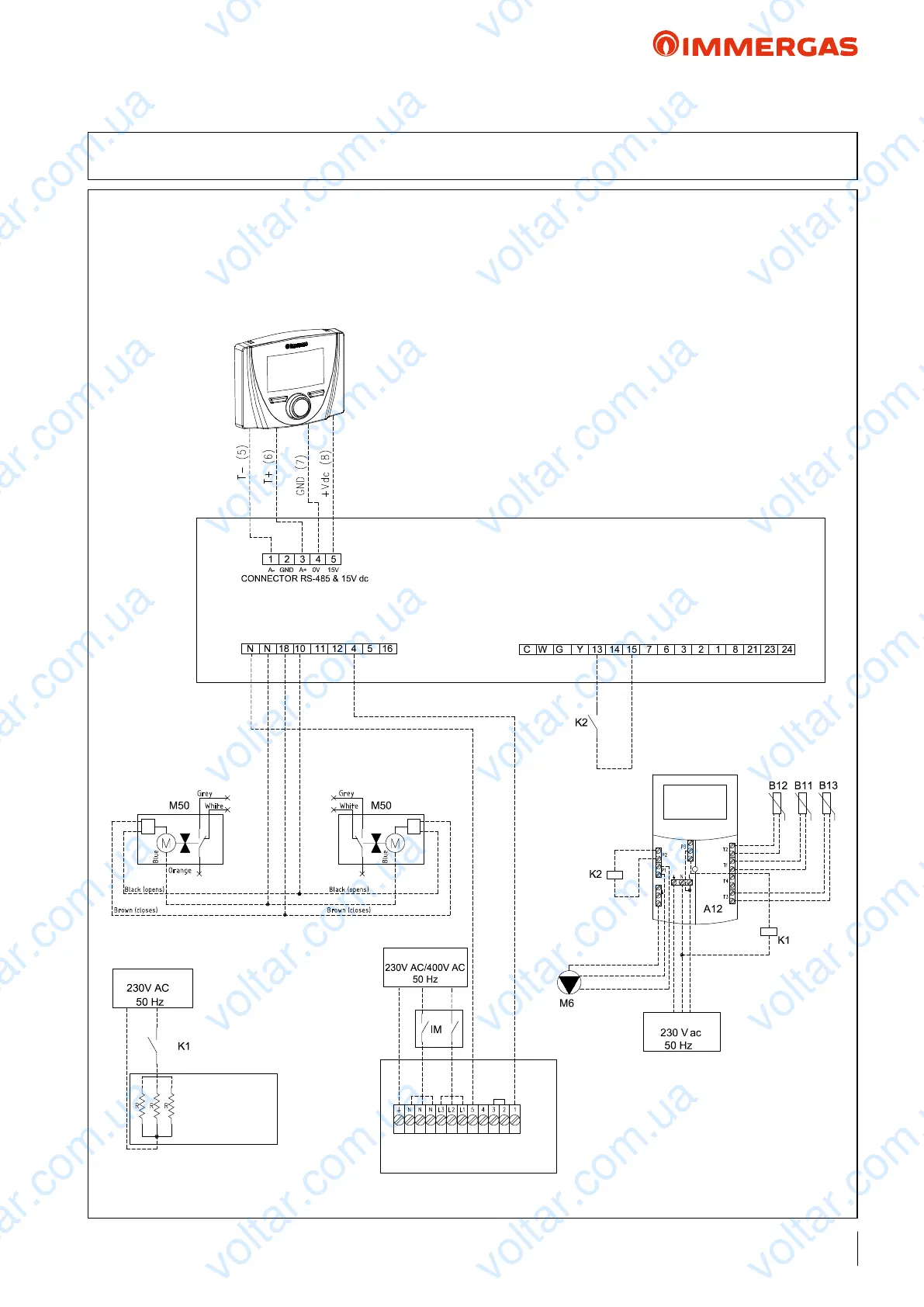

49.1 WIRING DIAGRAM: AUDAX TOP ErP + CONTROL PANEL STANDARD

FOR ROOM CONTROL + SOLAR PACK for DHW

KEY:

A12 - LCD Picto solar control unit (set SYST. 5)

B12 - Storage tank lower part temp. probe (NTC)

B11 - Solar manifold probe (PT1000)

B13 - Storage tank upper part temp. probe (NTC)

IM - Circuit breaker switch

K1 - Storage tank resistance voltage supply relay (not included)

K2 - DHW request relay active (not included)

M6 - Solar ErP circulation group

M50 - DHW priority 3-way diverter valve

NOTE: with this setting, the Control Panel (standard supply with

AUDAX TOP

ErP) is used as a Room Probe system.

Control Panel

Power supply

AUDAX TOP ErP P.C.B.

C.H. integrative electric

resistance kit

D.H.W. integrative

electric resistance kit

Grey

Orange

Black (opens)

Brown (closes)

Black (opens)

Brown (closes)

White

Grey

White

Blue
