Immergas MAGIS COMBO - 3.27 CONDENSATE TRAP SIPHON DISASSEMBLY.

51
10
i
9
9
i
9
9
11
j
52
k
l
k
l
12
l
X
X
X
X
X
Rif. X
13
13
12
12
12
l
X
X
X
X
45
INSTALLERUSERMAINTENANCE TECHNICIAN

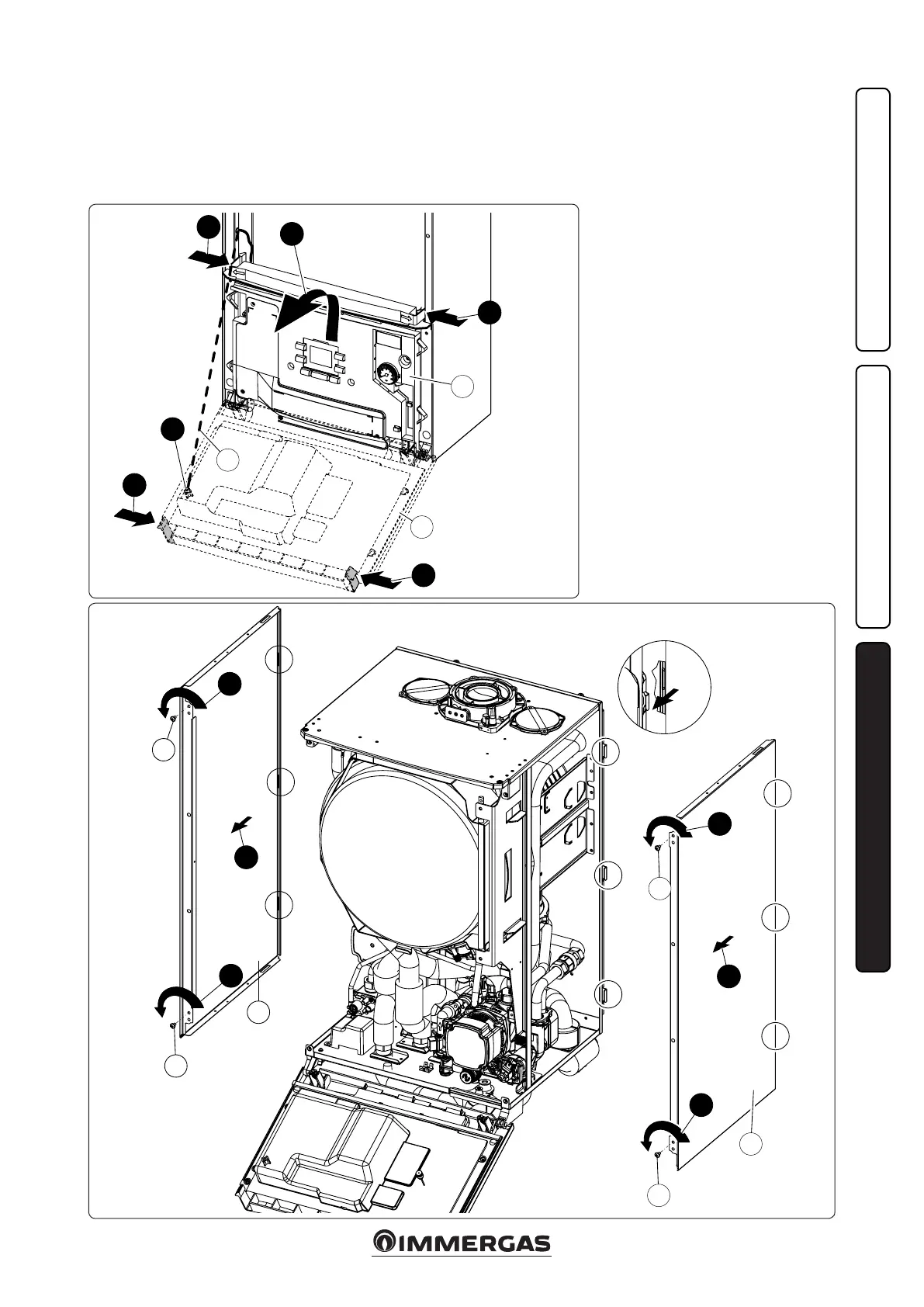

• Control panel (Fig. 51).
9) Press the hooks on the side of the control
panel (i).
10) Tilt the control panel (i) towards you.
e control panel (i) can rotate until the
support cord (j) is completely extended.
11) If the le side needs to be removed, unhook
the support cord (j) from the control panel
and proceed as follows.
• Sides (Fig. 52).
12) Unscrew the side (k) fastening screws (l).
13) Remove the sides by extracting them from
their rear seat (Ref. X).
3.27 CONDENSATE TRAP SIPHON
DISASSEMBLY.
To clean the condensate collection trap, you have
to remove it from the indoor unit; aer removing
the casing, proceed as follows.
- Remove the air intake pipe (Ref. 29 Fig. 30).
- Remove the fan (Ref. 27 Fig. 30) by unscrewing
the two screws on the manifold.
- If you don’t remove the right side (Ref. K Fig.
52) you must remove the igniter (Ref. 28 Fig.
30).
- Disconnect the condensate drain extension of
the trap.
- Unscrew the screw located under the valve
support plate xing the condensate drain trap.
- Disconnect the rubber adapter for exible hose
placed under the valve support plate.
- Remove the trap keeping it vertical to prevent
spillage of the condensate in the tank.
Ref. X
