5) Flight Camera Video/Power Connector

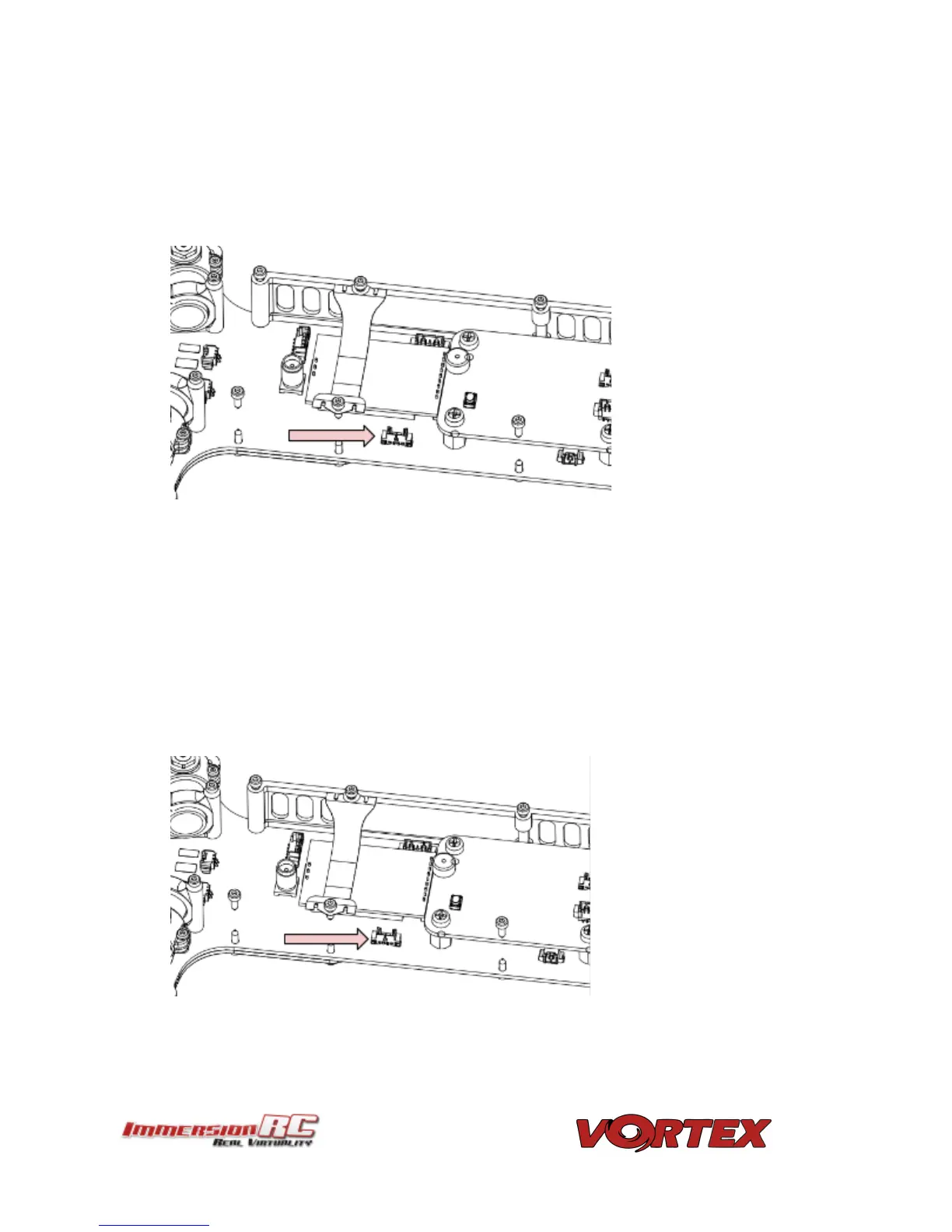

The flight camera video and power connector is a 3-pin Picoblade connector located
behind the left side plate. Accessing the connector is easiest by just removing the side
plate, without the need to remove the top plate.
The connector has the following pinout, starting from the front of the quad:
1. Video
2. Gnd
3. +5v
6) GoPro Power Connector
The GoPro power connector is a 2 pin Picoblade, also accessible through the left side
plate. It is typically used to power a GoPro with it’s battery removed, to remove weight
from the front of the quad, and therefore make getting the COG correct easier.
The connector has the following pinout, starting from the front of the quad:
