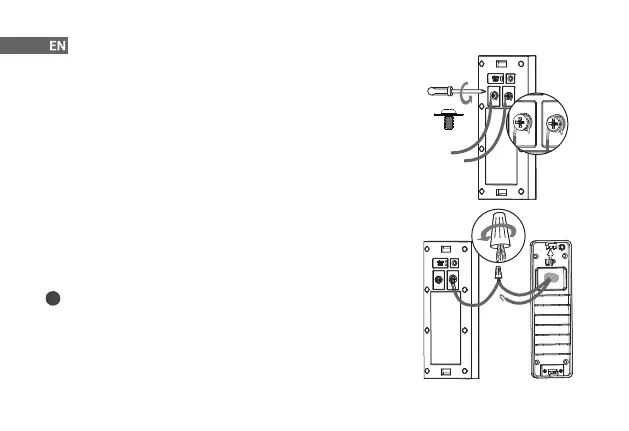

Step 4 Connect Wires
1. Partially tighten the terminal screws into the power port.
2. Loop your existing wires underneath the screws. Either wire can connect to
either screw.
3. Tighten the screws to secure the power wires.
Step 5 (Optional) Apply Extension Wires
1. If your existing wires are too short, thread the terminal screws through the
provided extension wires.
2. Align the ends of your existing wire and the extension wire.
3. Place the wire nut over the exposed wires and twist the wire nut clockwise to
tighten. Pull on the wires slightly to make sure that they are properly fastened
inside the wire nut.
i
Ensure there is enough space to t the wires and wire nuts into the hole in
your wall.
10
x 2
