LOCATION AND GROUNDING
Before using this generator it must be prepared
correctly before use. Locate the generator on
firm level ground away from buildings or other
structures ensuring that the exhaust is not
obstructed.
WARNING! It is advisable to properly earth-
ground your generator before starting using a
wire and a small earth stake. Note: The wire and
earth stake are not supplied with the unit.
Earth spike and cable can be purchased at your
local camping supplies, or alternatively an earth
spike can be made, and it is suggested you get
advice from a registered electrical trades
person. To make a spike use a copper tube or
copper rod 12mm diameter, a minimum length
of 200mm and with an M6 machine screw one
end. The cable used should be a maximum
length of 1 metre and a minimum of 1.0mm
2
to
carry a 10amp load. The cable should be
attached to the generator at the earth point
(Fig.5) and to the spike between a flat washer
and the copper with a lock washer under the
head of the M6 Machine screw in a similar
fashion to the earth point screw on the
generator.
When placing the spike into the ground the
generator must not be running and it is
suggested that the spike is pushed into the
ground by at least 100mm so that it is firm and
a litre of water poured around it to ensure good
earth continuity.
All electrical tools and appliances operated from
this generator must be properly grounded by
use of a third wire or be “Double Insulated.”
It is recommended to:
1. Use electrical devices with 3-prong grounded
plugs.
2. Use an extension cord intended for outdoor
use with a 3-pole receptacle and a 3-prong plug
at opposite ends to ensure continuity of the
ground protection from the generator to the
appliance.
Check and adhere to all applicable local
regulations relating to grounding specifications.
Consult a qualified electrician or service
personnel if the grounding instructions are not
completely understood or if in doubt as to
whether the generator is properly grounded.

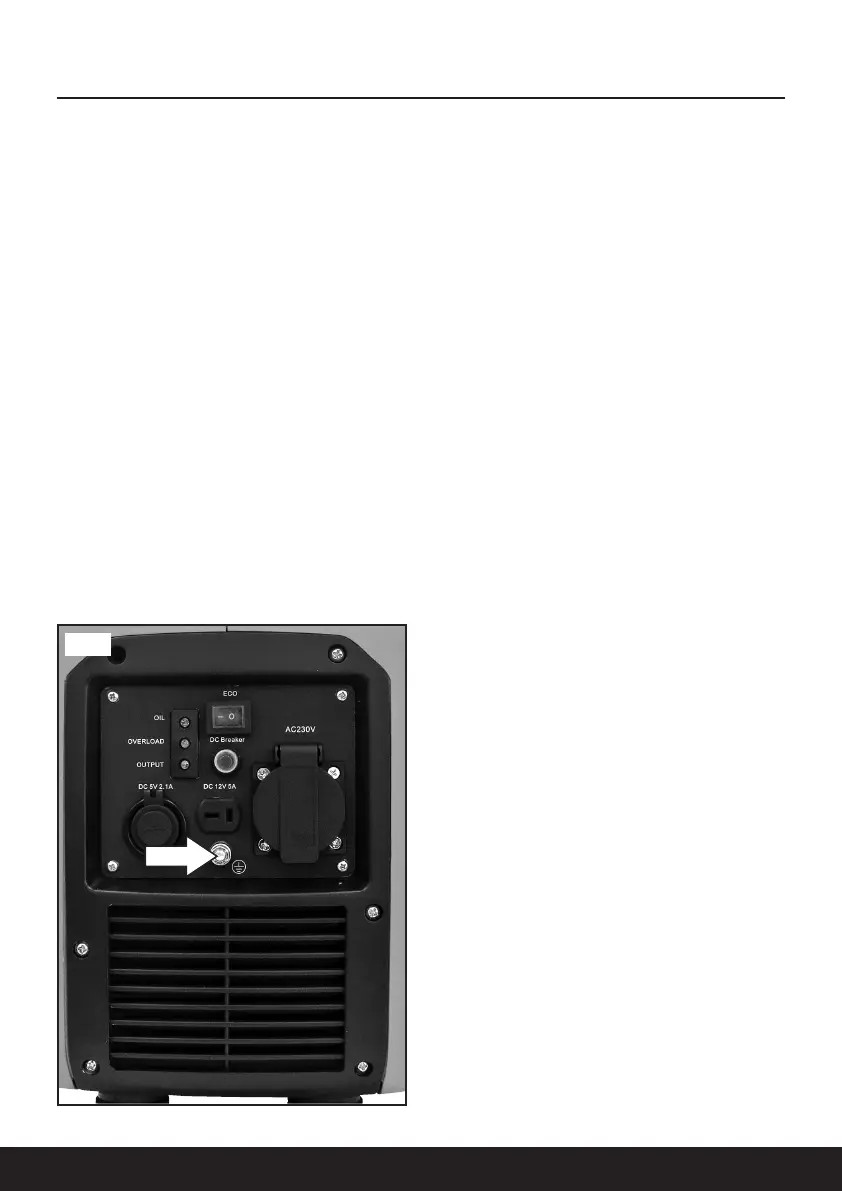

Fig 5
