COMPONENTS
13
6
9
11
12
7
43

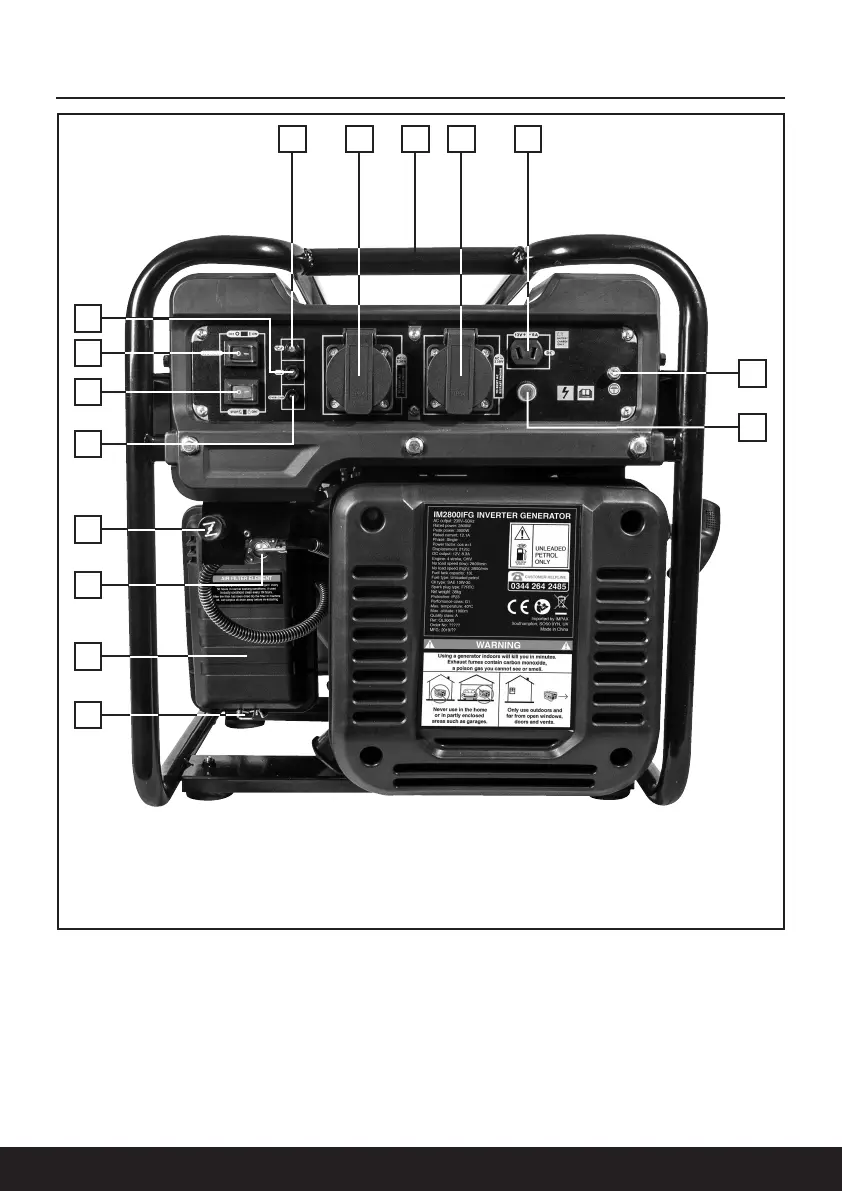

Component List
1. Oil alert indicator (yellow)
2. AC socket (Left side)
3. Frame
4. AC socket (Right side)
5. DC socket
6. Ground (earth) terminal
7. DC circuit breaker
8. Air filter cover release latch
9. Air filter cover
10. Fuel valve
11. Choke knob
12. Engine overload indicator (red)
13. Engine On/Stop switch
14. Economy control switch
15. AC power indicator (green)
52
14
15
10
1
8
