OPERATING INSTRUCTIONS

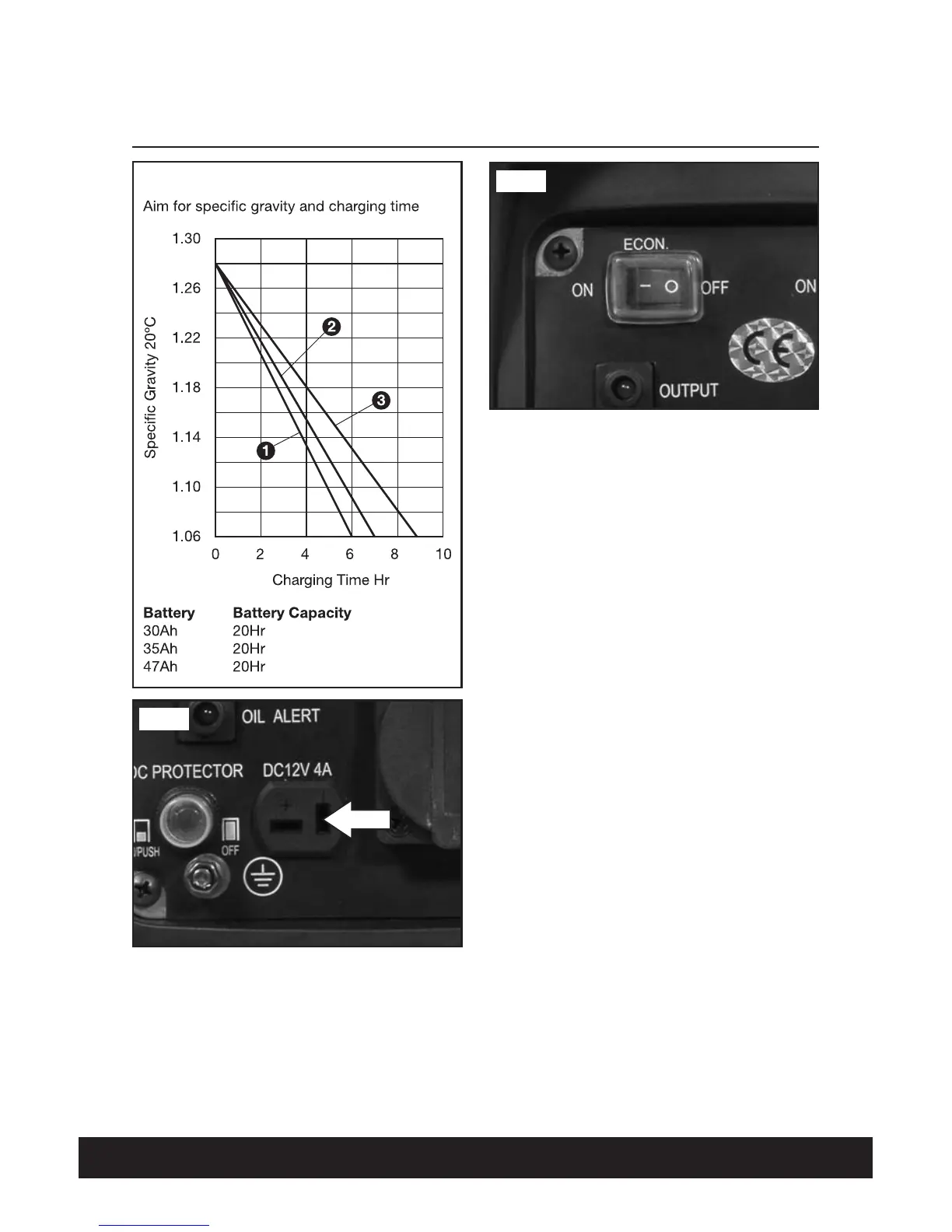

Economy Control Switch (Fig 11)
On: Recommended to minimize fuel
consumption and further reduce noise levels
when no load is applied to the generator.
Off: The smart throttle system does not operate.
Engine speed varies with the load.
With the switch in the On position, the engine
speed is controlled automatically. The engine
speed is lowered when the load on the
generator is reduced, turned off or
disconnected. When loads are turned on or
re-connected, the engine returns to the correct
speed to power the connected load.
In the Off position the system does not operate.
The economy system also helps in fuel economy
and reduced noise levels when under no load
conditions.
When a load is connected to the generator, the
generator speed will automatically adjust in
order to supply enough power.
Appliances with large start-up power demands
may not allow the engine to reach normal
operating speed when they are connected to the
generator. Turn the economy switch to the Off
position and connect the appliance to the
generator. If the engine still will not reach normal
operating speed, check that the appliance does
not exceed the rated load capacity of the
generator.
Stopping The Generator Engine
Before stopping the engine make sure that all
the electrical loads are disconnected from the
generator AC outlet socket. Turn the generator
On/Off switch to the Off position, Fig 12.
Close the fuel filler cap vent, Fig 13.
10
Fig 9
Fig 10
Fig 11
