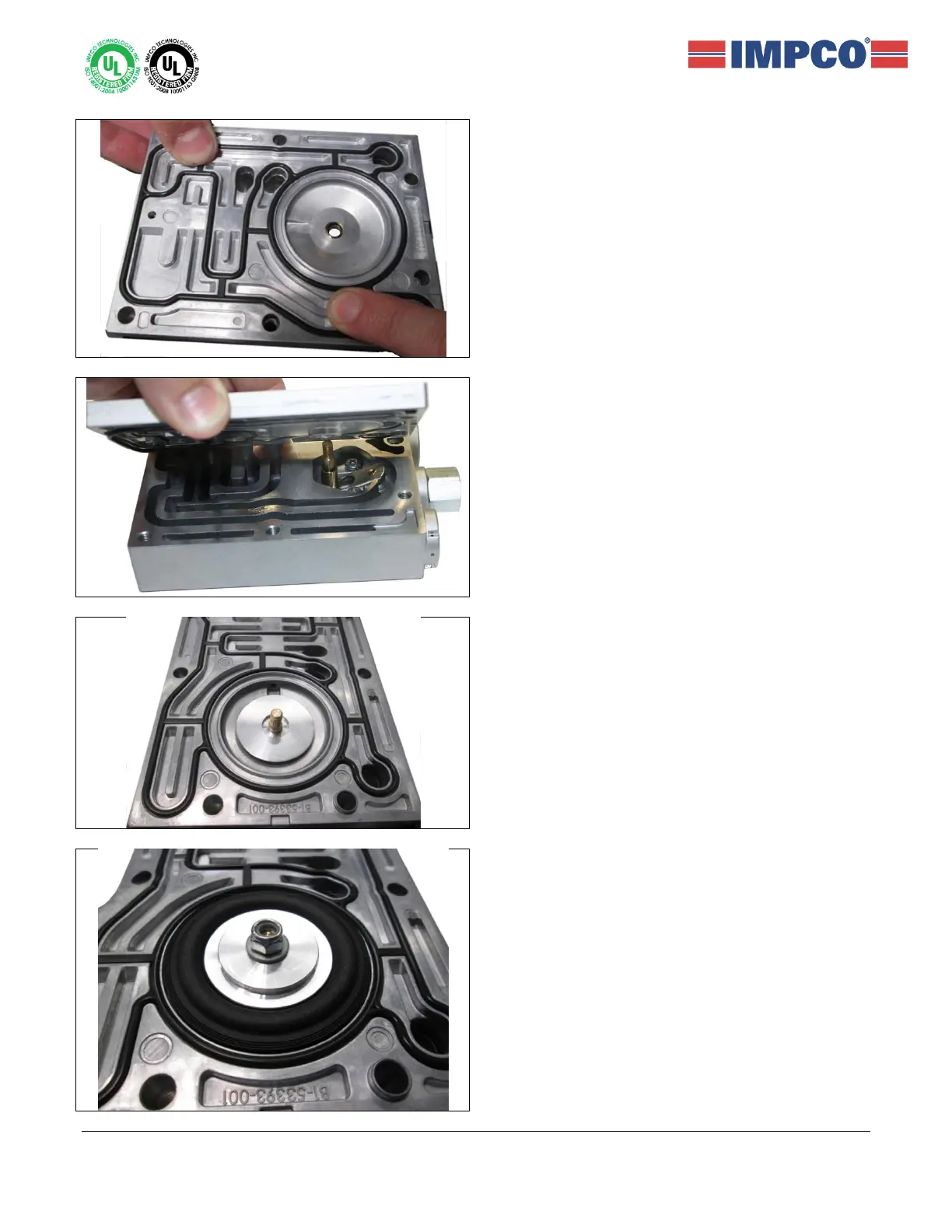

24. Lightly lubricate with petroleum jelly or Vaseline,
then place the Top Gasket (5) on the top of the
Center Body (3).
25. Place the Center Body (3) on the Lower Body (1)
inserting the Link Shaft (12) through the Center
Body.
26. Place the Bottom Diaphragm Plate (14)
downward (flat side up) over the threaded Link
Shaft (12)
27. Lightly lubricate the perimeter of the Diaphragm
(15) with petroleum jelly or Vaseline, then place
on top of the Center Body (3). Using your finger,
press on the perimeter of the Diaphragm to
ensure it properly seats into the Center body.
NOTE: The Diaphragm is positioned so the raised
outer ring or bag is up (as pictured).
Place the Plate (16) flat side down on top of the
Diaphragm. Place the Washer (17) concave side
down so its perimeter is in contact with the Plate.
Hand thread Nut (18) on Link Shaft (12).
