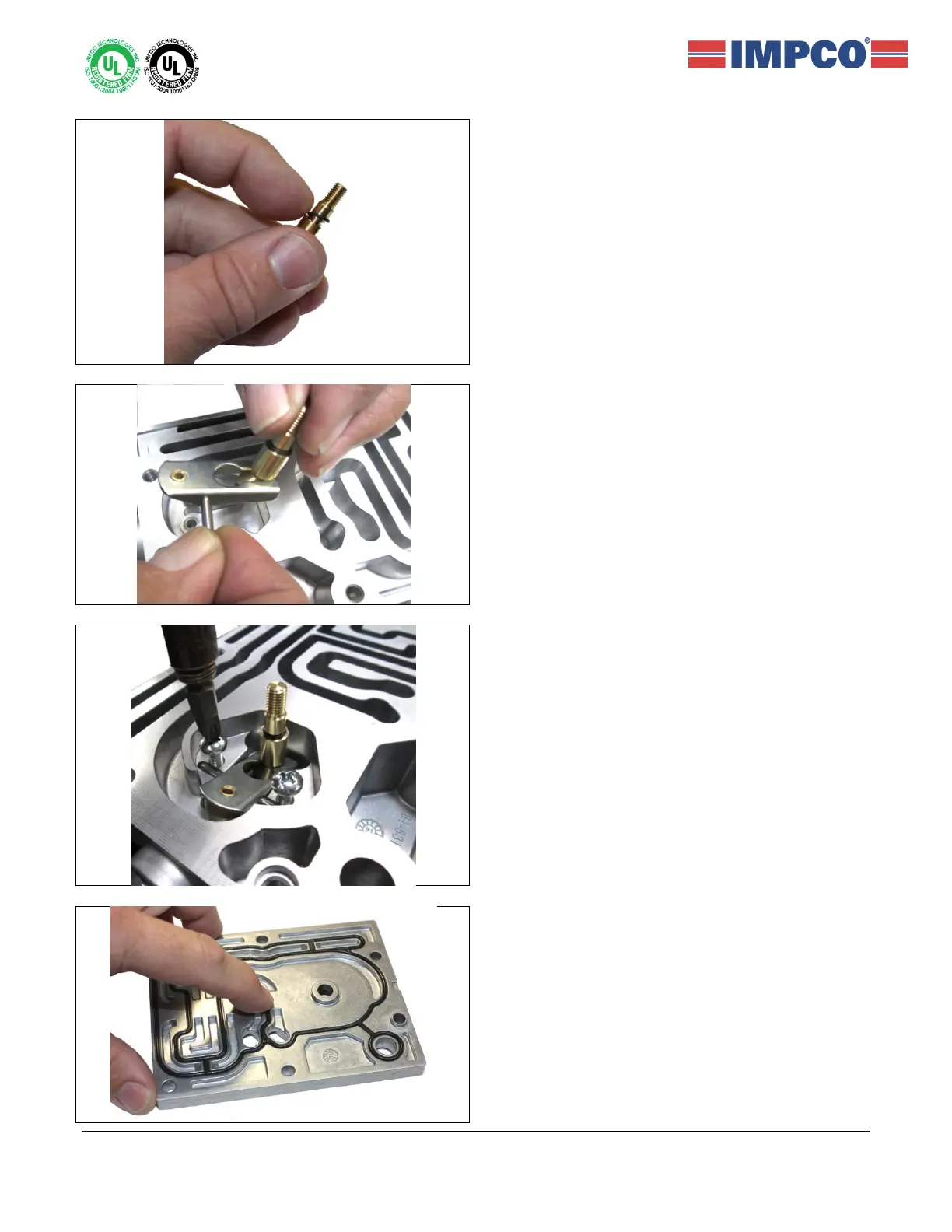

20. Slide the O-ring (13) on the Link Shaft (13).
21. Place the Link Shaft (12) through the hole in the
Lever (9) and slide to the end of the slot in the
Lever. Slide the Pin (10) into the Lever, then
place the assembly into the Lower Body (1).
22. Secure the Pin (10) with two Screws (11) and
torque to 1.7-2.3 Nm (15-20 in-lbs.).
23. Lightly lubricate with petroleum jelly or Vaseline,
then place the Bottom Gasket (2) on the Center
Body (3). Press firmly into the grove, ensuring
the Gasket isn’t twisted and properly seated.
