Carefully clean and inspect all metal parts, springs, levers, pivot pins and screws. Replace all parts
that are included in the repair kits.
Carefully clean the body casting and inspect all sealing surfaces. Wipe with a clean rag. Clear out the
inlet and outlet passages with compressed air. Be sure no foreign material remains in these passages.

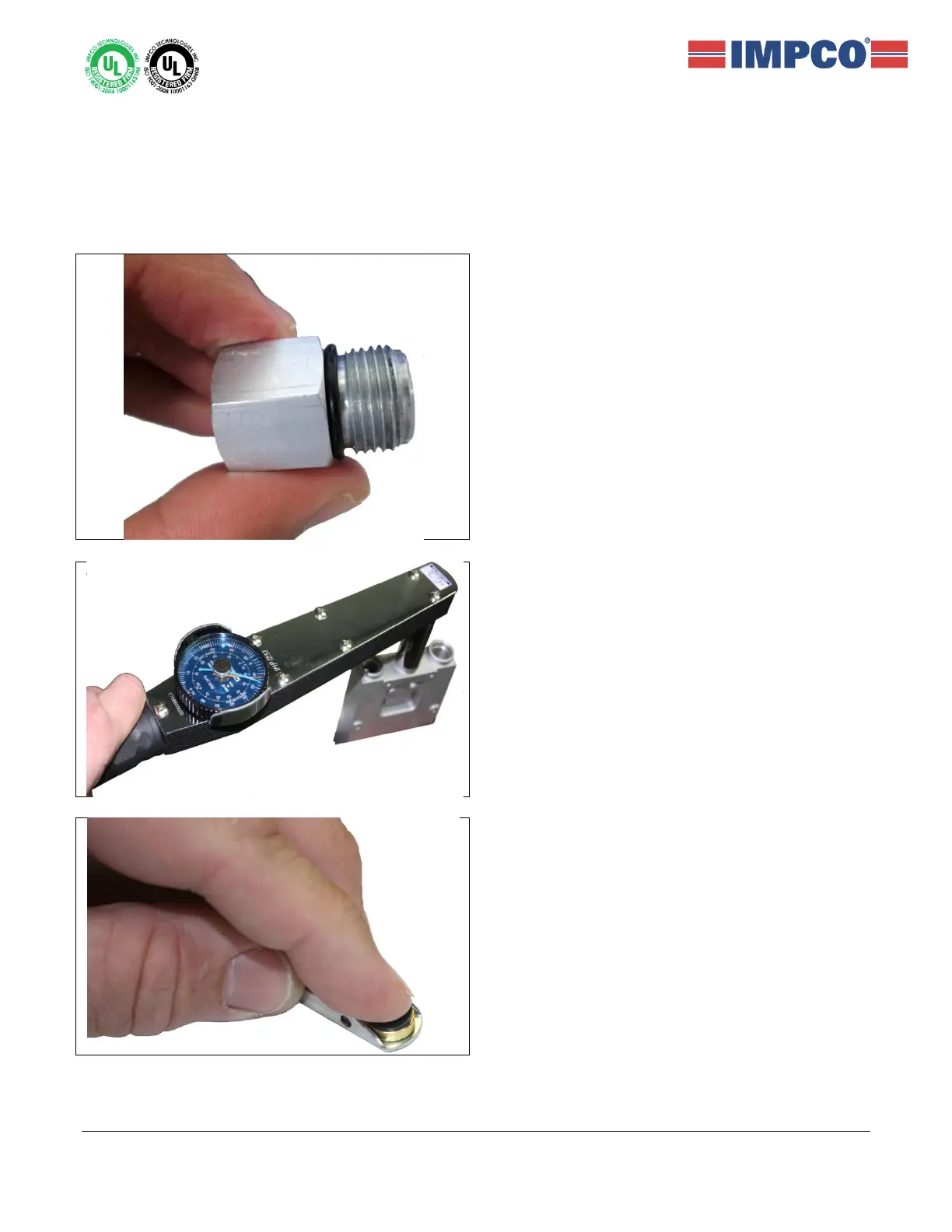

17. Lightly lubricate with petroleum jelly or Vaseline
and place the O-ring (34) on the Fuel Inlet Fitting
(32).
18. Install the LPG fuel fitting (32). Torque to 18-22
Nm (13.3-16.2 ft-lbs.).
19. Press the Seat (7) into the Holder (8), installed on
the Lever (9).
