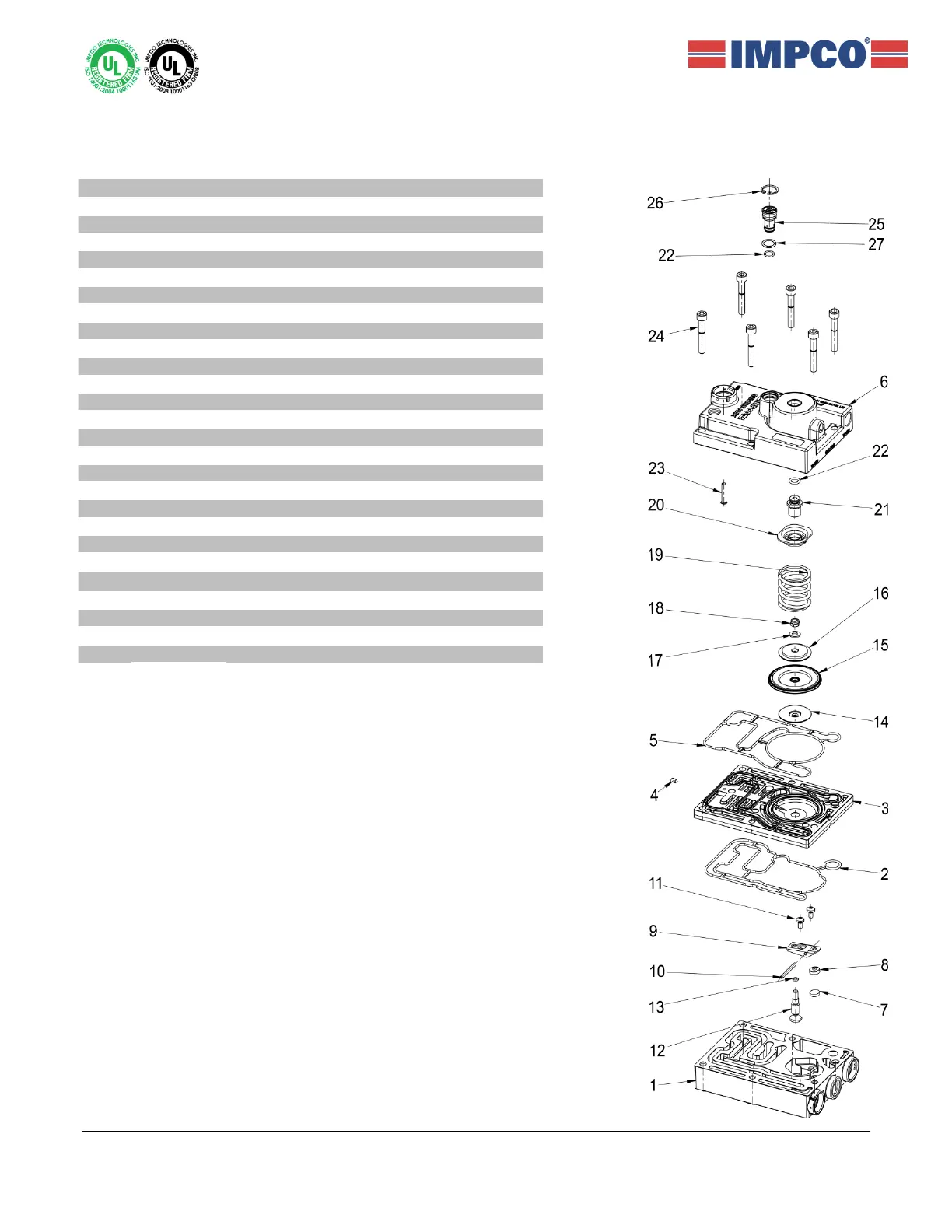

Genius Max Regulator (Internal Fittings)
See following page for External Fittings
ITEM # RK-GMAX
DESCRIPTION
1 -
Body, Lower, Genius Max Dc
2 -001, -002
Gasket, Bottom, Genius Max
3 -
Body, Center, Genius Max
4 -
Screw, Set M4x0.7x54mm
5 -001, -002
Gasket, Top, Genius Max
6
Body, Upper, Genius Max
7 -001, -002
Seat, Viton (80 Shore)
8 -
Holder, Seat, Genius Max
9 -
Lever, Genius Max
10 -
Pin, Steel, Ø3 X 30mm
11 -
Screw, Cross Head Pan M4 X 8mm (2)
12 -
Shaft, Link, Genius Max
13 -001, -002
O-Ring, Viton, Metric 1mm CS X 4mm ID
14 -
Plate, Diaphragm Bottom
15 -001, -002
Diaphragm, Genius Max
16 -
Plate, Top, Genius Max
17 -
Washer, Conical Spring, 5mm
18 -
Nut, Locking, M5
19 -
Spring, L48.5mm, O.D. 33.3mm, K11.8N/mm
20 -
Plate, Spring Load Adjustment
21 -
Screw, Adjustment
22 -001, -002
O-Ring, Fluorocarbon 0.070 Cs X 0.301 I.D. (2)
1
23 -
Tube, Outlet, Genius Max
24 -
Screw, Shcs Pthd m6 x 40 Class 8.8 Zinc (6)
25 -002
Valve Subasm, Genius Max (includes 22 & 27)
26 -001, -002
Ring, Retaining, Internal
27 -
O-Ring, Fluorocarbon 0.070 Cs X 0.426 I.D.
